1
Engine displacement
600
2
Year
1995
3
Trim
600 XCR - 0951676
4
Parts Catalog
FOX SHOCK
5
Parts Diagram
Parts Catalog
OIL TANK/AIR BOX 600 XCR 0951676 (4929132913C004)
by
FOX SHOCK
FOX SHOCK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
30
30
1
BUSHING SHOCK
5431727
9999999
Not Available
2
AIR VALVE ASSEMBLY
1500014
9999999
Not Available
3
SCREW
1500019
9999999
Not Available
4
CAM SHOCK
5630492
Not Available
5
RETAINER CAM
5630491
Not Available
6
BODY SHOCK
1500007
9999999
Not Available
7
BUSHING SHOCK .220
5431540
9999999
Not Available
8
BUSHING (1.34 IN.)
5020612
9999999
Not Available
9
O-RING BODY FOX .139W-1.234ID
1500004
9999999
Not Available
10
PISTON
1500011
9999999
Not Available
11
FLOATING PISTON RING
1500006
$34,64 Unit Price incl. VAT
12
O-RING ENDCAP
1500003
9999999
Not Available
13
PLATE BACKUP
1500015
9999999
Not Available
14
PISTON
1500010
Not Available
15
O-RING INNER
1500021
9999999
Not Available
16
WIPER INNER
1500025
1500266
$52,49 Unit Price incl. VAT
17
WIPER CLR OUTER
1500024
5433298
$23,09 Unit Price incl. VAT
18
SHAFT
1500008
Not Available
19
BUSHING 1.16 IN
5020613
9999999
Not Available
20
EYELET
1500013
9999999
Not Available
21
BUMPER
1500066
9999999
Not Available
22
BEARING
1500009
9999999
Not Available
23
O-RING; .103 X 1.299
1500020
9999999
Not Available
24
PLATE TOP OUT
1500017
9999999
Not Available
25
DAMPER; PISTON RING
1500002
9999999
Not Available
26
NUT LOCK
1500016
$23,09 Unit Price incl. VAT
27
O-RING DRUM OUTER
1500022
9999999
Not Available
28
SCREW
1500018
9999999
Not Available
29
O-RING OUTER
1500023
9999999
Not Available
30
SHOCKGASIFSIFPCAM
7041346
9999999
Not Available
30
CAP BODY
1500012
Not Available

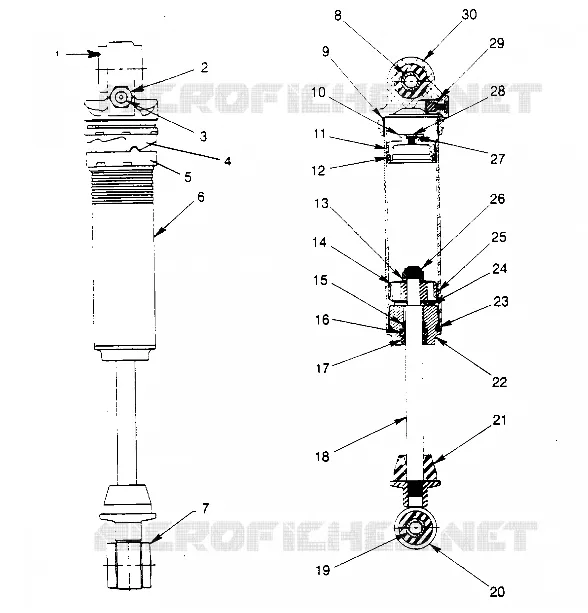

Find the detailed FOX SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
