1
Engine displacement
autre
2
Year
1993
3
Trim
STARLITE GT - 0933127
4
Parts Catalog
OIL PUMP ASSEMBLY STARLITE GT / 0933127 (4923232323035A)
5
Parts Diagram
Parts Catalog
CYLINDER LITE GT/0933133 (4923232323029A)
by
MAGNETO ASSEMBLY LITE GT / 0933133 (4923232323036A)
OIL PUMP ASSEMBLY STARLITE GT / 0933127 (4923232323035A)
1
HOSE CLAMP
3083141
$2,09 Unit Price incl. VAT
2
PIPE-RUBBER 3
3083140
9999999
Not Available
3
SCREW-AIR VENT
3083125
9999999
Not Available
4
PACKING(10)
3083126
9999999
Not Available
5
PUMP; OIL
3084317
9999999
Not Available
6
SPRING RETURN
3083427
Not Available
7
COLLAR CAMSHAFT(10)
3083445
9999999
Not Available
8
LEVER CONTROL
3084318
9999999
Not Available
9
WASHER-SPRING(10)
3083121
1205792
$614,24 Unit Price incl. VAT
10
NUT(10)
3083120
9999999
Not Available
11
ASM. SCREW & WASHER (10)
3083783
9999999
Not Available
12
O-RING
3083127
9999999
Not Available
13
SPACER 3.6MM
3083673
5141621
$8,39 Unit Price incl. VAT
13
SPACER 2.3 MM
3083672
5141620
$6,29 Unit Price incl. VAT
13
SPACER 1.15MM
3083671
5141619
$6,29 Unit Price incl. VAT
14
BUSHING
3083353
9999999
Not Available
15
GEAR SMALL
3083429
9999999
Not Available
16
SPACER
3083428
9999999
Not Available

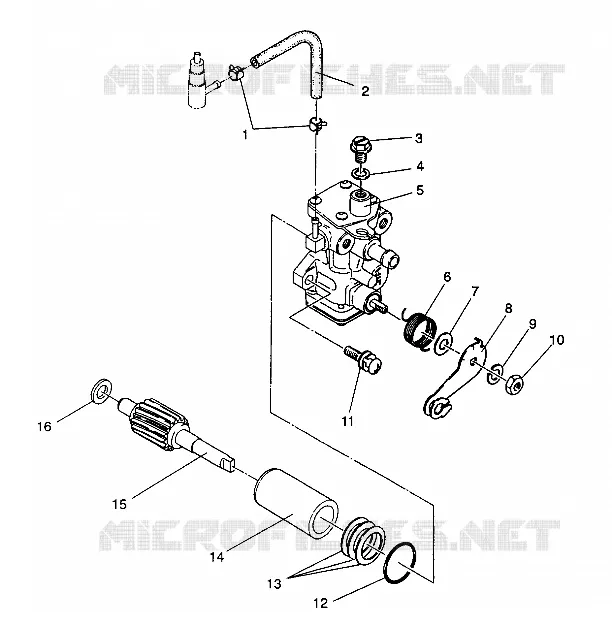

Find the detailed OIL PUMP ASSEMBLY STARLITE GT / 0933127 (4923232323035A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
