Engine displacement
570
2
Year
2016
3
Trim
SPORTSMAN 570 SP EPS, TRACTOR
4
Parts Catalog
ELECTRICAL, HARNESS
5
Parts Diagram
Parts Catalog
ELECTRICAL, GAUGES AND INDICATORS
by
EXHAUST
ELECTRICAL, HARNESS
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
HARNESS-MAIN SPMN TRACTOR 570
2413270
Not Available
1
FUSEBOX COVER
4015011
$115,49 Unit Price incl. VAT
2
FUSE PARK 20 AMP (10)
2434017
4012811
$15,74 Unit Price incl. VAT
3
RELAY-SPST SERIES 303 SEALED
4011283
4016819
$68,24 Unit Price incl. VAT
4
LABEL-FUSE BOX
7180530
9999999
Not Available
5
DIODE-6AMP 1/4 3/16 TERM
2411035
$104,99 Unit Price incl. VAT
6
FUSE 10 AMP
2434016
$10,49 Unit Price incl. VAT
7
DIAGNOSTIC COVER WITH CLIP
4012170
4083556
$15,00 Unit Price incl. VAT
8
10 AMP CIRCUT BREAKER
2410692
$52,49 Unit Price incl. VAT
9
DIODE-6 AMP
2410000
$73,49 Unit Price incl. VAT
10
FUSIBLE LINK KIT; 0.8 MM
2202607
$73,49 Unit Price incl. VAT
11
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
12
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
13
CLAMP-HOSE 1.312 VINYL COATED
7080851
9999999
Not Available
14
SCREW
7512084
$2,09 Unit Price incl. VAT
15
SCREW
7512025
$9,44 Unit Price incl. VAT
16
FUSE 5 AMP
4011652
9999999
Not Available
17
MAIN FUSE; 30 AMP
2434015
$15,74 Unit Price incl. VAT
18
WELD-SEAT ADJUST M.BLK
1017077458
Not Available
19
BOLT-5/16-18X1-3/4 HXFLNG GR5
7518341
$9,44 Unit Price incl. VAT
20
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT

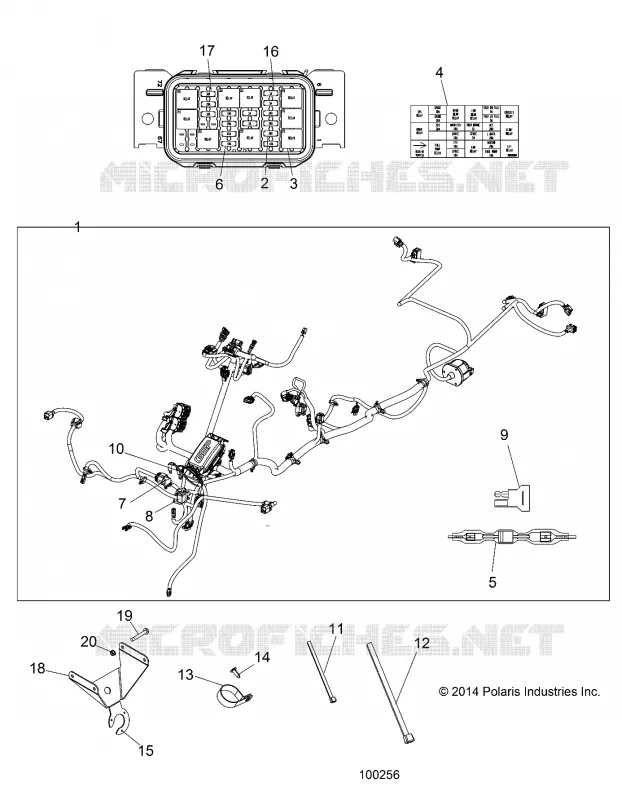

Find the detailed ELECTRICAL, HARNESS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
