1
Engine displacement
300
2
Year
1999
3
Trim
XPLORER 300 - A99CC28CA
4
Parts Catalog
GEARCASE/BRAKE AND CHAIN COVER MOUNTING
5
Parts Diagram
Parts Catalog
CLUTCH COVER
by
GEARCASE
GEARCASE/BRAKE AND CHAIN COVER MOUNTING
1
2
2
3
4
5
6
10
8
8
9
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
1
BOLT
7515345
9999999
Not Available
2
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
3
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
4
DECAL BRAKE SHIELD
7075339
Not Available
5
SHIELD R.CALIPER BLK.
5241018067
Not Available
6
CALIPER ASMR.BRAKE
1910226
9999999
Not Available
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
9
BOLT
7515522
$7,34 Unit Price incl. VAT
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
KIT RELUBE BEARING
2201115
9999999
Not Available
12
WASHER FLAT
7555701
$7,34 Unit Price incl. VAT
13
BOLT
7515321
9999999
Not Available
14
SPROCKET; 11 TOOTH
3221058
9999999
Not Available
15
RING RETAINING
7710433
9999999
Not Available
16
DISC ASMBRAKE
1910177
9999999
Not Available
17
NUT FLANGE LOCK
7542449
$7,34 Unit Price incl. VAT
18
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
19
BOLT CARRIAGE
7515484
9999999
Not Available
20
SNAP RING
7710434
$7,34 Unit Price incl. VAT
21
SPROCKET; 13 TOOTH
3221041
$83,99 Unit Price incl. VAT
22
NUT LOCK
7542403
9999999
Not Available
23
BOLT
7515472
$4,19 Unit Price incl. VAT
24
NUT
7542404
$3,14 Unit Price incl. VAT
25
BOLT
7515485
9999999
Not Available
26
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
27
BRAKE SEAL
3610062
9999999
Not Available
28
NEEDLE BEARING
3554202
9999999
Not Available
29
HSG BRNG O/P SHAFT
5131643
9999999
Not Available

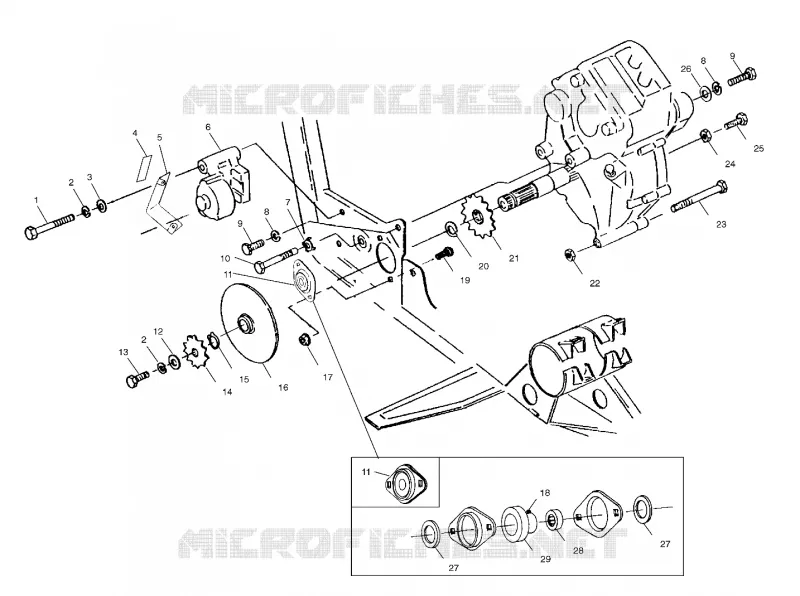

Find the detailed GEARCASE/BRAKE AND CHAIN COVER MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
