Engine displacement
330
2
Year
2005
3
Trim
ATP 330 4X4 - A05JD32AA
4
Parts Catalog
CRANKSHAFT AND PISTON
5
Parts Diagram
Parts Catalog
CYLINDER
by
TAILGATE
CRANKSHAFT AND PISTON
1
1
1
2
2
2
3
4
4
5
5
6
6
7
8
8
9
9
9
9
10
11
12
13
14
15
15
15
15
15
15
16
1
1
1
2
2
2
2
2
2
3
3
3
3
3
3
4
4
5
5
5
5
6
7
7
8
8
9
9
10
11
12
13
14
15
15
16
1
STANDARD PISTON RING SET
3087244
9999999
Not Available
1
PISTON RING SET .010 IN
3087245
9999999
Not Available
1
PISTON RING SET; .020 IN
3087246
9999999
Not Available
2
SET PISTON .010/.25MM O/S
3088820
9999999
Not Available
2
SET PISTON .020/.50MM O/S
3087243
9999999
Not Available
2
SET PISTON STANDARD
3087241
9999999
Not Available
3
PIN-PISTON
3086846
9999999
Not Available
4
PISTON PIN CLIP
3084167
2207579
$356,99 Unit Price incl. VAT
5
BOLT CONNECTING ROD
3087240
9999999
Not Available
6
CONNECTING ROD ASSEMBLY
3087239
9999999
Not Available
7
CRANKSHAFT ASSEMBLY
3087051
9999999
Not Available
8
KEY; WOODRUFF
3240168
9999999
Not Available
9
SPACER 0.4
3086434
9999999
Not Available
9
SPACER 1.0
3086437
9999999
Not Available
9
SPACER 0.8
3086436
9999999
Not Available
9
SPACER 0.6
3086435
9999999
Not Available
10
SPROCKET
3086492
9999999
Not Available
11
SLIT NUT
3085528
9999999
Not Available
12
WASHER
3086767
9999999
Not Available
13
LOCK NUT
3083905
9999999
Not Available
14
NUT
3086426
9999999
Not Available
15
BEARING STANDARD
3086427
9999999
Not Available
15
BEARING .25 O/S
3086799
9999999
Not Available
15
BEARING 0.05 MM
3086798
9999999
Not Available
16
BALL BEARING
3085815
9999999
Not Available

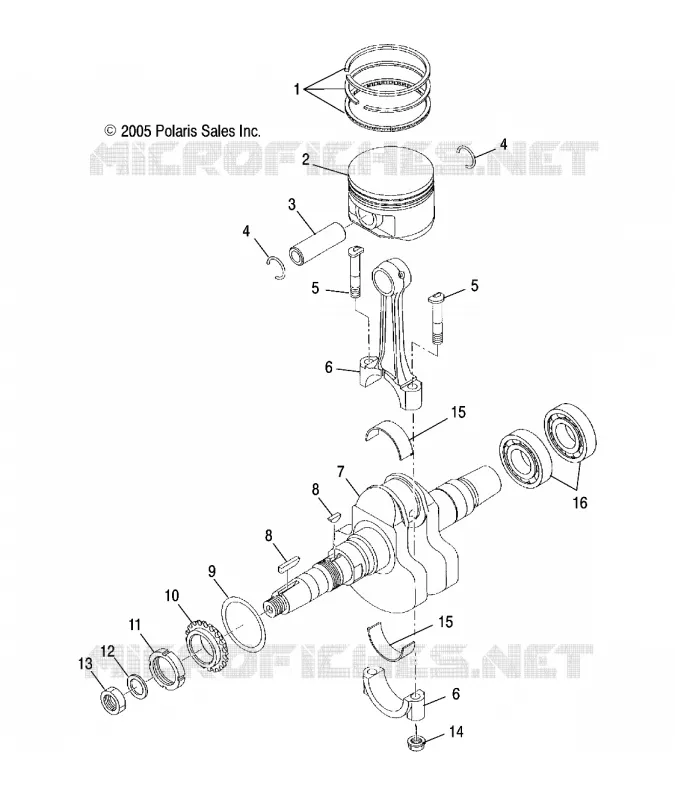

Find the detailed CRANKSHAFT AND PISTON POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
