ENGINE MOUNTING RXL/0930768 AND RXL SKS/0930568 (4922992299025A)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH ASSEMBLY RXL/0930768 AND RXL SKS/0930568 (4922992299024A)
by
EXHAUST SYSTEM RXL / 0930768 AND RXL SKS / 0930568 (4922992299026A)
ENGINE MOUNTING RXL/0930768 AND RXL SKS/0930568 (4922992299025A)
1
BOLT
7512565
9999999
Not Available
2
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
3
WASHER CLUTCH RETAINER
5010278
5010287
$18,89 Unit Price incl. VAT
4
SPARK PLUG
3070165
$7,34 Unit Price incl. VAT
5
ENG.EC65PL-05 Substituted by 3084627
1211519
Not Available
6
CABLE BATT.-GND.
4010087
Not Available
7
HANDLE-RECOIL
5430520
Not Available
8
SCREW
7512530
$10,49 Unit Price incl. VAT
9
WASHER
7555740
$3,14 Unit Price incl. VAT
10
MOUNT ENGINE
5410390
9999999
Not Available
11
SPACER (MTR.MT.)
5332778
9999999
Not Available
12
WASHER
7555817
9999999
Not Available
13
FLEX LOC NUT
7542507
9999999
Not Available
14
PLATE ENG. RH
5220705
9999999
Not Available
15
PLATE ENG. LH
5220704
Not Available
16
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
17
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
18
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
19
BOLT
7512539
$7,34 Unit Price incl. VAT
20
WASHER
7555721
$2,09 Unit Price incl. VAT
21
MOUNT
3110022
9999999
Not Available
22
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
23
NUT JAM
7542432
$7,34 Unit Price incl. VAT
24
LIMITER
1011503067
Not Available
25
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
26
STOP
3110023
9999999
Not Available
27
CLAMP HOSE(SCREW TYPE)
7080417
$17,84 Unit Price incl. VAT
28
FUEL LINE
8450045
8450123-153
$157,49 Unit Price incl. VAT
29
FUEL LINE;(HI-PRESS.)
8450044
8450123-153
$157,49 Unit Price incl. VAT
30
CLIP BAND (A.T.S.)
3084111
Not Available
31
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
32
CABLE;THROTTLE
7080403
9999999
Not Available
33
LINE FUEL GOODYEAR 1/4SAE#30R
8450040
8450040-600
$136,49 Unit Price incl. VAT
34
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
35
FUEL FILTER
2530008
9999999
Not Available

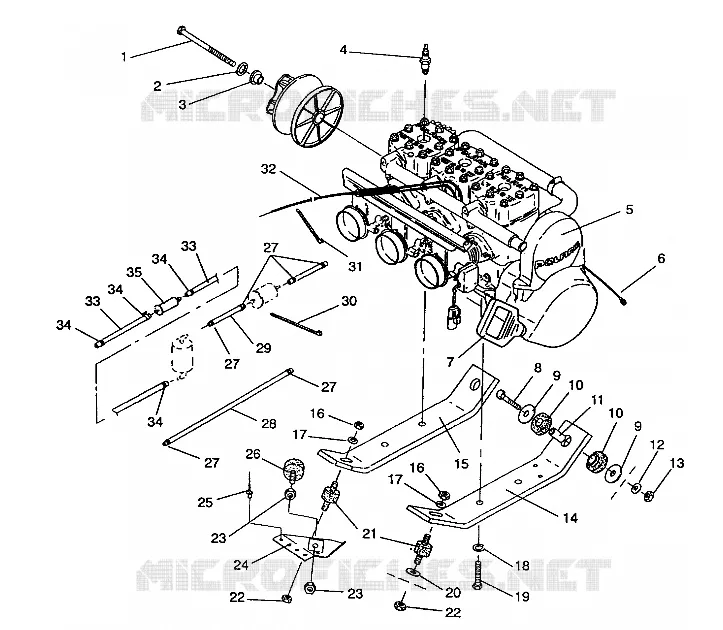

Find the detailed ENGINE MOUNTING RXL/0930768 AND RXL SKS/0930568 (4922992299025A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
