CARBURETOR 500 AND 500 CLASSIC (4915411541056A)
1
CARB. ASM. (Incl. 2-37)
3130389
Not Available
2
TOP (Incl. 3)
3130061
Not Available
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
SPRING THROTTLE
3130334
9999999
Not Available
5
PLATE THROTTLE
3130054
9999999
Not Available
6
E RING
3130003
3130508
$12,59 Unit Price incl. VAT
7
NEEDLE JET (6F9-3)
3130378
9999999
Not Available
8
VALVETHROTTLE(3.0)
3130352
9999999
Not Available
9
JETNEEDLE(Q-0)
3130414
9999999
Not Available
10
GUIDE HOLDER
3130199
$52,49 Unit Price incl. VAT
11
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
12
PLUNGER ASSEMBLY
3130328
$68,24 Unit Price incl. VAT
13
SCREW THROTTLE STOP
3130009
9999999
Not Available
14
SPRING
3130010
$18,89 Unit Price incl. VAT
15
SCREW AIR Substituted by 3130011
3130233
Not Available
16
SPRING AIR ADJUST
3130012
9999999
Not Available
17
JET PILOT #40(10)
3130067
9999999
Not Available
18
WASHER
3130047
$9,44 Unit Price incl. VAT
19
PLATE
3130243
9999999
Not Available
20
VALVE ASMNEEDLE
3130046
9999999
Not Available
21
RING CARB
3130232
9999999
Not Available
22
DESC NOT_AVAILABLE
308l868
Not Available
23
ARM FLOAT
3130048
9999999
Not Available
24
FLOAT PIN
3130240
3130361
$18,89 Unit Price incl. VAT
25
FLOAT CHAMBER GASKET
3130236
$20,99 Unit Price incl. VAT
26
FLOAT ASSEMBLY
3130021
$83,99 Unit Price incl. VAT
27
CAP
3130237
$8,39 Unit Price incl. VAT
28
O-RING
3130239
9999999
Not Available
29
NIPPLE
3130387
9999999
Not Available
30
HEX HEAD MAIN JET #280
3130131
9999999
Not Available
31
SCREW
3130056
9999999
Not Available
32
PLATE
3130242
Not Available
33
CAP VACUUM FIT
3130379
9999999
Not Available
34
FUEL LINE-50FT.PKG.
2870563
8450003-1525
$136,49 Unit Price incl. VAT
35
HOSE CLAMP
7080236
$3,14 Unit Price incl. VAT
36
CLAMP PUSH-IN(10) [No Longer Available]
7080343
Not Available
37
DESC NOT_AVAILABLE
76619l2
Not Available
37
RIVET; (PLUG)(50)
7661912
9999999
Not Available

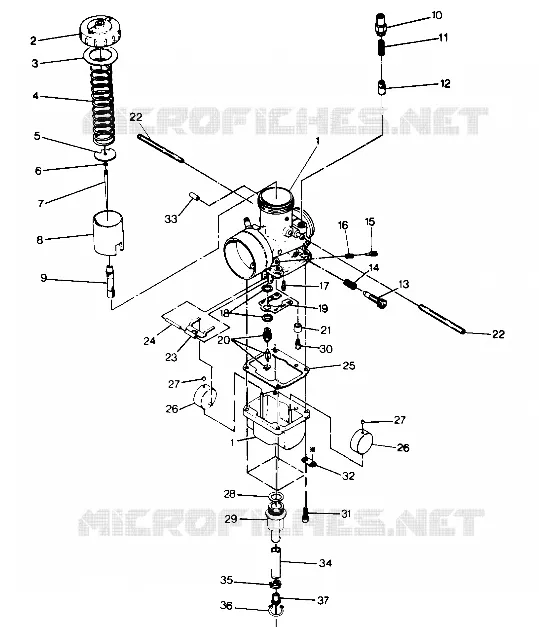

Find the detailed CARBURETOR 500 AND 500 CLASSIC (4915411541056A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

OTHERS autre 1989
