WIRE HARNESS for POLARIS RANGER 1000 BACK COUNTRY 49S from 2019

WIRE HARNESS

1

HARNESS-CHASSIS EPS BC

2414967

9999999

Not Available

2

FUSE PARK 20 AMP (10)

2434017

4012811

$15,74 Unit Price incl. VAT

3

DECAL-RELAY/FUSE BLOCK;LE;RC

7188652

9999999

Not Available

4

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

5

DART CLIP; PLASTIC

7670090

$2,09 Unit Price incl. VAT

6

DIAGNOSTIC COVER WITH CLIP

4012170

4083556

$15,00 Unit Price incl. VAT

7

GROMMET-USB 3 MM 22 MM DIA

5415308

$7,34 Unit Price incl. VAT

8

SEALED CIRCUT BREAKER; 20 AMP

2410881

$141,74 Unit Price incl. VAT

9

FUSE BOX RELAY

4016819

$68,24 Unit Price incl. VAT

10

65 MM GROMMET WITH FLANGE; BLACK

5814560

$24,14 Unit Price incl. VAT

11

FUSE 10 AMP

2434016

$10,49 Unit Price incl. VAT

12

MAIN FUSE; 30 AMP

2434015

$15,74 Unit Price incl. VAT

13

HARNESS CLIP EDGE

7081890

$19,94 Unit Price incl. VAT

14

COVER-FUSEHOLDER

4012260

$19,94 Unit Price incl. VAT

15

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

16

REGULATOR

4012941

$451,49 Unit Price incl. VAT

17

SCR-TFHFL-M6X1.0X25 ZY3

7520715

$7,34 Unit Price incl. VAT

18

COIL-EFI

4010425

2876049

$451,49 Unit Price incl. VAT

19

BOLT-M6X1.0X35 HXFLG/SH-OLV D

7518612

$9,44 Unit Price incl. VAT

20

BRKT-COIL MOUNT

5263891

$19,94 Unit Price incl. VAT

21

COIL MOUNT SPACER

5436577

$7,34 Unit Price incl. VAT

22

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

23

GROMMET-HOOD LINER

5416372

9999999

Not Available

24

SCR-M6X1.0X40 HX/SOC/CP-B

7518780

$7,34 Unit Price incl. VAT

25

NYLOCK FLANGE NUT; 6 MM

7547274

7548027

$3,14 Unit Price incl. VAT

26

COVER TB JCASE

5454284

$62,99 Unit Price incl. VAT

26

PLUG ACCY TB

5454283

$83,99 Unit Price incl. VAT

26

BLOCK-TERMINAL 6 POS

4016007

$68,24 Unit Price incl. VAT

26

CARTRIDGE FUSE

4013891

$68,24 Unit Price incl. VAT

27

FUSE-MINI BLADE;15 AMP

2410280

4010859

$15,74 Unit Price incl. VAT

28

MOUNT BRACKET; REG

5263643

$73,49 Unit Price incl. VAT

29

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

30

NO START ELECTRIC CONTROL MODULE (ECM)

4014125

$1 123,49 Unit Price incl. VAT

31

SCR-#10X1/2-HI/LO-PN-T25 TRX-M

7519091

$6,29 Unit Price incl. VAT

32

BOX HARNESS;

2414296

$125,99 Unit Price incl. VAT

33

RELAY SOLID STATE 9A

4012829

4081742

$141,74 Unit Price incl. VAT

34

BRKT-ROUTING BLK

5268050329

Not Available

35

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

36

BRKT-FUSE BLOCK;MNT;BLK

5264801329

Not Available

37

MOUNT BRACKET; REG

5267612

$31,49 Unit Price incl. VAT

38

BRKT-HARNESS ROUTING

5264314

$23,09 Unit Price incl. VAT

39

CLIP-EDGE 3-6MM THICKNESS

7082404

$17,84 Unit Price incl. VAT

40

EDGE CLIP; 1 MM - 3 MM

7082403

$9,44 Unit Price incl. VAT

41

CAP BLACK 125 X 375 VINYL

5438230

$10,49 Unit Price incl. VAT

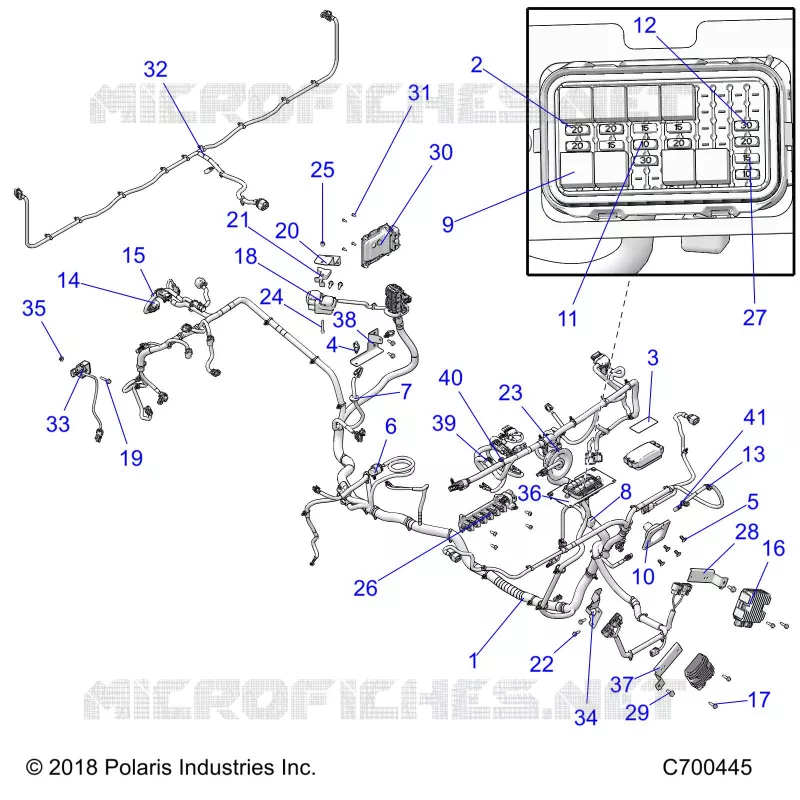

Find the detailed WIRE HARNESS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
