FRONT WISHBONES for POLARIS 600 PRO RMK 155 from 2013

FRONT WISHBONES

1

WHEEL STUD; 8 MM X 1.25 MM X 48

7519204

$36,74 Unit Price incl. VAT

2

PIVOT SHAFT

5137700

$68,24 Unit Price incl. VAT

3

PIVOT BUSHING

5437539

$4,19 Unit Price incl. VAT

4

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

5

KIT-UCA MY11RMK STD/PRO RH MBL

2204298458

Not Available

5

CONTROL ARM KIT; UPPER; LEFT; RMK

2204297458

Not Available

6

NUT-HXFL M12X1.5 ZOD

7547490

$7,34 Unit Price incl. VAT

7

SOCKET HEAD SCREW 10 MM X 1.5 MM X 45 MM

7519246

$7,34 Unit Price incl. VAT

8

ROD END; M12 X 2.812 30 DEG

7061178

9999999

Not Available

9

SPINDLE ASSEMBLY; RIGHT; RMK

1823741

9999999

Not Available

9

SPINDLE ASSEMBLY; LEFT; RMK

1823740

9999999

Not Available

10

SKI PIVOT BUSHING

5438460

$27,29 Unit Price incl. VAT

11

SCR-M10X1.5X75 10.9 HCS ZOD

7519015

$10,49 Unit Price incl. VAT

12

WASHER 10.5 X 24 X 1.2446

7556545

$6,29 Unit Price incl. VAT

13

SPHERICAL BEARING KIT; 10 MM

2204229

$54,59 Unit Price incl. VAT

14

RING-RETAINING 1.25 ID HSNG

7710539

$4,19 Unit Price incl. VAT

15

KIT-LCA MY13 RMK PRORHBLK

2204933458

Not Available

15

KIT-LCA MY13 RMK PROLHBLK

2204932458

Not Available

16

HEX FLANGE SCREW; 10 MM X 1.5 MM X 95 MM

7518917

$9,44 Unit Price incl. VAT

17

CONTROL ARM PIVOT SHAFT; FRONT; LOWER

5137701

9999999

Not Available

18

BUSHING 15.88 X 10.13 X 76.20

5136910

$13,64 Unit Price incl. VAT

19

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

20

WAVE WASHER

7571605

$11,54 Unit Price incl. VAT

21

NUT-HXFL M12X1.5 ZOD

7547490

$7,34 Unit Price incl. VAT

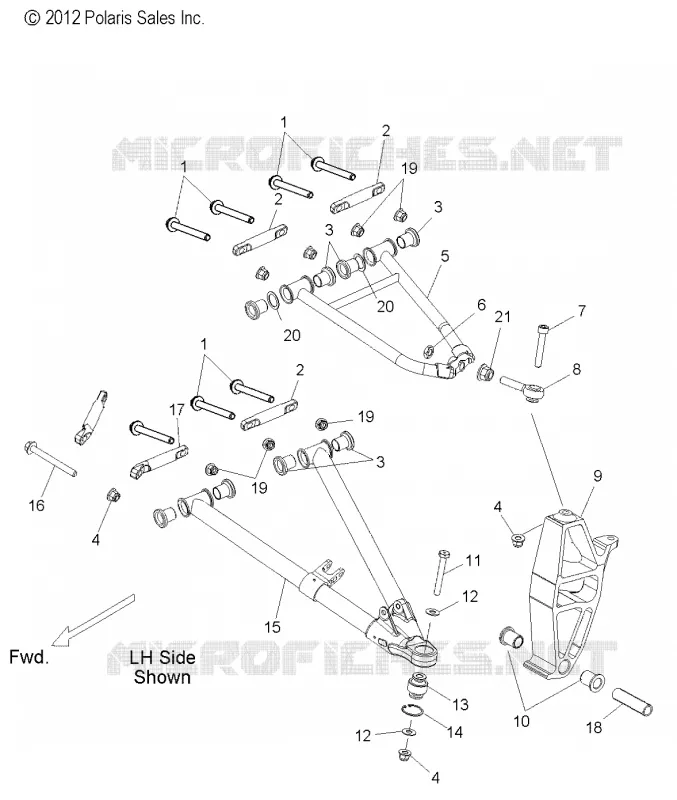

Find the detailed FRONT WISHBONES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
