SUSPENSION, SHOCK, IFS W/RESERVOIR
-
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
36
-
PIGGYBACK NEEDLE IFS SHOCK; WALKER EVANS
7044343
9999999
Not Available
1
SEAL HEAD ASSEMBLY
1800414
9999999
Not Available
2
LOOP; SHAFT;.625 THD (1000660)
1800422
9999999
Not Available
3
LOOP; BODY;PB;2 (1000148)
1800424
$661,49 Unit Price incl. VAT
4
BODY SHOCK IFS 9.295L 1400121
1800652
$283,49 Unit Price incl. VAT
5
SHAFT; NEEDLE; IFS (1000110)
1800423
9999999
Not Available
6
SPRING RETAINER
1800046
$68,24 Unit Price incl. VAT
7
END BEARING
1800040
$152,24 Unit Price incl. VAT
8
STUD; CLICKER (400613)
1800352
$57,74 Unit Price incl. VAT
9
KNOB; CLICKER BLACK
1800418
$173,24 Unit Price incl. VAT
10
BODY RES 3.75L BLK(1020334)
1800419
9999999
Not Available
11
ASM IFP PISTON 1.75BLD 0624204
1800739
$68,24 Unit Price incl. VAT
12
ASM END CAP 1.750AV 1024207
1800740
9999999
Not Available
13
SLEEVE; 1.15L
1800405
$62,99 Unit Price incl. VAT
14
BUSHING
1800406
$9,44 Unit Price incl. VAT
15
BOLT; NEEDLE (600154)
1800302
9999999
Not Available
16
NEEDLE 2.25 (100114)
1800300
9999999
Not Available
17
CRIMP NUT 3/8 IN
1800031
$7,34 Unit Price incl. VAT
18
RING-SNAP
1800159
$10,49 Unit Price incl. VAT
19
SCREW 10X5/8 BTN SS (500603)
1800357
$6,29 Unit Price incl. VAT
20
O-RING (WER-400614)
1800501
$13,64 Unit Price incl. VAT
21
BODY O-RING
1800030
$3,66 Unit Price incl. VAT
22
ASM. CLICKER PISTON 943602
1800746
9999999
Not Available
23
SNAP RING CLICKER
1800359
$6,29 Unit Price incl. VAT
24
O-RING CLICKER HSG (900605)
1800358
9999999
Not Available
25
BALL-D-TENT(10)
1800127
$12,59 Unit Price incl. VAT
26
SPRING-D-TENT(10)
1800128
$20,99 Unit Price incl. VAT
27
SCREW-BLEED W/O RING
1800074
9999999
Not Available
28
END CAP SNAP RING
1800041
$15,74 Unit Price incl. VAT
29
O-RING
1800184
$10,49 Unit Price incl. VAT
30
SPRING RETAINING RING
1800116
$120,74 Unit Price incl. VAT
31
JAM NUT
1800465
$99,74 Unit Price incl. VAT
32
PISTON CONVEX
1800001
9999999
Not Available
33
WASHER
1800204
9999999
Not Available
34
TEFLON WEAR BAND
1800297
$62,99 Unit Price incl. VAT
35
O-RING BODY
1800027
$3,66 Unit Price incl. VAT
36
SPRG-COMP.343X11.0 130# GLD
7043679703
Not Available
36
CMPRSSN SPNG 130 .343 X 11.0 MT BLK
7043679458
Not Available

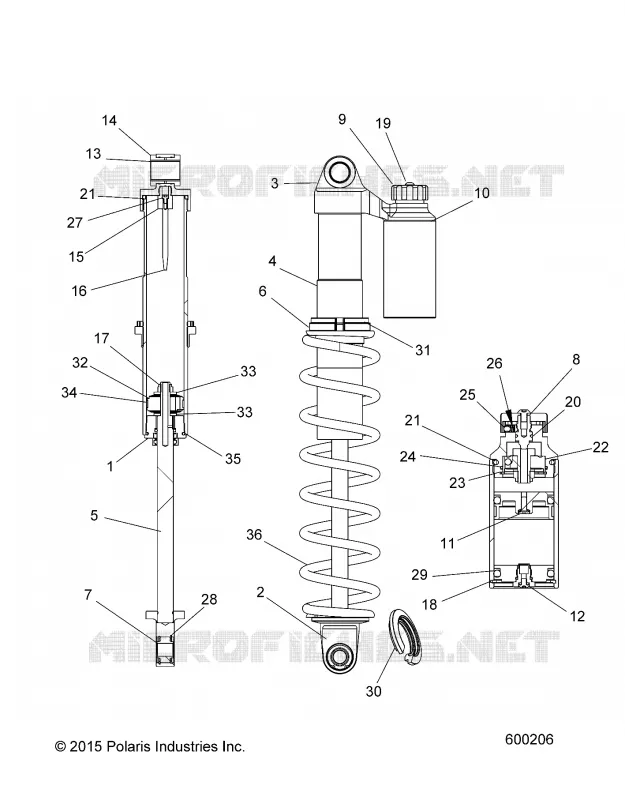

Find the detailed SUSPENSION, SHOCK, IFS W/RESERVOIR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

800 RMK ASSAULT 155 800 2019
