Engine displacement
330
2
Year
2005
3
Trim
MAGNUM 330 4X4 - A05CD32AA
4
Parts Catalog
TRANSMISSION MOUNTING
5
Parts Diagram
Parts Catalog
SWING ARM/REAR/GEARCASE MOUNTING
by
FRONT STRUT
TRANSMISSION MOUNTING
-
1
1
2
2
2
2
3
4
5
6
7
8
9
10
10
11
12
12
13
13
14
14
15
-
-
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
1
SCREW
7515417
9999999
Not Available
2
NUT
7547108
$9,44 Unit Price incl. VAT
3
FITTING TEE
7052075
$17,84 Unit Price incl. VAT
4
CLAMP HOSE NYLON (10)
7080693
$10,49 Unit Price incl. VAT
5
SCREW
7512024
$9,44 Unit Price incl. VAT
6
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
7
FUEL LINE; 1/4 ID
84500031525
Not Available
8
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
9
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
10
WASHER FLAT
7555976
$7,34 Unit Price incl. VAT
11
MOUNT-TRANSMISSION REAR;PLTD
5247343
9999999
Not Available
12
SCREW
7517289
9999999
Not Available
13
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
14
BOLT
7515522
$7,34 Unit Price incl. VAT
15
MOUNT TRANSMISSION BLK
5242820067
Not Available
16
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available

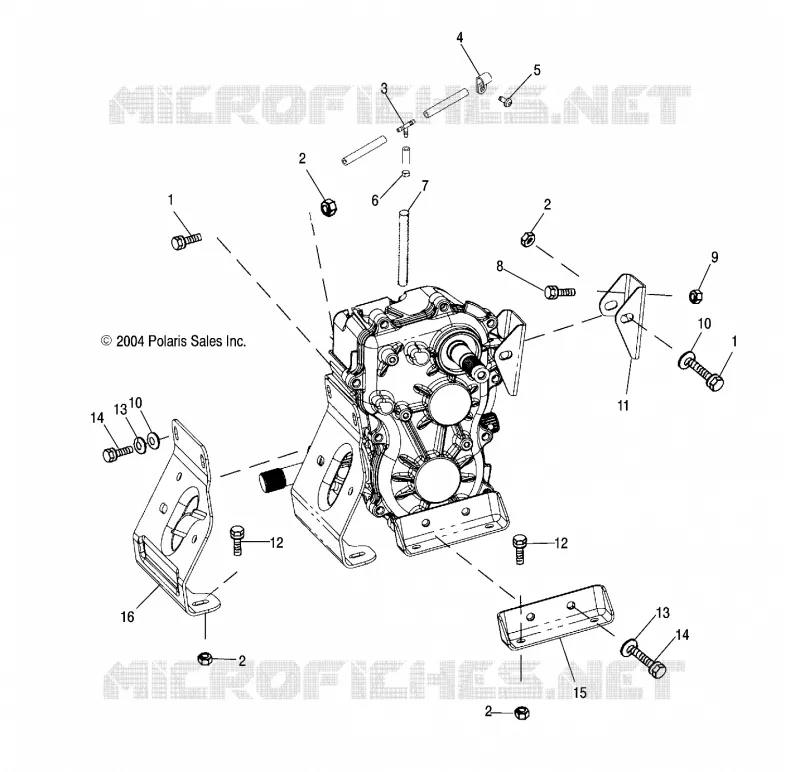

Find the detailed TRANSMISSION MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
