DRIVE TRAIN, CLUTCH COVER AND DUCTING for POLARIS RANGER 1000 BACK COUNTRY 49S from 2019

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, CLUTCH COVER AND DUCTING

1

CLUTCH COVER SEAL; OUTER

5416207

$68,24 Unit Price incl. VAT

2

BOLT-M6X1.0X20 PH/TX-OLIVE D

7518616

$2,09 Unit Price incl. VAT

3

SPACER-7IDX19ODX22 NYL BLK

7557156

$41,99 Unit Price incl. VAT

4

INNER CLUTCH COVER

5142591

$414,74 Unit Price incl. VAT

5

TRANSJOINT BRACKET; MAG; MACHINED

5139822

5144809

$89,24 Unit Price incl. VAT

6

DUCT-LWR INTAKE;CLUTCH;MUD

5416893

$104,99 Unit Price incl. VAT

7

CLUTCH OUTLET DUCT; LOWER

5416894

$141,74 Unit Price incl. VAT

8

WORM DRIVE CLAMP

7081626

$14,69 Unit Price incl. VAT

9

PLATE-INLET CLUTCH DUCT SEAL

5634221

$68,24 Unit Price incl. VAT

10

CLUTCH COVER ASSEMBLY; OUTER

2637066

$351,74 Unit Price incl. VAT

10

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

11

O-RING SEAL; .128 X 7.895

5415647

$3,14 Unit Price incl. VAT

12

DRAIN PLUG; 9/16-18

5454915

$10,49 Unit Price incl. VAT

13

O-RING; 2.25 X 2.625 X .21; FKM

5416417

$25,19 Unit Price incl. VAT

14

OUTLET DUCT MOUNT

5633826

5634514

$52,49 Unit Price incl. VAT

15

DECAL-BELT CAUTION/CHECK

7177469

Not Available

16

DUCT OUTLET CLUTCH; UPPER

5455356

$262,49 Unit Price incl. VAT

17

INTAKE CLUTCH DUCT; UPPER

5454369

$157,49 Unit Price incl. VAT

18

CLAMP-HOSE SLOTTED;75-90 DIA

7082314

$19,94 Unit Price incl. VAT

19

CLAMP-HOSE SLOTTED;89-100 DIA

7081969

$19,94 Unit Price incl. VAT

20

SCREW 6 MM X 1.0 MM X 25 MM

7519754

$7,34 Unit Price incl. VAT

21

HEX HEAD FLANGE BOLT; 10 MM X 45 MM

7518531

$9,44 Unit Price incl. VAT

22

SCR-TXBH-M12X1.75X110 8.8 SPC

7520945

$14,69 Unit Price incl. VAT

23

SCR-TXBH-M12X1.75X245 8.8 SPC

7520946

$25,19 Unit Price incl. VAT

24

SCR-TXBH-M10X1.5X45 8.8ZOD P30

7520323

$10,49 Unit Price incl. VAT

25

HEX FLANGE NUT; 12 MM X 1.75 MM

7547441

$9,44 Unit Price incl. VAT

26

WSHR FLAT INN DIA 10.5 OUT DIA

7556155

$9,44 Unit Price incl. VAT

27

O-RING 0.489 X 0.629 X 0.070

5416606

$6,81 Unit Price incl. VAT

28

INLET HOSE

5415215

$104,99 Unit Price incl. VAT

29

TOP INTAKE HOSE COVER;; GLOSS BLACK

5451616070

Not Available

30

INTAKE HOSE BOTTOM COVER; GLOSS BLACK

5451617070

Not Available

31

SCR-TXTH-M6X1.0X45 RIE

7519722

$3,14 Unit Price incl. VAT

32

SCR-TXPH-#10X1.0 ZPB HI/LO

7520164

$3,14 Unit Price incl. VAT

33

BOLT

7519650

$7,34 Unit Price incl. VAT

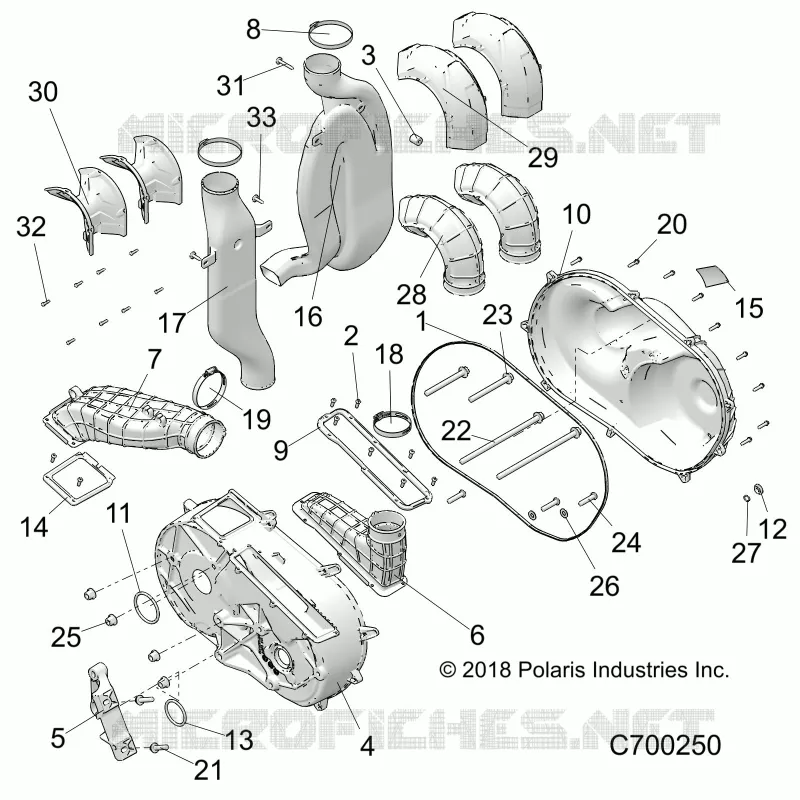

Find the detailed DRIVE TRAIN, CLUTCH COVER AND DUCTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
