Engine displacement
570
2
Year
2015
3
Trim
SPORTSMAN ACE 570 EFI
4
Parts Catalog
ENGINE, STATOR COVER AND FLYWHEEL
5
Parts Diagram
Parts Catalog
STARTER DRIVE
by
DRIVE TRAIN, PRIMARY CLUTCH
ENGINE, STATOR COVER AND FLYWHEEL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
2
3
4
5
6
7
1
WASHER-19X34X3 HARD
7556878
$7,34 Unit Price incl. VAT
2
CVR IGNITION KIT
2204736
$323,39 Unit Price incl. VAT
3
FLYWHEEL
4013969
$868,34 Unit Price incl. VAT
4
WATEPRUMP SHAFT BEARING
3514696
3515828
$17,63 Unit Price incl. VAT
5
WATER PUMP SHAFT SEAL
3610173
3610435
$30,44 Unit Price incl. VAT
6
STATOR
4013970
4015340
$519,74 Unit Price incl. VAT
7
PUMP DRIVER SHAFT
5138035
$73,49 Unit Price incl. VAT
8
GUIDE-STATOR LEAD
5254832
$15,74 Unit Price incl. VAT
9
TYPE S SEAL
5411197
$41,99 Unit Price incl. VAT
10
SCR-M6X1.0X40 HX/SOC/CP-Y/D
7510005
$9,44 Unit Price incl. VAT
11
SCR-M5X0.8X10 SOC/CP-D
7517847
$5,76 Unit Price incl. VAT
12
HEX FLANGE SCREW; 6 MM X 20 MM
7518576
$6,29 Unit Price incl. VAT
13
STATOR COVER GASKET
5414329
$41,99 Unit Price incl. VAT
14
HEX NUT JAM; RIGHT; 18 MM X 1.5 MM
7547488
$13,64 Unit Price incl. VAT

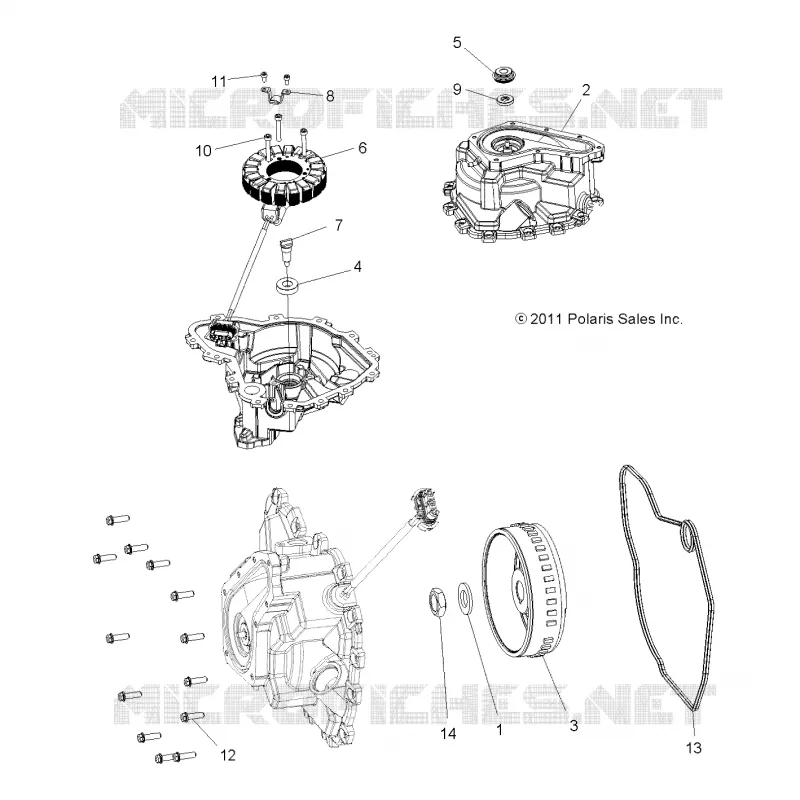

Find the detailed ENGINE, STATOR COVER AND FLYWHEEL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
