1
Engine displacement
570
2
Year
2015
3
Trim
SPORTSMAN 570 EFI X2 EPS EU
4
Parts Catalog
CLUTCH COVER
5
Parts Diagram
Parts Catalog
MIRRORS
by
FRONT STORAGE BOX
CLUTCH COVER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
12
12
17
18
19
1
2
3
4
5
6
6
7
8
9
10
11
11
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
12
17
1
CLUTCH COVER ASSEMBLY; INNER
2634896
$194,24 Unit Price incl. VAT
2
INNER CLUTCH COVER SEAL
5414727
$110,24 Unit Price incl. VAT
3
COVER-CLUTCH INNER SPMN BLK
5450209070
Not Available
4
CLUTCH COVER SEAL; OUTER
5521738
5526450
$78,74 Unit Price incl. VAT
5
TIE CABLE; 14 IN
7080761
$5,24 Unit Price incl. VAT
6
BOLT ASSEMBLY; WASHER
7517599
$10,49 Unit Price incl. VAT
7
SCREW
7517312
$2,09 Unit Price incl. VAT
8
WASHER
7555748
$9,44 Unit Price incl. VAT
9
CLUTCH COVER ASSEMBLY; OUTER
2634897
$346,49 Unit Price incl. VAT
10
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
11
DRAIN PLUG
5434264
$10,49 Unit Price incl. VAT
12
WORM DRIVE CLAMP
7081626
$14,69 Unit Price incl. VAT
13
CLUTCH INTAKE COVER; BAFFLE
5450420
$173,24 Unit Price incl. VAT
14
SCREW
7512026
$2,09 Unit Price incl. VAT
15
DUCT BOOT; CLUTCH
5414768
$31,49 Unit Price incl. VAT
16
WORM DRIVE CLAMP
7081626
$14,69 Unit Price incl. VAT
17
SCR-#14X1-1/4 HI/LO/TAPER-Y
7519849
$6,29 Unit Price incl. VAT
18
INLET AIR DUCT CLUTCH
5451354
$125,99 Unit Price incl. VAT
19
DUCT OUTLET CLUTCH
5450546
$104,99 Unit Price incl. VAT

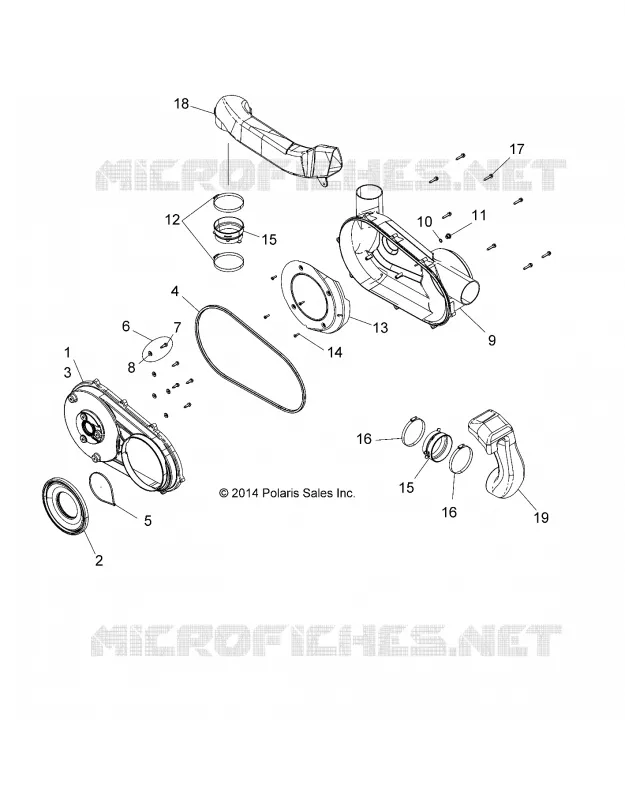

Find the detailed CLUTCH COVER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
