1
Engine displacement
550
2
Year
2004
3
Trim
550 TRAIL RMK
4
Parts Catalog
FRONT SUSPENSION
5
Parts Diagram
Parts Catalog
HOOD
by
SKI
FRONT SUSPENSION
1
2
3
4
5
6
6
7
8
8
9
10
10
11
11
11
11
11
12
13
13
14
15
15
15
15
15
15
15
15
16
17
18
18
18
18
19
19
20
20
21
22
23
23
24
24
24
24
25
26
27
28
29
30
31
32
33
34
34
35
35
36
37
38
39
40
41
42
43
43
44
44
45
46
47
48
49
50
1
BOLT-7/16-20X3.00 HXCAP GR5-Y
7517980
$12,59 Unit Price incl. VAT
2
WASHER 7/16
7556212
$15,74 Unit Price incl. VAT
3
BUSHING SPACER
5132454
9999999
Not Available
4
RADIUS ROD END LEFT 7/16
7061081
9999999
Not Available
5
FLAT WASHER
7555852
$4,19 Unit Price incl. VAT
6
NYLOK NUT; 7-16-20
7547066
$3,14 Unit Price incl. VAT
7
NUT LH
7547117
9999999
Not Available
8
RADIUS ROD TUBE; UPPER; CLOUD SILVER
5133543385
Not Available
8
RADIUS ROD TUBE; UPPER; 12.68
5133691
9999999
Not Available
9
NUT JAM(10)
7542520
9999999
Not Available
10
ROD END-7/16 RH3/8X.75
7061104
9999999
Not Available
10
ROD END RADIUS; 7/16
7061061
$99,74 Unit Price incl. VAT
11
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
12
SCREW
7515433
$3,14 Unit Price incl. VAT
13
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
14
SCREW
7515415
9999999
Not Available
15
SPRING-COMP .262X9.85X55# RED
7042315293
Not Available
15
IFS COMPRESSION SPRING; GS BLK
7041552067
Not Available
15
SPRING-COMP IFS 10.75/100 BLK
7041551067
Not Available
15
SPRING COMP IFS BLK
7041613067
Not Available
16
ADJUSTABLE PRELOAD SPRING RING
5431734
$104,99 Unit Price incl. VAT
17
RETAINER SPRING BODY THREADED
1500063
9999999
Not Available
18
SHOCK-IFS ARVIN
7042249
7042197
$325,49 Unit Price incl. VAT
18
IFS SHOCK
7042197
$325,49 Unit Price incl. VAT
19
SCR-3/8-24X2 HX/CP GR5-Y-SP
7517583
$7,34 Unit Price incl. VAT
20
WASHER
7555832
$4,19 Unit Price incl. VAT
21
ARM-STEERING MACHINED
5133060
9999999
Not Available
22
ROD-END 3/8;50 ;1.00;RH
7061086
9999999
Not Available
23
FLAT WASHER
7555797
$7,34 Unit Price incl. VAT
24
TRAILING ARM ASSEMBLY; LEFT; INDY RED
1821201293
Not Available
24
ASM-TRAILING ARMSVCRHI RED
1821261293
Not Available
24
TRAILING ARM ASSEMBLY; LEFT; INDY RED
1821260293
Not Available
24
TRAILING ARM ASSEMBLY RIGHT INDY RED
1821202293
Not Available
25
FLAT WASHER
7555820
$7,34 Unit Price incl. VAT
26
TRAILING ARM MOUNT CUP
5132364
9999999
Not Available
27
SPHERICAL BEARING; PLASTIC
7061042
$54,59 Unit Price incl. VAT
28
RETAINING RING
7710437
$5,76 Unit Price incl. VAT
29
SCREW
7512099
9999999
Not Available
30
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
31
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
32
TORSION BAR BUSHING 9/16 IN
5433814
9999999
Not Available
33
RIVET
7621452
9999999
Not Available
34
BAR-TORSION 9/16 EDGE RMK BLK
5245217067
Not Available
34
BAR-TORSION 9/16 41BLK
5246871067
Not Available
35
SLIDE-SWAY BAR 9/16
5412063
9999999
Not Available
35
SLIDE-TORSION BAR;9/16;ANTIRATTLE
5434371
9999999
Not Available
36
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
37
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
38
SPINDLE SHAFT WITH STEER STOP
6230225067
Not Available
39
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
40
BUSHING
7556509
$3,14 Unit Price incl. VAT
41
BOLT-1/2-20X2 HXCAP GR5-Y
7517906
9999999
Not Available
42
WASHER-.505X1.00X.062 HH-Y
7556213
9999999
Not Available
43
NUT-1/2-70 NYLOK-GR8-Y
7547216
9999999
Not Available
44
ROD END; LOWER; RIGHT
7061052
$99,74 Unit Price incl. VAT
44
ROD END-1/2 RH;3/8X.75
7061103
9999999
Not Available
45
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
46
WASHER
7556153
$3,66 Unit Price incl. VAT
47
RADIUS ROD TUBE; LOWER
5132953
9999999
Not Available
48
NUT JAM; LEFT
7547028
$4,19 Unit Price incl. VAT
49
RADIUS END ROD; LOWER; LEFT
7061087
9999999
Not Available
50
BOLT-1/2-20X3.75 HXCAP GR8-Y
7518041
9999999
Not Available

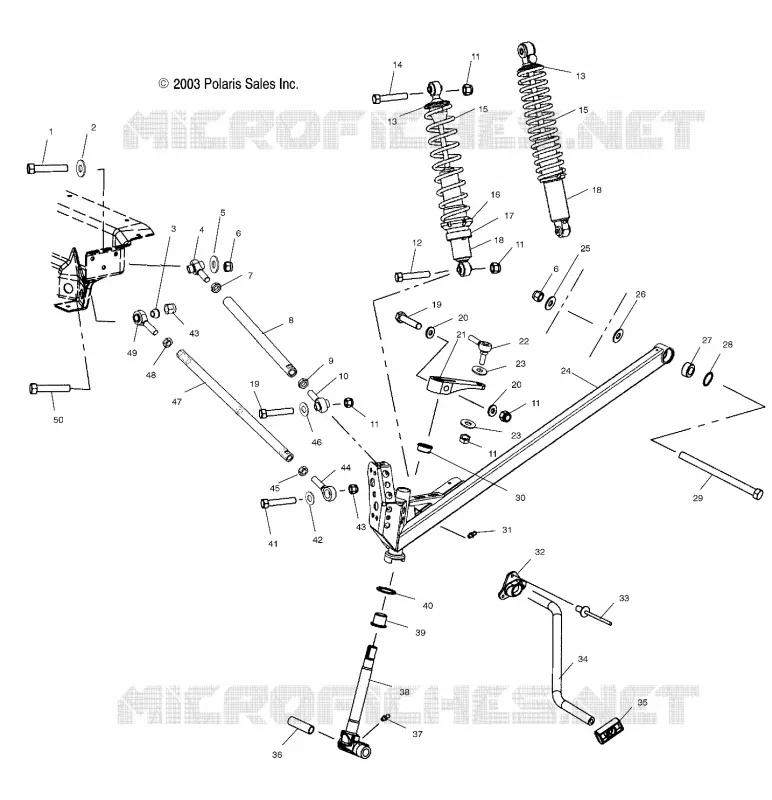

Find the detailed FRONT SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
