1
Engine displacement
autre
2
Year
1995
3
Trim
XLT RMK - 0950956
4
Parts Catalog
STEERING
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI XLT 0950756, XLT SKS 0950556, XLT SKS EURO E95055 (4928842884B004)
by
MASTER CYLINDER XLT 0950756, XLT SKS 0950556, XLT SKS EURO E95055 (4928842884B012)
STEERING
1
GRIP H BAR BLACK
5410272067
Not Available
2
RETAINING PIN
7661624
$23,09 Unit Price incl. VAT
3
RETAINING RING
7710503
$7,34 Unit Price incl. VAT
4
THROTTLE LEVER
5430652
9999999
Not Available
4
LEVER ASMHTR.STD 34MM
2010142
9999999
Not Available
5
THROTTLE/BRAKE; BLOCK
5431592
$73,49 Unit Price incl. VAT
6
ADAPTER BLOCK
5430604
$26,24 Unit Price incl. VAT
7
CLIP
7080278
9999999
Not Available
8
BOLT
7512254
9999999
Not Available
9
COVER H#BAR W/DECAL(94XLT)
2690078
Not Available
9
COVER H#BAR W/DECAL (EURO)
2690088
Not Available
10
PAD HANDLEBAR
5810448
Not Available
11
HANDLEBAR BLOCK; MEDIUM GLOSS BLACK
5630187067
Not Available
12
HANDLEBAR BLK 1#RAISED
5224514067
Not Available
13
DIMMER SWITCH
4110107
9999999
Not Available
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
CAPLUG
7080467
9999999
Not Available
16
HEATER GRIP ASSEMBLY; HI/LO
2460311
$115,49 Unit Price incl. VAT
17
NUT
7542124
7542122
$2,09 Unit Price incl. VAT
18
BOLT ;
7512239
7517377
$9,44 Unit Price incl. VAT
19
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
20
POST STRG. BLK.
1823144067
Not Available
21
SCREW
7511848
$7,34 Unit Price incl. VAT
22
SCREW
7511858
$7,34 Unit Price incl. VAT
23
PLATE BLK WIREHOLDER
5240256067
Not Available
24
RETAINING RING
7710401
$7,34 Unit Price incl. VAT
25
WASHER
7555730
$7,34 Unit Price incl. VAT
26
SCREW SET
7512465
$7,34 Unit Price incl. VAT
27
WASHER 13/64X1/2X18GA FL-Y (10
7558212
$1,56 Unit Price incl. VAT
28
SWITCH AUXILIARY SHUT-OFF
4110106
9999999
Not Available

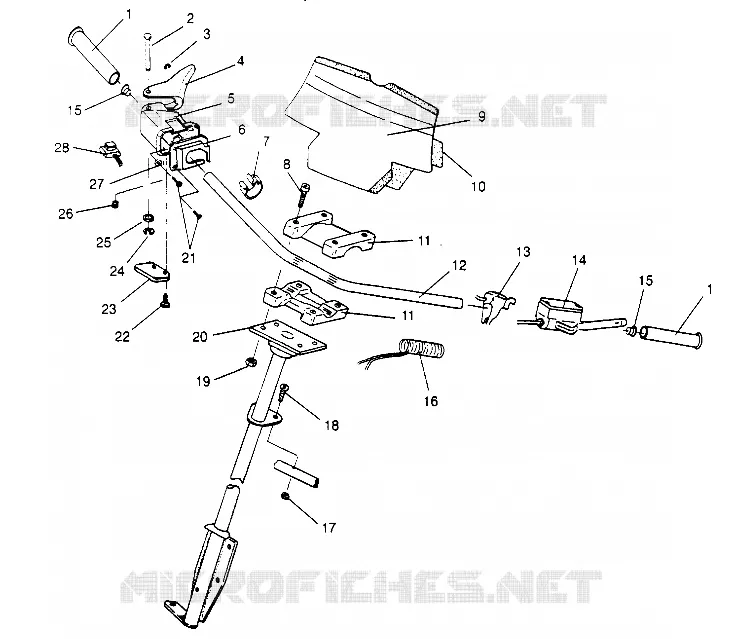

Find the detailed STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
