1
Engine displacement
780
2
Year
1997
3
Trim
INTL SL 780 - I974088
4
Parts Catalog
OIL TANK SL 780 B974088 AND INTL. SL 780 I974088 (4940924092A012)
5
Parts Diagram
Parts Catalog
SEAT SL 780 B974088 AND INTL. SL 780 I974088 (4940924092A011)
by
TRIM PACKAGE SL 780 B974088 AND INTL. SL 780 I974088 (4940924092B005)
OIL TANK SL 780 B974088 AND INTL. SL 780 I974088 (4940924092A012)
1
1
2
2
3
4
5
6
7
8
9
10
11
11
11
12
12
13
14
15
16
17
18
18
19
20
21
21
22
22
23
24
25
26
27
1
1
2
2
3
4
5
6
7
8
9
10
11
11
11
12
12
13
14
15
16
17
18
18
19
20
21
21
22
22
23
24
25
26
27
1
ELBOW 90 DEG.
7052130
9999999
Not Available
2
CABLE TIE4 INCH
7080483
9999999
Not Available
3
FUELLINE 30 CM.
845000330
Not Available
4
VALVEVACUUM CHECK
7052118
9999999
Not Available
5
SENDER ASM OIL LEVEL
2410031
Not Available
6
OIL TANK CAP
5430779
$31,49 Unit Price incl. VAT
7
OIL CAP GASKET
5810141
$4,19 Unit Price incl. VAT
8
GASKET INLET OILTANK
5810557
9999999
Not Available
9
RIVET (10)
7621478
9999999
Not Available
10
HANGER; OIL TANK
5222688
9999999
Not Available
11
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
12
FUELLINE 109 CM. Substituted by 8450003-139
8450003109
Not Available
13
FITTING BRASS
7052102
9999999
Not Available
14
HOSE CLAMP
7080236
$3,14 Unit Price incl. VAT
15
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
16
TANK; OIL
5432584
9999999
Not Available
17
NUT HEX S.S.
7541931
$9,44 Unit Price incl. VAT
18
WASHER; FLAT; S.S.
7555837
9999999
Not Available
19
BOLT; S.S.
7512041
9999999
Not Available
20
SPACER
5333514
9999999
Not Available
21
WASHER
7555836
9999999
Not Available
22
WASHER LOCK
7552613
9999999
Not Available
23
SCREW S.S.(10)
7516805
9999999
Not Available
24
SCREW
7515185
9999999
Not Available
25
BRACKET
5211662
9999999
Not Available
26
NUT NYLOK S.S.
7542133
9999999
Not Available
27
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available

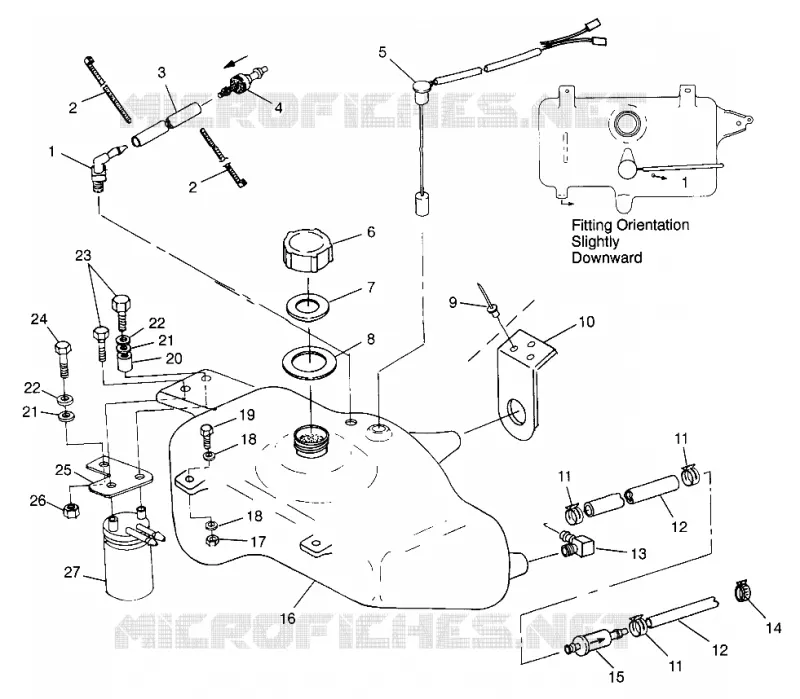

Find the detailed OIL TANK SL 780 B974088 AND INTL. SL 780 I974088 (4940924092A012) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
