ENGINE MOUNTING SPORT (4914161416017A) for POLARIS TRAIL ES

SUSPENSION SPORT AND TRAIL (4914161416015A)

ENGINE MOUNTING TRAIL (4914161416019A)

ENG EC34-2PM-03 [No Longer Available]

1211448

Not Available

HANDLE-RECOIL

5430520

Not Available

CABLE THROTTLE

7080332

9999999

Not Available

NYLOK NUT

7542122

$2,09 Unit Price incl. VAT

WASHER(10)

7558221

$4,19 Unit Price incl. VAT

WASHER RUBBER

5410436

9999999

Not Available

GROMMET RUBBER

5410021

9999999

Not Available

POP RIVET(10)

7621425

$2,09 Unit Price incl. VAT

BRACKET

5223985

Not Available

WASHER WROUGHT

7558302

$3,14 Unit Price incl. VAT

TANK OIL

5430921

9999999

Not Available

VENT-TANK

5430579

9999999

Not Available

KIT-TANK VENT

2200190

9990000

Not Available

CAP-OIL TANK [No Longer Available]

5430594

Not Available

OIL CAP GASKET

5810141

$4,19 Unit Price incl. VAT

SCREW

7512116

9999999

Not Available

DECAL OIL LEVEL [No Longer Available]

7072160

Not Available

HOSE CLAMP

7080307

$1,56 Unit Price incl. VAT

FUEL LINE-50FT.PKG.

2870563

8450003-1525

$136,49 Unit Price incl. VAT

CLAMP-HOSE

7080134

9999999

Not Available

SMALL IN-LINE FILTER

2530009

$12,59 Unit Price incl. VAT

MUFFLER (SPORT) Substituted by 1260514-029

1260514

Not Available

SPRING RETURN EXHAUST

3081078

7041687

$12,59 Unit Price incl. VAT

EXHAUST MOUNT BALL

5430687

9999999

Not Available

NUT

3080285

9999999

Not Available

LOCK WASHER

3080530

9999999

Not Available

MANIFOLD

1260497

9999999

Not Available

GASKET COMPL. (EXHAUST) Substituted by 3083770

3082068

Not Available

SUPPORT MUFFLER Substituted by 1011601-067

1011601

Not Available

RIVET

7621429

$2,09 Unit Price incl. VAT

STINGER OUTLET

1260507

Not Available

RIVET

7621431

$2,09 Unit Price incl. VAT

BUSHING

5010192

$12,59 Unit Price incl. VAT

DAMPENER

5410241

5412508

$9,44 Unit Price incl. VAT

BOLT-CARRIAGE(10)

7515460

9999999

Not Available

CAP DAMPENER VIBRATION

5221901

9999999

Not Available

FOAM INTAKE

5810361

9999999

Not Available

PLATE MOTOR MT. [No Longer Available]

5220708

Not Available

BUSHING-MOTOR MT.

5010163

9999999

Not Available

HOSE CLAMP

7080003

$2,09 Unit Price incl. VAT

DAMPNER-VIB.

5410320

9999999

Not Available

NYLOCK NUT

7542439

$2,09 Unit Price incl. VAT

WASHER WROUGHT

7558403

$9,44 Unit Price incl. VAT

BOLT-CARRIAGE

7512275

9999999

Not Available

SUPPORT MUFFLER Substituted by 5220695-067

5220695

Not Available

CARRIAGE BOLT

7512193

$4,19 Unit Price incl. VAT

SPRING LOCK WASHER

7553101

$7,34 Unit Price incl. VAT

BOLT

7512515

9999999

Not Available

NUT SPEED

7670021

$10,49 Unit Price incl. VAT

BOLT-CARRIAGE

7512263

9999999

Not Available

BOLT(10) Substituted by 7512457

7512491

Not Available

BUSHING

5020397

9999999

Not Available

NUT LOCK

7542403

9999999

Not Available

WASHER

7555720

7555806

$1,56 Unit Price incl. VAT

BUSHING

5430261

$13,64 Unit Price incl. VAT

WASHER

5210748

$7,34 Unit Price incl. VAT

WASHER LOCK

7575202

$9,44 Unit Price incl. VAT

BOLT

7512565

9999999

Not Available

HOSE;IMPULSE

5521132

9999999

Not Available

FUEL FILTER

2530008

9999999

Not Available

FUEL LINE3/16ID-2FT.

5521133

9999999

Not Available

BOOT

5410403

9999999

Not Available

FUEL SHUT OFF VALVE

7052039

9999999

Not Available

WELL NUT

7541923

$10,49 Unit Price incl. VAT

FITTING OUTLET

7052042

$13,64 Unit Price incl. VAT

WASHER

7552604

$3,14 Unit Price incl. VAT

SCREW

7512279

$1,56 Unit Price incl. VAT

BRKT INTAKE SILENCER [No Longer Available]

5210928

Not Available

DECAL SPEC. [No Longer Available]

7072341

Not Available

AIR BOX CLIP

7670055

$11,54 Unit Price incl. VAT

BAFFLE ASSEMBLY

1253102

$120,74 Unit Price incl. VAT

DECAL SHUT-OFF VALVE [No Longer Available]

7072151

Not Available

BRKT AIR SILENCER BLK. Substituted by 5223973-067

5223973

Not Available

CLIP

7080278

9999999

Not Available

SILENCER COVRE

5430920

9999999

Not Available

SILENCER DRILLED

5430956

Not Available

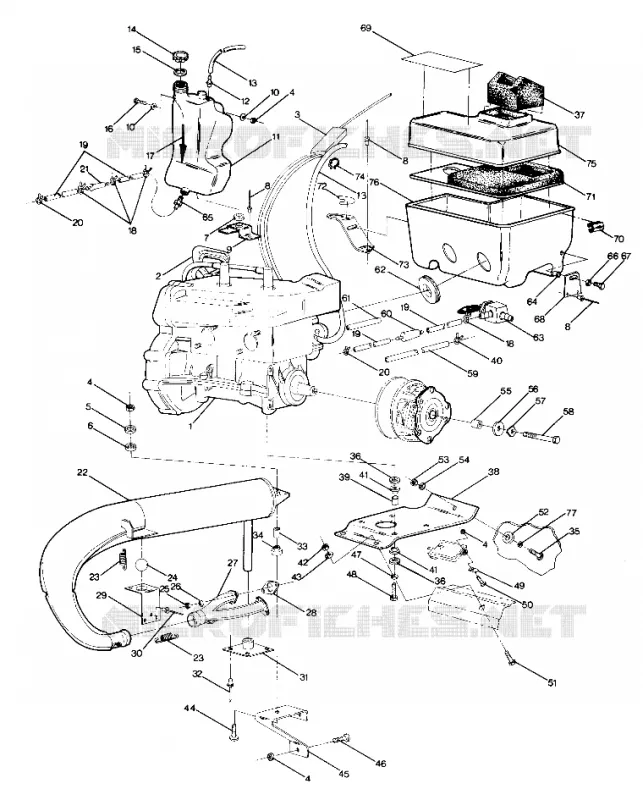

Find the detailed ENGINE MOUNTING SPORT (4914161416017A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
