CARBURETOR STARLITE GT / 0933127 (4923232323033A) for POLARIS STARLITE GT - 0933127 from 1993

CARBURETOR LITE GT/0933133 (4923232323032A)

OIL PUMP ASSEMBLY LITE GT/0933133 (4923232323034A)

CARBURETOR STARLITE GT / 0933127 (4923232323033A)

1

TOP MIX CHAMBER

3130060

9999999

Not Available

2

SPRING-THROTTLE Substituted by 3130344

3130281

Not Available

3

THROTTLE PLATE

3130002

9999999

Not Available

4

E RING

3130003

3130508

$12,59 Unit Price incl. VAT

5

JET NEEDLE(5DT2-3) (5DT2-3)

3130473

Not Available

6

VALVE THROTTLE (3.0)

3130323

Not Available

7

NEEDLE JET O-8

3130453

9999999

Not Available

8

CAP; PLUNGER

3130359

9999999

Not Available

9

SPRING PLUNGER

3130006

3131764

$18,89 Unit Price incl. VAT

10

PLUNGER ASSEMBLY

3130328

$68,24 Unit Price incl. VAT

11

SPRING

3130010

$18,89 Unit Price incl. VAT

12

SCREW THROTTLE STOP

3130324

9999999

Not Available

13

AIR SCREW

3130011

$36,74 Unit Price incl. VAT

14

SPRING AIR ADJUST

3130012

9999999

Not Available

15

JET PILOT #60(10) (No. 80)

3130071

Not Available

16

ASM. SCREW & WASHER(10)

3130025

$6,29 Unit Price incl. VAT

17

HOSE CLAMP

7080236

$3,14 Unit Price incl. VAT

18

HOSE CLAMP

7080307

$1,56 Unit Price incl. VAT

19

PLUG TRAP

5431001

5431893

$26,24 Unit Price incl. VAT

20

FUEL LINE;3/8(GAUGE)

8450041

8450003-1525

$136,49 Unit Price incl. VAT

21

FITTING SEDIMENT CARB.

5020647

3130573

$68,24 Unit Price incl. VAT

22

O-RING

3130239

9999999

Not Available

23

JET;MAIN;HX.HD#140

3130111

9999999

Not Available

24

WASHER

3130014

$3,14 Unit Price incl. VAT

25

CARBURETOR (STARLITE) (Incl. 1-16 21-32)

3130472

Not Available

26

FLOAT ASSEMBLY

3130021

$83,99 Unit Price incl. VAT

27

CAP

3130237

$8,39 Unit Price incl. VAT

28

FLOAT CHAMBER GASKET

3130020

$31,49 Unit Price incl. VAT

29

VALVE NEEDLE

3130016

3131146

$99,74 Unit Price incl. VAT

30

NEEDLE VALVE PACKING

3130017

$7,34 Unit Price incl. VAT

31

ARM FLOAT

3130018

$52,49 Unit Price incl. VAT

32

PIN FLOAT

3130043

9999999

Not Available

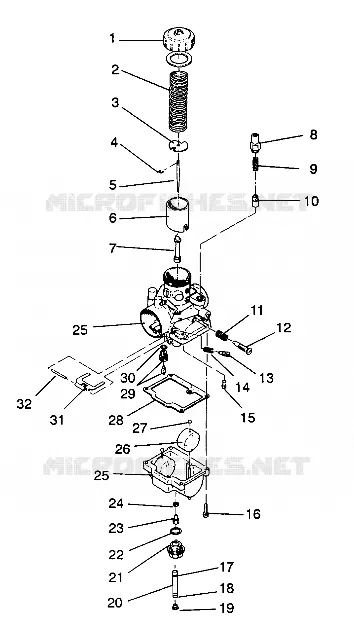

Find the detailed CARBURETOR STARLITE GT / 0933127 (4923232323033A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
