RECOIL STARTER ASSEMBLY 250 6X6 / W928727 (4922842284049A)
1
1
2
2
3
4
5
6
7
7
7
7
8
8
9
10
11
12
12
13
14
14
15
15
16
16
17
18
19
20
21
22
23
24
25
25
25
25
26
27
27
28
29
30
30
31
32
33
34
35
36
37
38
39
40
40
41
42
43
1
1
1
1
1
1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
1
1
1
1
1
1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
1
STARTER RECOIL ASSEMBLY
3083924
9999999
Not Available
1
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
1
REEL; COMPL.
3083814
9999999
Not Available
2
SPIRAL SPRING
3083815
9999999
Not Available
2
SCREW
7515415
9999999
Not Available
3
CASE SPRING
3083925
9999999
Not Available
3
TOP RETAINER
5220225
$19,94 Unit Price incl. VAT
4
GROMMET
3083817
9999999
Not Available
4
SPRING COMP REAR
7041204119
Not Available
5
HOOK SPRING
3083818
9999999
Not Available
5
SHOCK
7041220
9999999
Not Available
6
RATCHET
3083819
9999999
Not Available
6
ADAPTER SPRING SEAT
5630351
9999999
Not Available
7
PIN RATCHET
3083820
9999999
Not Available
7
OIL SEAL
3610016
9999999
Not Available
8
WASHER
7555779
9999999
Not Available
8
GUIDE RATCHET
3083821
9999999
Not Available
9
SPRING FRICTION
3083912
9999999
Not Available
9
BUSHING SWING ARM(10)
5010255
9999999
Not Available
10
HOLDER
5130712
9999999
Not Available
10
GUIDE COMPL.
3083913
9999999
Not Available
11
SCREW & WASHER
3084176
9999999
Not Available
11
NUT CROWN LOCK
7542601
9999999
Not Available
12
CASE STARTER
3083914
9999999
Not Available
12
BOLT LOCK PLATE
5220958
9999999
Not Available
13
BOLT; SHOULDER
7512704
9999999
Not Available
13
BOLT FLANGE
3083826
9999999
Not Available
14
RETURN SPRING
3083827
9999999
Not Available
14
BUSHING MACH.(10)
7555752
9999999
Not Available
15
BEARING
3576507
9999999
Not Available
15
100 FT. NYLON STARTER ROPE
2870621
$47,24 Unit Price incl. VAT
16
KNOB STARTER
3083659
9999999
Not Available
16
BUSHING SWING ARM
5010237
9999999
Not Available
17
CAP; KNOB
3083660
9999999
Not Available
17
ARM SWING WELD. Substituted by 1580035-067
1580035
Not Available
18
RIVET
7621433
$2,09 Unit Price incl. VAT
18
PULLEY STARTING
3083915
9999999
Not Available
19
GUIDE CHAIN
5431310
9999999
Not Available
19
BOLT & WASHER ASM.
3083926
9999999
Not Available
20
FLANGED SCREW
7515304
9999999
Not Available
20
BOLT&WASHER ASM.
3083792
9999999
Not Available
21
BOLT&WASHER ASM.
3082228
9999999
Not Available
21
BUSHING
5332828
9999999
Not Available
22
GUARD CHAIN(MODIFIED)
5430952
9999999
Not Available
22
PLUG
3083453
9999999
Not Available
23
PIVOT SWING ARM Substituted by 5130696
5610111
Not Available
23
GASKET
3082956
9999999
Not Available
24
GUARD RACK Substituted by 1040183-132
1040183
Not Available
24
STARTER BUSHING
3083669
9999999
Not Available
25
BRKT SWING ARM EXT.
1580046
Not Available
25
BRKT SWG.ARM EXT. Substituted by 1580037-067
1580037
Not Available
25
ASM. BOLT&WASHER
3083729
9999999
Not Available
26
MOUNTING RUBBER
3083731
9999999
Not Available
26
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
27
COLLAR
3083732
9999999
Not Available
27
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT
28
CASE STARTER B UNIT
3083911
9999999
Not Available
28
BOLT
7512520
$9,44 Unit Price incl. VAT
29
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
30
BOLT
7512569
9999999
Not Available
31
HOUSING AXLE
5130663
9999999
Not Available
32
BOLT SHOULDER
7512703
Not Available
33
MT; RACK GUARD
5222221
5222221-132
Not Available
34
GUARD F.CHAIN
5431102
9999999
Not Available
35
SCREW
7512252
9999999
Not Available
36
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
37
BRKT CHAIN GUARD
5222220
5222220-067
Not Available
38
RIVET(10)
7621301
9999999
Not Available
39
RIVET BURR(50)
7555756
9999999
Not Available
40
BOLT
7512325
$4,19 Unit Price incl. VAT
41
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
42
HEX NUT
7542301
$3,14 Unit Price incl. VAT
43
FITTING LUBE
7080438
$19,94 Unit Price incl. VAT

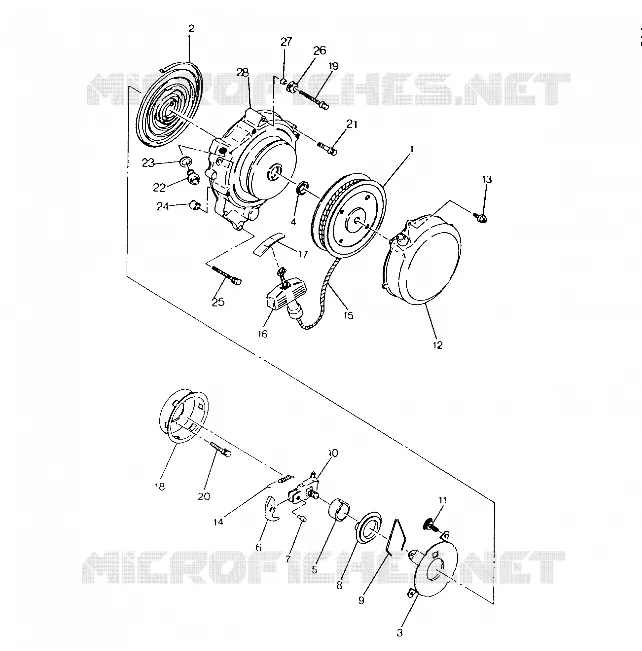

Find the detailed RECOIL STARTER ASSEMBLY 250 6X6 / W928727 (4922842284049A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
