RANGER 4X4 500 EFI - R10TH50AG/AR
4
Parts Catalog
BATTERY
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, SECONDARY CLUTCH
by
ELECTRICAL, INSTRUMENTS CONTROLS
BATTERY
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
STARTER SOLENOID
4012001
4081641
$59,84 Unit Price incl. VAT
2
SCR-10-24X3/4 PH/TX/TRI-SEMS Y (10)
7518196
$2,09 Unit Price incl. VAT
3
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
4
NUT-HXFLGHD M6 SERRATED
7547270
$7,34 Unit Price incl. VAT
5
CABLE-SOL/STARTER
4012442
9999999
Not Available
6
TERMINAL BLOCK; 3 POST
4011892
$62,99 Unit Price incl. VAT
7
NYLOK NUT
7546601
$2,09 Unit Price incl. VAT
8
STRAP-GROUND
5248659
9999999
Not Available
9
SCREW(10)
7512018
$6,29 Unit Price incl. VAT
10
BATTERY STRAP HOOK
7081123
$12,59 Unit Price incl. VAT
11
RUBBER STRAP; BATTERY
5411054
9999999
Not Available
12
TOP MOUNT BATTERY; 30 AMP
4010630
4016741
Not Available
13
KIT-BATTERY BOLT
2202802
$7,34 Unit Price incl. VAT
14
CABLE-POSITIVE 13/16
4012441
9999999
Not Available
15
SPLIT GROUND CABLE
4012387
9999999
Not Available
16
TUBE BATT.VENT 400 MM
5433681
9999999
Not Available
17
TIE CABLE; 14 IN
7080761
$5,24 Unit Price incl. VAT

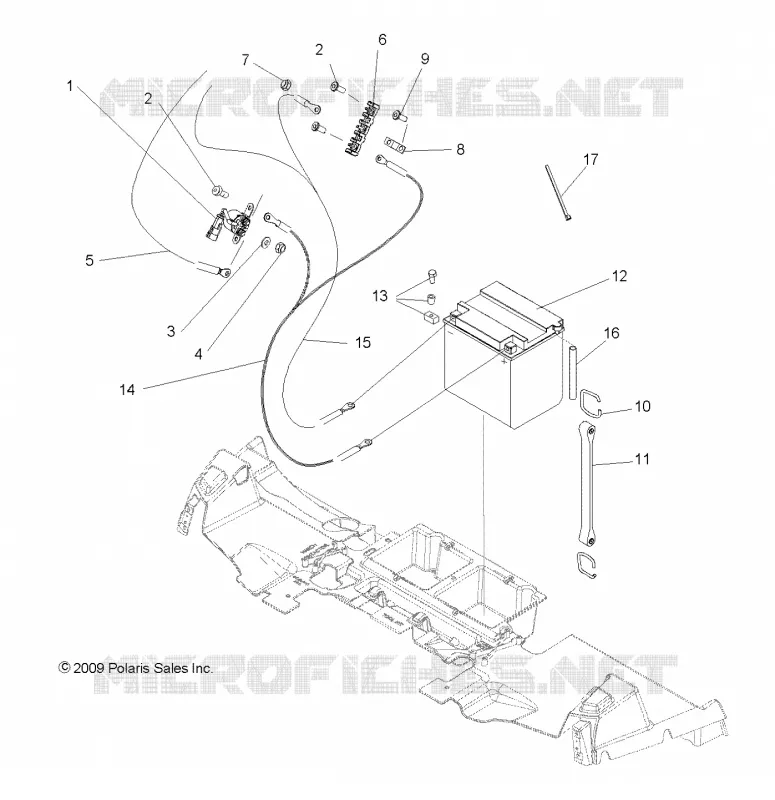

Find the detailed BATTERY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
