1
Engine displacement
600
2
Year
2003
3
Trim
600 / 700 / 800 PRO X
4
Parts Catalog
OIL TANK/AIR BOX
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING
by
CYLINDER (600)
OIL TANK/AIR BOX
17
18
19
20
21
21
22
23
24
24
25
26
27
28
29
29
30
31
17
33
34
35
1
VENTED OIL CAP CUSTOM COLOR
1240094
1244736
$68,24 Unit Price incl. VAT
2
TOOL BOX COVER
5434089
9999999
Not Available
3
FOAM
5812209
9999999
Not Available
4
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
5
ASM-OIL TANK W/SENDING UNIT
1253474
9999999
Not Available
5
WELD-OIL BOTTLE/TOOL BOX
1261219
9999999
Not Available
6
SCREW
7512095
$9,44 Unit Price incl. VAT
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
FITTING
7052077
9999999
Not Available
9
CHIMNEY FOAM
5811983
$36,74 Unit Price incl. VAT
10
DECAL CAUTION
7075351
9999999
Not Available
11
STRAP
5433150
$47,24 Unit Price incl. VAT
12
ASM-AIR SILENCER PRO-X
1253511
9999999
Not Available
12
ASM-AIR SILENCER600 RACE
1253416
9999999
Not Available
13
DECAL-BELT REMOVALE/R
7171037
9999999
Not Available
14
DECAL; GREASING
7073426
9999999
Not Available
15
NUT WELL
7547103
$15,74 Unit Price incl. VAT
16
NYLON WASHER
7555932
$4,19 Unit Price incl. VAT
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
CLIP IGNITION CABLE
7080471
9999999
Not Available
19
WASHER
7552604
$3,14 Unit Price incl. VAT
20
SCREW
7517610
$3,14 Unit Price incl. VAT
21
BOOT CARB 63MM.
5411424
9999999
Not Available
21
BOOT-CARB
5412222
9999999
Not Available
22
BRKT-OIL BOTTLE;LOWER
5245801
9999999
Not Available
23
RIVET
7661637
$2,09 Unit Price incl. VAT
24
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
25
FUEL LINE; 1/4 ID
84500031525
Not Available
26
CONDUIT-CONVOLUTED 18 CM Substituted by 4010051-30
401005118
Not Available
27
OIL SENDER WITH FRONT TERMINALS
4010660
$120,74 Unit Price incl. VAT
28
OIL SENDER GROMMET
7052305
$8,39 Unit Price incl. VAT
29
RIVET
7621479
$3,66 Unit Price incl. VAT
30
BOLT-CARRIAGE
7512263
9999999
Not Available
31
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
32
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
33
BRKT-FUEL PUMP
5246113
9999999
Not Available
34
DECAL-OILVES
7079003
9999999
Not Available
35
SCREW
7512297
$10,49 Unit Price incl. VAT

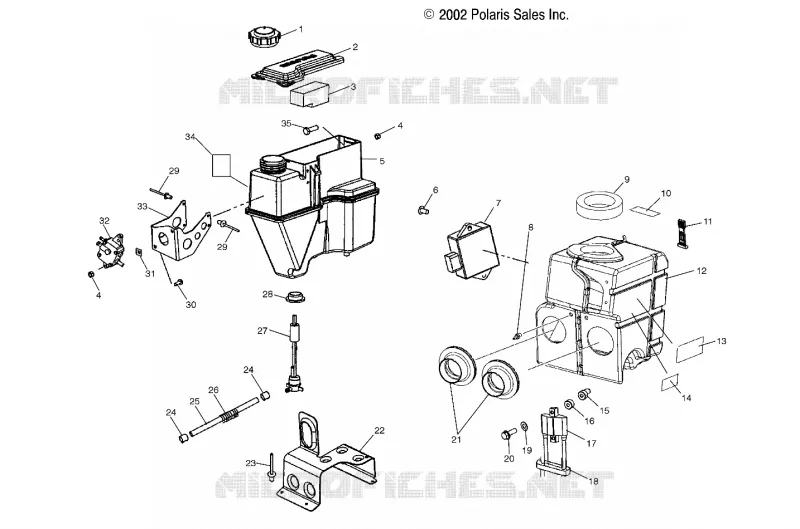

Find the detailed OIL TANK/AIR BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
