DRIVE CLUTCH ASSEMBLY (4913491349023A)

1

CLUTCH DRIVE ATV

1321476

1321976

$1 081,49 Unit Price incl. VAT

2

BOLT

7512265

9999999

Not Available

3

SPRING LOCK WASHER

7552801

$3,14 Unit Price incl. VAT

4

BUSHING;CLUTCH COVER

5010189

9999999

Not Available

5

CLUTCH SPRING

7041157

$89,24 Unit Price incl. VAT

6

ROLLER/BUSHING ASSEMBLY

1321457

$73,49 Unit Price incl. VAT

7

WASHER

5430702

5438247

$3,14 Unit Price incl. VAT

8

SEAL; O RING;

5410374

9999999

Not Available

9

BUTTON; GUIDE

5430768

9999999

Not Available

10

SPACER .050

5210754

$6,29 Unit Price incl. VAT

11

INSERT MOVEABLE

5010218

9999999

Not Available

12

WT. CLUTCH 16(3)

5630279

9999999

Not Available

13

SHOULDER BOLT

7512266

$5,76 Unit Price incl. VAT

14

BEARING; SLEEVE

5430748

9999999

Not Available

15

FLEXLOC NUT(10)

7541906

$6,29 Unit Price incl. VAT

16

PIN SPIDER

5020436

9999999

Not Available

17

SPACER .020

5210752

$3,14 Unit Price incl. VAT

17

TOOLCLUTCH OFFSET

2870654

9999999

Not Available

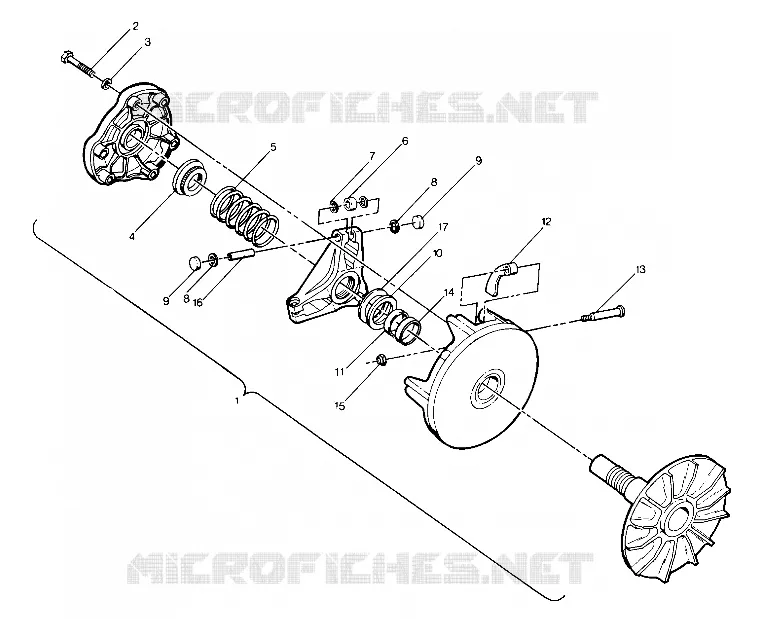

Find the detailed DRIVE CLUTCH ASSEMBLY (4913491349023A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
