1
Engine displacement
autre
2
Year
1996
3
Trim
MAGNUM 2X4 - W967544
4
Parts Catalog
COOLING SYSTEM MAGNUM 2X4 W967544 (4936033603A009)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING MAGNUM 2X4 W967544 (4936033603A008)
by
AIR BOX MAGNUM 2X4 W967544 (4936033603A014)
COOLING SYSTEM MAGNUM 2X4 W967544 (4936033603A009)
1
2
3
3
3
3
4
5
6
7
8
8
9
10
11
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
24
25
25
26
27
28
29
30
30
30
30
31
32
33
34
35
36
37
38
39
40
41
42
1
SCREW
7517221
9999999
Not Available
2
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
3
MOTOR; FAN
2410006
9999999
Not Available
3
MOTOR FAN
3084266
9999999
Not Available
4
SPACER; FAN BRKT.
5333073
9999999
Not Available
5
NUT (10)
7547004
$9,44 Unit Price incl. VAT
6
MOUNT SPACER
5020572
9999999
Not Available
7
MOUNT; RUBBER
3110032
9999999
Not Available
8
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
9
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
10
HOSEWATER305 CM.
8450050305
Not Available
11
HOSE CLAMP
7080614
$13,64 Unit Price incl. VAT
12
HOSE CHAFE-PROTECTED
5411108
9999999
Not Available
13
SWITCH ASSEMBLY; THERMAL FAN; L/C
4110189
9999999
Not Available
14
DECAL(CPSC) RAD.CAP
7073068
Not Available
15
CAP; RADIATOR
2511189
9999999
Not Available
16
HARNESS FAN/THERM.SWITCH
2460515
9999999
Not Available
17
FITTING HEX BUSH
7052116
9999999
Not Available
18
RADIATOR"U"FLOW
1240015
9999999
Not Available
19
WASHER
7552605
9999999
Not Available
20
BOLT
7512113
$7,34 Unit Price incl. VAT
21
COVER RADIATOR W/MESH
5431760
9999999
Not Available
22
LIQUID COOLED MOTOR FAN
4170009
9999999
Not Available
23
BRKT COOL.FAN BLK
5224741067
Not Available
24
SPACER
5333457
9999999
Not Available
25
BLADE FAN
5240822
9999999
Not Available
26
NUT
7542154
9999999
Not Available
27
SPACER FAN BRKT.
5432294
9999999
Not Available
28
DART CLIP; PLASTIC
7670090
$2,09 Unit Price incl. VAT
29
O-RING
5410607
9999999
Not Available
30
SHIELD LH RADIATOR SIDE
5431829
9999999
Not Available
30
SHIELD RH RADIATOR SIDE
5431830
9999999
Not Available
31
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
32
NUT
3083952
Not Available
33
BOLT
7512232
$2,09 Unit Price incl. VAT
34
BRKT COOLING FAN
5222559067
Not Available
35
COVER
3083951
9999999
Not Available
36
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
37
GASKET
5810279
$4,19 Unit Price incl. VAT
38
PLUG CAP
5431895
5433774
$10,49 Unit Price incl. VAT
39
SCREW(10)
7512018
$6,29 Unit Price incl. VAT
40
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT
41
FUEL LINE; 1/4 ID
84500031525
Not Available
42
TANK; SURGE
5431673
5436936
$152,24 Unit Price incl. VAT

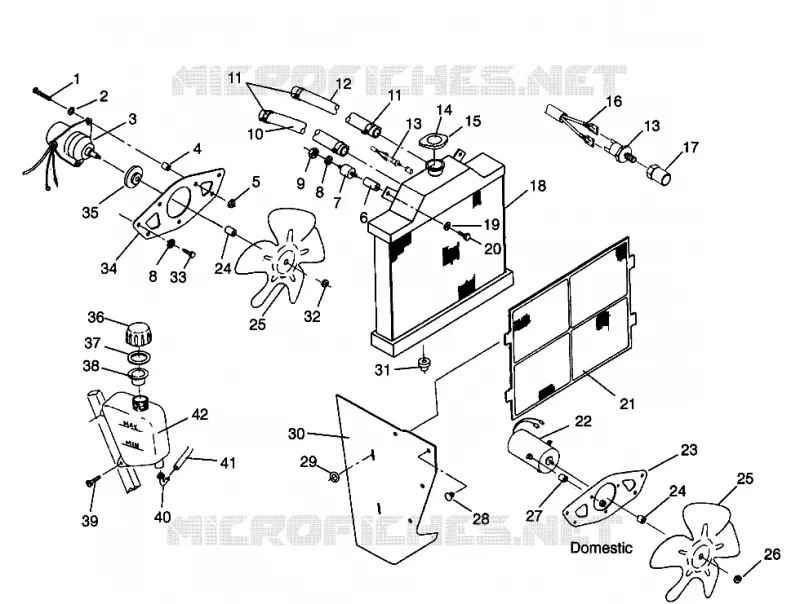

Find the detailed COOLING SYSTEM MAGNUM 2X4 W967544 (4936033603A009) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
