ENGINE MOUNTING (SPORT) SPORT 400L W97BA38C (4940124012A009)
1
2
3
3
4
5
6
7
7
7
8
9
10
10
11
12
13
14
14
16
17
18
19
20
20
20
20
21
22
23
24
25
26
27
27
28
28
29
30
31
32
33
34
35
36
37
38
39
40
41
41
41
41
42
42
43
1
2
3
3
4
5
6
7
7
7
8
9
10
10
11
12
13
14
14
16
17
18
19
20
20
20
20
21
22
23
24
25
26
27
27
28
28
29
30
31
32
33
34
35
36
37
38
39
40
41
41
41
41
42
42
43
1
MT. RUBBER ENG.
3110038
9999999
Not Available
2
MOTOR MOUNT INSULATOR
5430802
9999999
Not Available
3
WASHER
7555823
$7,34 Unit Price incl. VAT
4
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
5
BOLT
7515321
9999999
Not Available
6
CABLE GND-ENGINE
4010132
9999999
Not Available
7
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
8
MOUNT ENG TOP
5241801067
Not Available
9
BR8ES SPARK PLUG; NGK(4)
3070156
$7,34 Unit Price incl. VAT
10
HOSE CLAMP
7080614
$13,64 Unit Price incl. VAT
11
ENGINE HOSE; UPPER
5410570
9999999
Not Available
12
SOLENOID TO START CABLE; DOUBLE BOOT
4010129
9999999
Not Available
13
INSUL.CABLE SOL.
5410346
9999999
Not Available
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
16
BUSHING
5430261
$13,64 Unit Price incl. VAT
17
WASHER
5210748
$7,34 Unit Price incl. VAT
18
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
19
BOLT
7512566
9999999
Not Available
20
NUT LOCK
7542403
9999999
Not Available
21
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
22
MOUNT ENG LOW BLK
1040532067
Not Available
23
BOLT
7512457
$7,34 Unit Price incl. VAT
24
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
25
BOOT CLUTCH INTAKE(400)
5410883
9999999
Not Available
26
MOUNT MOTOR
3110026
9999999
Not Available
27
WASHER SPRINGLOCK
7553001
7552603
$1,56 Unit Price incl. VAT
28
SCREW
7512490
$7,34 Unit Price incl. VAT
29
MOUNT ENGINE
1040231067
Not Available
30
HOSE RETAINER SPRING
7041079
9999999
Not Available
31
HOSE; LOWER ENGINE
5411173
9999999
Not Available
32
DECAL DRAIN RECOIL Substituted by 7078577
7075741
Not Available
33
ENG.(S.B.)EC38PLE-05
3085234
9999999
Not Available
34
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
35
CHECKVALVE VENT
7052047
9999999
Not Available
36
MOUNT REAR MOTOR BLK.
5240542067
Not Available
37
WASHER
7555801
$7,34 Unit Price incl. VAT
38
MOUNT RUBBER ENG.
3110042
9999999
Not Available
39
NUT JAM
7542432
$7,34 Unit Price incl. VAT
40
MT TORQUE STOP RUBBER
3110048
9999999
Not Available
41
HOSE CLAMP
7080236
$3,14 Unit Price incl. VAT
42
FUEL LINE; 600 CM
8450040600
Not Available
43
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT

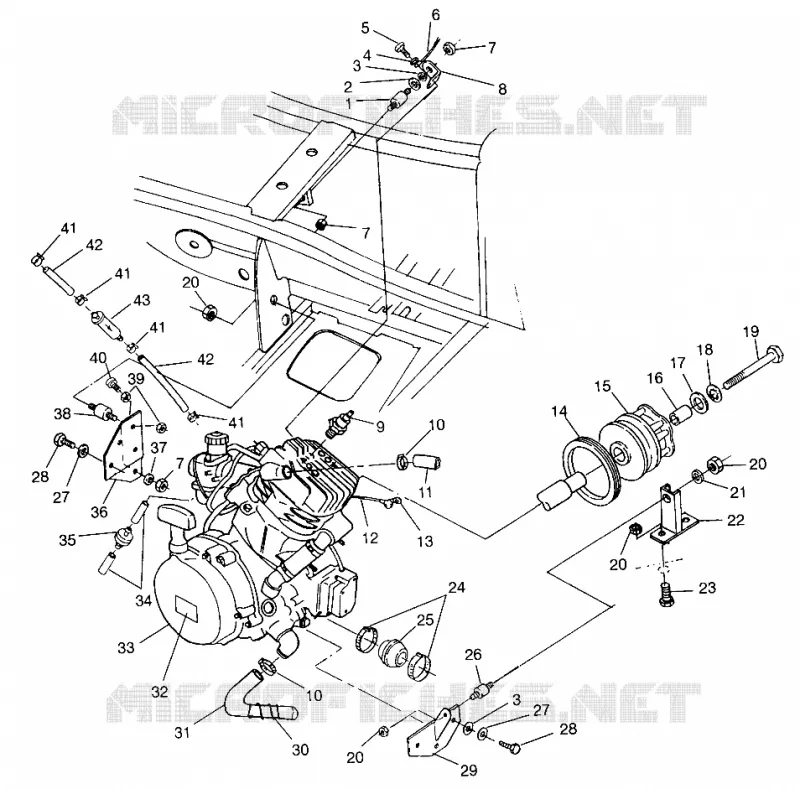

Find the detailed ENGINE MOUNTING (SPORT) SPORT 400L W97BA38C (4940124012A009) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

SPORT 400L 400 1997
