1
Engine displacement
300
2
Year
1997
3
Trim
XPRESS 300 - W97CA28C
4
Parts Catalog

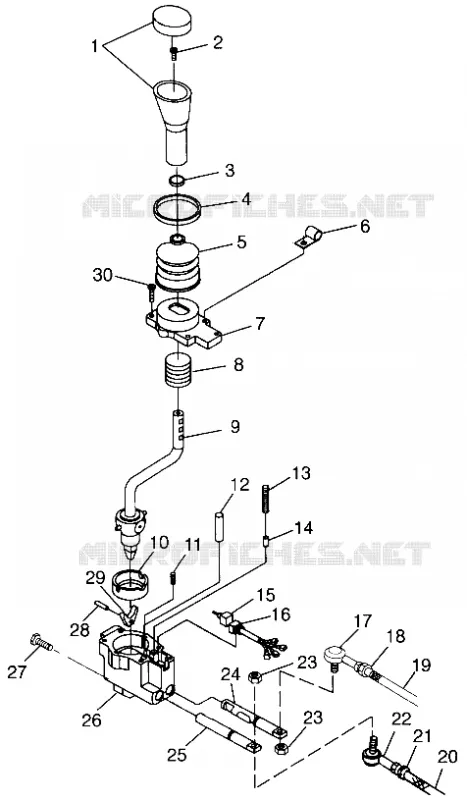

GEAR SELECTOR (300) XPRESS 300 W97CA28C (4939603960C013)
5
Parts Diagram
Parts Catalog
ELECTRICAL/TAILLIGHT XPRESS 300 W97CA28C AND XPRESS 400L W97CA38C (4939603960C012)
by
GEAR SELECTOR (400L) XPRESS 400L W97CA38C (4939603960C014)
GEAR SELECTOR (300) XPRESS 300 W97CA28C (4939603960C013)
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
-
SELECTOR ASM GEAR 300
1341229
Not Available
1
KNOB ASM;HI/LO/REV.
3233195
9999999
Not Available
2
SCREW
7512024
$9,44 Unit Price incl. VAT
3
WIRE STRAP
3233131
9999999
Not Available
4
CLAMP
3233132
9999999
Not Available
5
GEAR SELECTOR BOOT
3233368
9999999
Not Available
6
CLAMP;CABLE;NYLON
3233466
9999999
Not Available
7
COVER GEAR SELECTOR
3233213
Not Available
8
SPRING HOLDING
3233158
9999999
Not Available
9
HANDLE SUBASM GS GEN IV
3233456
9999999
Not Available
10
CUP; BEARING
3233063
9999999
Not Available
11
SPRING CENTERING
3233083
9999999
Not Available
12
PIN STOP
3233062
9999999
Not Available
13
DETENT SPRING
3233069
9999999
Not Available
14
DETENT BULLET
3233060
9999999
Not Available
15
SWITCH GEAR SELECTOR
3233215
9999999
Not Available
16
STRAP WIRE
3233090
9999999
Not Available
17
ROD END; LEFT; 6 MM
7061013
$120,74 Unit Price incl. VAT
18
BOLT
7546702
9999999
Not Available
19
ROD SHIFT-LINK LOW
5020749
9999999
Not Available
20
ROD SHIFT-LINK HIGH
5020748
9999999
Not Available
21
NUT
7546701
9999999
Not Available
22
ROD END; RIGHT; 6 MM
7061014
9999999
Not Available
23
NUT
7546707
7546703
$2,09 Unit Price incl. VAT
24
SLIDE ASM HIGH/REV
3233217
Not Available
25
SLIDE ASMLOW
3233218
9999999
Not Available
26
BODY GEARSELECT
3233457
Not Available
27
SCREW
7515181
9999999
Not Available
28
PIN INTERLOCK
3233070
9999999
Not Available
29
INTERLOCK BUTTERFLY
3233084
9999999
Not Available
30
SCREW
3233085
9999999
Not Available

Find the detailed GEAR SELECTOR (300) XPRESS 300 W97CA28C (4939603960C013) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
