ELECTRICAL/TAILLIGHT ASSEMBLY SWEDISH 4X4 400L S948140 (4926912691C010)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
4
5
6
6
7
7
8
8
9
9
10
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
HARNESS MAIN WIRE
2460453
Not Available
2
ISOLATOR TAILLIGHT
5211391067
Not Available
3
RIVET(50)
7621470
9999999
Not Available
4
WASHER
7555776
7558301
$2,09 Unit Price incl. VAT
5
TAILLIGHT ASSEMBLY
2432034
9999999
Not Available
6
TAIL LIGHT LENS
4032046
$62,99 Unit Price incl. VAT
7
SCREW
4032029
$9,44 Unit Price incl. VAT
8
BULB (10)
4030043
$12,59 Unit Price incl. VAT
9
GASKET
4032045
$7,34 Unit Price incl. VAT
10
BACKING TAILLIGHT
4032064
9999999
Not Available
11
PUSH-ON NUT
7670054
$2,09 Unit Price incl. VAT
12
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
13
SCREW
7512027
$2,09 Unit Price incl. VAT
14
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
15
CABLE SOLENOID/STARTER
4010064
9999999
Not Available
16
CABLE BATT/SOLENOID RED
4010094
9999999
Not Available
17
WASHER
7571602
$9,44 Unit Price incl. VAT
18
DECAL BATTERY [No Longer Available]
7072606
Not Available
19
BATTERY COVER
5431769
$29,39 Unit Price incl. VAT
20
KIT-BATTERY BOLT (SHORT)
2200361
9999999
Not Available
21
CABLE BATT/ENG. BLK.
4010095
9999999
Not Available
22
BATTERY STRAP HOOK
7010032
9999999
Not Available
23
STRAP BATTERY HOLDDOWN
5410424
5418182
$9,44 Unit Price incl. VAT
24
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
25
BATTERY PAD
5810290
5810290-CO
$13,64 Unit Price incl. VAT
26
BATTERY; 195 COLD CRANK AMPS
4140006
$136,49 Unit Price incl. VAT
27
RIVET (10)
7621336
$3,14 Unit Price incl. VAT
28
CLAMP;BLK;5/16 PLASTIC
7080524
9999999
Not Available
29
POWER ASM12V
2410022
9999999
Not Available
30
PIGTAIL POWER
2460442
9999999
Not Available
31
BOLT
7512007
$7,34 Unit Price incl. VAT
32
RIVET POP(10)
7621322
9999999
Not Available
33
BOARD TERMINAL
4040022
Not Available
34
BOLT
7512232
$2,09 Unit Price incl. VAT
35
SHIELD TERM.BOARD
5431152
Not Available
36
HEAT SINK
5210650
9999999
Not Available
37
RECTIFIER VOLTAGE
4060087
9999999
Not Available
38
LIMITER REV SPEED
4060085
9999999
Not Available
39
SCREW(10)
7512018
$6,29 Unit Price incl. VAT

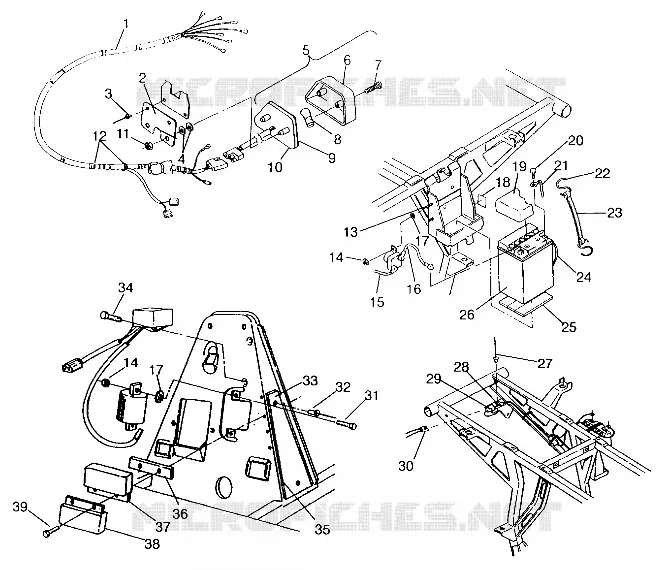

Find the detailed ELECTRICAL/TAILLIGHT ASSEMBLY SWEDISH 4X4 400L S948140 (4926912691C010) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

NORWEGIAN 400L 4X4 400 1994
