1
Engine displacement
700
2
Year
2005
3
Trim
700 / 800 XC SP M-10 F/O
4
Parts Catalog
BRAKE
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION
by
COOLING SYSTEM
BRAKE
1
2
3
4
5
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
24
1
KIT COVER SCREW
2201254
$36,74 Unit Price incl. VAT
2
KIT COVER ASSEMBLY
2201255
2202837
$173,24 Unit Price incl. VAT
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
KIT PARK LEVER SPRING
2201250
$47,24 Unit Price incl. VAT
5
SWITCH BRAKE LIGHT
4010157
9999999
Not Available
5
KIT-ASM MASTER CYLINDER
2202146
2202931
$472,49 Unit Price incl. VAT
6
SCREW .75
7517441
$4,19 Unit Price incl. VAT
7
SCREW 1.12
7512078
$2,09 Unit Price incl. VAT
8
3 NOTCH LEVER KIT
2201943
$99,74 Unit Price incl. VAT
9
SCREW 1.50
7517566
$7,34 Unit Price incl. VAT
10
KIT-SNAP RING
2201945
$15,74 Unit Price incl. VAT
11
KIT-5/8 CARTRIDGE SUB ASM
2201944
9999999
Not Available
12
ASM-CONTROL LH E/R SHOCK BSC
2010218
9999999
Not Available
12
ASM-CONTROL LH E/R BASIC
2010206
2010371
$152,24 Unit Price incl. VAT
13
BUTTON SWITCH HI/LO LH CONTROL
5433291
5438874
$52,49 Unit Price incl. VAT
14
KIT-PIVOT PIN;ALUM W/SNAP RING
2201946
$47,24 Unit Price incl. VAT
15
PARK LEVER AND SPRING KIT
2201251
$83,99 Unit Price incl. VAT
16
LINE-BRAKE BRAIDED
1910607
9999999
Not Available
17
BLEEDER FITTING KIT
2202205
$68,24 Unit Price incl. VAT
18
SCREW
7515534
$9,44 Unit Price incl. VAT
19
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
20
WASHER .380X.813X.150
7556160
$7,34 Unit Price incl. VAT
21
KIT-ASM BRAKE CALIPER STDR LIQ
2202201
9999999
Not Available
22
RETAINING PIN KIT
2202206
$41,99 Unit Price incl. VAT
23
BRAKE PAD KIT
2202202
9999999
Not Available
24
PISTON/SEAL KIT
2202207
$173,24 Unit Price incl. VAT
24
SEAL KIT
2202204
$73,49 Unit Price incl. VAT

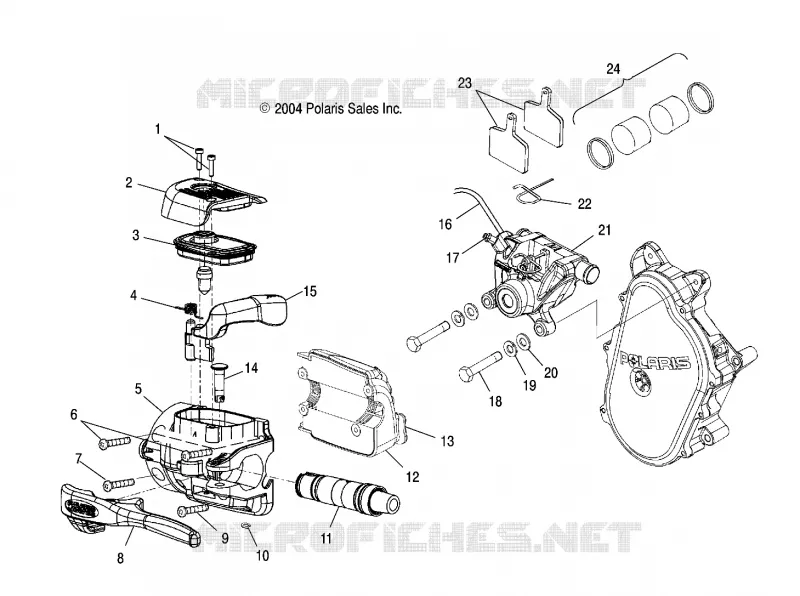

Find the detailed BRAKE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
