1
Engine displacement
1200
2
Year
2002
3
Trim
INT'L VIRAGE TX - W025199I
4
Parts Catalog
CRANKSHAFT AND PISTON
5
Parts Diagram
Parts Catalog
CYLINDER MANIFOLD
by
OIL PUMP
CRANKSHAFT AND PISTON
-
1
1
1
1
1
2
2
2
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
5
5
5
6
6
6
7
8
8
9
10
10
12
13
14
14
15
16
16
17
17
18
19
20
21
-
1
1
1
1
1
2
2
2
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
5
5
5
6
6
6
7
8
8
9
10
10
12
13
14
14
15
16
16
17
17
18
19
20
21
-
CRANKSHAFT ASM 1200 TRIPLE
2201444
9999999
Not Available
1
CIRCLIP PISTON 22MM(2)
3023031
Not Available
2
PIN PISTON 22MM NITRATED
3021164
9999999
Not Available
3
PSTN 84MM PWC.50 NTRD PIN
2201708
9999999
Not Available
3
PST 84MM PWC STD NTRD PIN
2201706
9999999
Not Available
3
PSTN84MM PWC.25 NTRD PIN
2201707
9999999
Not Available
4
RING KIT 84MM.STD
2201449
9999999
Not Available
4
RING KIT 84MM.25 O/S
2201450
9999999
Not Available
4
RING KIT 84MM.50 O/S
2201451
9999999
Not Available
5
CONNE ROD KIT ASM.
2201445
9999999
Not Available
6
PISTON PIN BEARING; 17 NEEDLE
3552112
9999999
Not Available
7
WOODRUFF KEY
7721117
$47,24 Unit Price incl. VAT
8
BUSHING
7555905
9999999
Not Available
9
COUPLER
5432576
9999999
Not Available
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
SEAL
3610044
9999999
Not Available
13
RING RETAINING
7710441
9999999
Not Available
14
BALL BEARING
3585503
$54,59 Unit Price incl. VAT
15
Desc not available [No Longer Available]
5131744
Not Available
16
Desc not available [No Longer Available]
5131745
Not Available
17
LABYRINTH
5131086
9999999
Not Available
18
Desc not available [No Longer Available]
5131746
Not Available
19
SEAL-FLANGE 35X72X7;SS SPRG
5411937
5415026
$41,99 Unit Price incl. VAT
20
O-RING
5410613
$3,66 Unit Price incl. VAT
21
COLLAR CRANKSHAFT
5131195
9999999
Not Available

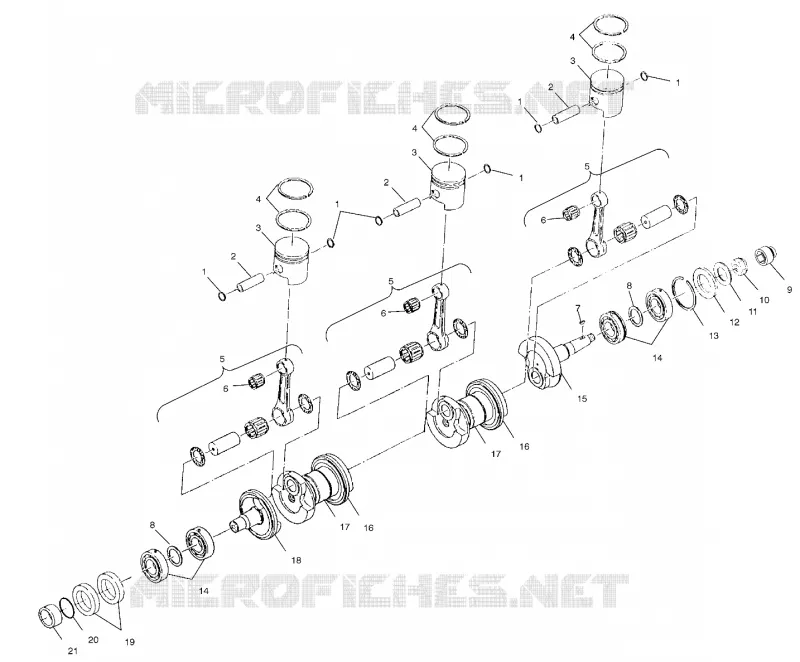

Find the detailed CRANKSHAFT AND PISTON POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
