BRAKE CHAINCASE ALL SWEDISH INDY MODELS (4914521452011A)
1
CALIPER
5630305
9999999
Not Available
2
NUT
7542425
9999999
Not Available
3
BUSHING
1930559
9999999
Not Available
4
BRACKET
5220514
5220514-067
Not Available
5
BOLT
7515478
9999999
Not Available
6
PUCK
1930592
9999999
Not Available
7
CABLE [No Longer Available]
7080315
Not Available
8
CABLE BRAKE [No Longer Available]
7080348
Not Available
9
PAD BRAKE (THICK)
1930588
9999999
Not Available
10
BRACKET
1910024
9999999
Not Available
11
PIN; CLEVIS
7080316
9999999
Not Available
12
CALIPER
1930593
9999999
Not Available
13
SCREW
7512116
9999999
Not Available
14
BUSHING
5332795
9999999
Not Available
15
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
16
SPRING BRAKE RETURN
7041147
9999999
Not Available
17
TAB-JAM NUT LOCK
1930578
Not Available
18
NUT-JAM
1930577
Not Available
19
BOLT & STOP
1930590
Not Available
20
SHAFT-HELIX
1930580
9999999
Not Available
21
LEVER ASM;BRAKE
2050039
9999999
Not Available
22
CLIP-SPEED
7670044
9999999
Not Available
23
SCREW SET
7512465
$7,34 Unit Price incl. VAT
24
SWITCH-BRAKE LITE
4110052
9999999
Not Available
25
SCREW
7511840
9999999
Not Available
26
SCREW
7511848
$7,34 Unit Price incl. VAT
27
ADAPTER BLOCK
5430604
$26,24 Unit Price incl. VAT
28
SWITCH-DIMMER
4110051
9999999
Not Available
29
BLOCK THROTTLE/BRAKE Substituted by 5431265
5430603
Not Available
30
RIVET
7661617
$7,34 Unit Price incl. VAT
31
LEVER-BRAKE
5430602
9999999
Not Available
32
CLIP-SPEED
7670044
9999999
Not Available
33
BOLT
7515301
9999999
Not Available
34
WASHER FLAT
7555701
$7,34 Unit Price incl. VAT
35
WASHER FLAT(10)
7555734
$1,56 Unit Price incl. VAT
36
SPACER
5020291
9999999
Not Available
37
FLANGETTE
5221172
9999999
Not Available
38
BEARING
3514501
9999999
Not Available
39
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
40
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
41
KEY-SQUARE
7721204
9999999
Not Available
42
SHAFT-INPUT
5020323
5020323-067
Not Available
43
KEY (10)
7727003
9999999
Not Available
44
RING RETAINING
7713901
9999999
Not Available
45
DISC BRAKE ASM
1332091
9999999
Not Available
46
COVER CHAINCASE
5223775
5222579
Not Available
47
BOLT
7512246
9999999
Not Available
48
PLUG RUBBER-HOLE .5DIA
5410012
9999999
Not Available
49
SCREW
7511909
9999999
Not Available
50
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
51
NUT-WELL
7541918
9999999
Not Available
52
CHAINCASE GASKET
5410277
9999999
Not Available
53
BOLT
7512325
$4,19 Unit Price incl. VAT
54
WASHER SHAKEPROOF
7577908
7577902
Not Available
55
TIGHTENER ASM.
1332078
9999999
Not Available
56
SPROCKET 19 T
3221034
9999999
Not Available
56
SPROCKET-18T
3221037
9999999
Not Available
56
SPROCKET 21 T
3221035
9999999
Not Available
56
SPROCKET 17 T (Sport)
3221033
Not Available
57
CHAIN 64 PITCH 11W
3224023
9999999
Not Available
57
CHAIN 62P SILENT (SPORT)
3224026
Not Available
58
SPROCKET 35 T11W
3222036
9999999
Not Available
59
BUSHING
7556509
$3,14 Unit Price incl. VAT
60
SPACER
5010128
9999999
Not Available
61
RETAINING RING
7718406
$11,54 Unit Price incl. VAT
62
BEARING
3514303
$20,99 Unit Price incl. VAT
63
SCREW
7512470
9999999
Not Available
64
NUT
7542404
$3,14 Unit Price incl. VAT
65
PIN-SPIRAL
7661504
9999999
Not Available
66
SPACER DISK BRAKE
5020430
9999999
Not Available
67
KIT-TANK VENT
2200190
9990000
Not Available
68
RETAINER RECOIL [No Longer Available]
1011528
Not Available
69
BOLT
7512240
9999999
Not Available
70
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
71
CHAINCASE
5130652
9999999
Not Available
72
BOLT CARRIAGE
7515428
9999999
Not Available
73
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
74
BOLT CARRIAGE
7512331
$7,34 Unit Price incl. VAT
75
DRIVE SHAFT ASM (75 76 77)
1590198
Not Available
75
DRIVESHAFT ASM. (Incl. 76-78) 650 SKS
1590218
Not Available
76
DRIVE SHAFT
5020388
9999999
Not Available
77
SPROCKET 9T
5430571
9999999
Not Available
77
SPROCKET HALF9T
5430993
9999999
Not Available
78
SPEEDO METAL BUSHING
3280019
$20,99 Unit Price incl. VAT
79
WASHER
7555725
9999999
Not Available
80
SNOWMOBILE DRIVE BELT
3211042
$141,21 Unit Price incl. VAT
81
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
82
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
83
O-RING;CHAINCASE
5410401
9999999
Not Available
84
LEVER
1930594
Not Available

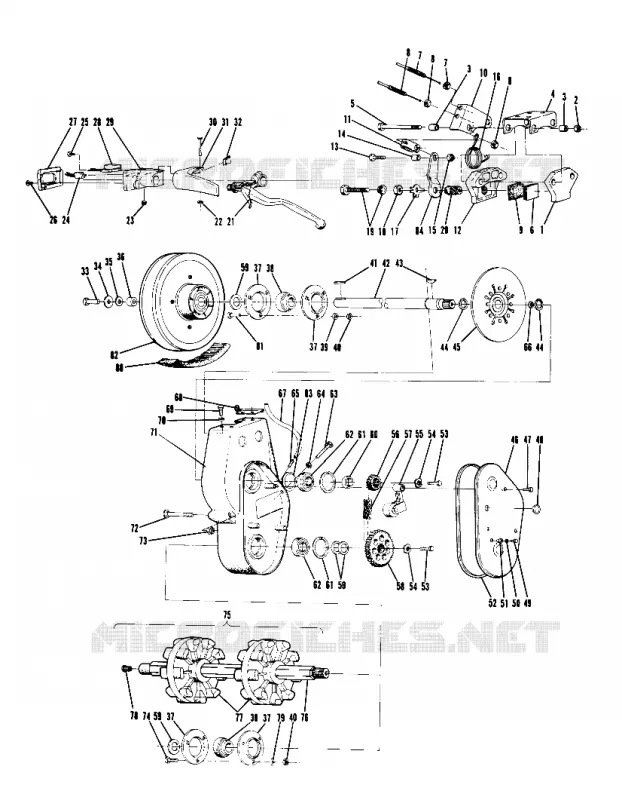

Find the detailed BRAKE CHAINCASE ALL SWEDISH INDY MODELS (4914521452011A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
