ENGINE, BLOWER HOUSING AND RECOIL STARTER for POLARIS 550 INDY from 2020

FUEL SYSTEM, FUEL PUMP AND LINES

DRIVE TRAIN, CLUTCH, SECONDARY

ENGINE, BLOWER HOUSING AND RECOIL STARTER

1

CYLINDER BAFFLE 1 COMPL

3090387

3023400

$161,69 Unit Price incl. VAT

2

HEX FLANGE SCREW; 6 MM X 20 MM

7518141

$8,39 Unit Price incl. VAT

3

BOLT FLANGE(10)

3085693

7519145

$7,34 Unit Price incl. VAT

4

CAP CYLINDER BAFFLE

3085690

5416455

$13,64 Unit Price incl. VAT

5

CYLINDER BAFFLE #2

3085691

3023401

$121,79 Unit Price incl. VAT

6

BOLT M6X65

7520782

$15,74 Unit Price incl. VAT

7

ASSM-RECOIL STARTER CP

3090179

3023393

$278,24 Unit Price incl. VAT

7

RECOIL HOUSING

3090194

3023393

$278,24 Unit Price incl. VAT

8

PLUG RUBBER

3086792

9999999

Not Available

9

ASM-BOLT&WASHER(10)

3082030

7520783

$7,34 Unit Price incl. VAT

10

HANDLE RECOIL ISOLATOR

5414288

$9,44 Unit Price incl. VAT

11

RECOIL HANDLE; GLOSS BLACK

5435154070

Not Available

12

100 FT. NYLON STARTER ROPE

2870621

$47,24 Unit Price incl. VAT

13

SPIRAL SPRING

3083376

3023393

$278,24 Unit Price incl. VAT

14

REEL ASSEMBLY

3083377

$104,99 Unit Price incl. VAT

15

RETURN SPRING

3083463

9999999

Not Available

16

RATCHET

3087207

9999999

Not Available

17

FRICTION SPRING

3083379

9999999

Not Available

18

FRICTION PLATE

3090195

9999999

Not Available

19

WASHER

3090250

9999999

Not Available

20

NUT FLANGE(10)

3083381

9999999

Not Available

21

BOLT&WASHER ASM.(10)

3085688

7520784

$4,19 Unit Price incl. VAT

22

BOLT&WASHER ASM.

3084225

7520778

$6,29 Unit Price incl. VAT

23

BAND; WIRE

3084823

9999999

Not Available

24

PULLEY STARTER

3087181

5141617

$73,49 Unit Price incl. VAT

25

BLOWER HOUSING

3087020

3023514

$346,49 Unit Price incl. VAT

26

STRAIGHT PIN

3084857

9999999

Not Available

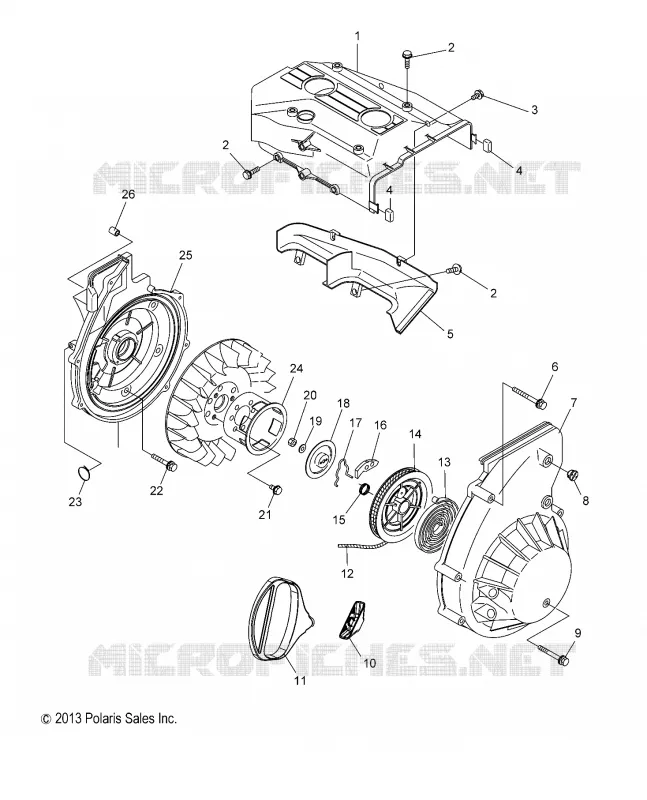

Find the detailed ENGINE, BLOWER HOUSING AND RECOIL STARTER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
