COOLING SYSTEM for POLARIS RZR 800 EFI/EPS ALL OPTIONS - R11VH76/VY76 from 2011

ENGINE, AIR INTAKE SYSTEM

CRANKCASE AND CRANKSHAFT

COOLING SYSTEM

1

CLAMP-HOSE 13/16 -1 1/2

7081174

$13,64 Unit Price incl. VAT

2

HOSE-ENG INLETREAR

5414006

9999999

Not Available

3

SPRING BAND CLAMPS; 32/12

7080843

$7,34 Unit Price incl. VAT

4

HOSE; 1"I.D.

5410958

9999999

Not Available

5

HOSE CLAMP

7080307

$1,56 Unit Price incl. VAT

6

COOLANT TUBE ASSEMBLY

1240551

9999999

Not Available

7

HOSE-LWR RADIATOR LONG

5413372

5414204

$83,99 Unit Price incl. VAT

8

ENGINE OUTLET HOSE REAR

5414005

9999999

Not Available

9

RADIATOR MOUNT BRACKET; LOWER; GS BLK

5254709067

Not Available

10

HOSE-RADIATOR 1.0X7.50

5413371

9999999

Not Available

11

CONNECTOR-TEE 1 1 1 BARBED

7052373

$19,94 Unit Price incl. VAT

12

SCREW M6 X 1.0; L-20MM

7516822

$4,19 Unit Price incl. VAT

13

FAN ASSEMBLY; 11 INCHES; ATV

2410413

$493,49 Unit Price incl. VAT

14

FAN SHROUD

5437845

9999999

Not Available

15

SCREW

7517386

$2,09 Unit Price incl. VAT

16

GROMMET AND INSERT ASSEMBLY

5411975

9999999

Not Available

17

FILLER-REMOTE COOLANT 2FITTING

5438110

9999999

Not Available

18

PRESSURE CAP

1240508

$89,24 Unit Price incl. VAT

19

CORE RADIATOR ASSEMBLY

1240444

1241480

$871,49 Unit Price incl. VAT

20

RADIATOR MOUNT BUSHING; LOWER

5410584

$10,49 Unit Price incl. VAT

21

SPRINGBAND CLAMP; 35/12

7080844

$19,94 Unit Price incl. VAT

22

U CLIP; 6.0 MM X 1.0 MM

7547366

$9,44 Unit Price incl. VAT

23

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

24

HOSE-UPPER; RADIATOR

5413067

5414201

$83,99 Unit Price incl. VAT

25

TIE CABLE; 14 IN

7080761

$5,24 Unit Price incl. VAT

26

FUEL LINE; 1/4 ID

84500031525

Not Available

27

FITTING 90 DEGREE

7052065

$13,64 Unit Price incl. VAT

28

SCREW

7512084

$2,09 Unit Price incl. VAT

29

FILLER NECK BRACKET

5253450

$52,49 Unit Price incl. VAT

30

SURGE TANK

5436936

$152,24 Unit Price incl. VAT

31

CAP PLUG9X(GRN) FLEX TEMP(10)

5433774

$10,49 Unit Price incl. VAT

32

GASKET

5810279

$4,19 Unit Price incl. VAT

33

OVERFLOW CAP

5430743

$10,49 Unit Price incl. VAT

34

RADIATOR MOUNT BRACKET; UPPER; MT BLK

5254710458

Not Available

35

BRKT-FUEL TANK MOUNT;CNTR;BLK

5254161329

Not Available

36

BYPASS HOSE; 3/8 IN; FORMED

5413949

9999999

Not Available

37

HOSE-BYPASS 1IN FORMED

5413950

9999999

Not Available

38

TEE CONNECTOR; 1 X 1 X 3/8

7052494

$17,84 Unit Price incl. VAT

39

HOSE CLAMP

7080699

$3,14 Unit Price incl. VAT

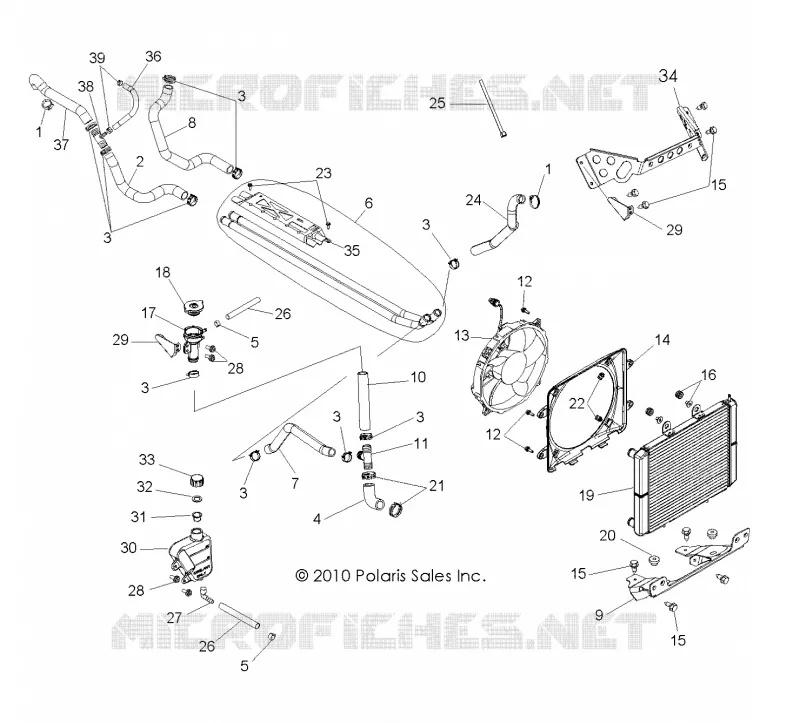

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
