SUSPENSION ASSEMBLY LITE GT 0953133 AND EUROPEAN LITE GT E953133 (4928922892B007)
1
1
1
1
2
3
4
5
6
6
6
6
7
7
7
8
9
10
11
11
12
12
13
13
13
13
13
13
14
14
15
16
16
16
16
17
17
18
19
20
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
35
36
37
38
39
40
41
42
42
43
44
1
1
1
1
2
3
4
5
6
6
6
6
7
7
7
8
9
10
11
11
12
12
13
13
13
13
13
13
14
14
15
16
16
16
16
17
17
18
19
20
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
35
36
37
38
39
40
41
42
42
43
44
1
1
2
3
4
5
6
7
7
8
8
9
10
11
1
RAIL ASM RH 133##(LITE GT) Substituted by 1541120 (Incl. 59 64-66 71-72)
1540692
Not Available
1
RAIL ASM LH 133##(LITE GT) Substituted by 1541119 (Incl. 59 64-66 71-72)
1540691
Not Available
2
SPACER INNER IDLER
5010169
9999999
Not Available
3
WHEEL; IDLER
1594021
9999999
Not Available
4
SPACER IDLER R.INNER
5333086
9999999
Not Available
5
SHAFT IDLER
5020722
9999999
Not Available
6
BUSHING
7556301
$6,29 Unit Price incl. VAT
7
PIVOT ARM SHAFT
5020723
$47,24 Unit Price incl. VAT
8
ADJUSTER BOLT
7515455
9999999
Not Available
9
NUT
7542440
7542404
$3,14 Unit Price incl. VAT
10
BLOCK-IDLER BOLT ADJ.
5130530
$62,99 Unit Price incl. VAT
11
SPACER-IDLER-OUTER
5332641
9999999
Not Available
12
WHEEL IDLER OUTER RED
1594039
9999999
Not Available
13
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
14
WASHER FLAT
7555732
9999999
Not Available
15
RIVET
7621501
$4,19 Unit Price incl. VAT
16
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
17
WASHER
7555804
$7,34 Unit Price incl. VAT
18
SPACER
5332786
$13,64 Unit Price incl. VAT
19
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
20
BOLT
7512659
9999999
Not Available
21
IDLER WHEEL; 5.35 IN
1543018
$115,49 Unit Price incl. VAT
22
BOLT
7512404
$7,34 Unit Price incl. VAT
23
BOGIE WHEEL BRACKET
5130570
$89,24 Unit Price incl. VAT
24
RIVET
7621476
$2,09 Unit Price incl. VAT
25
REINF.; BUMPER
5222629
9999999
Not Available
26
BUMPER; RAIL
5810554
9999999
Not Available
27
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
28
SCREW
7512227
$6,29 Unit Price incl. VAT
29
SLIDER BLK.
5521296
9999999
Not Available
30
COVER-RAIL TIP
5430627
9999999
Not Available
31
RIVET(10)
7621435
$2,09 Unit Price incl. VAT
32
TRACK MOLDED 133
5410727
Not Available
33
PIVOT ARM SHAFT
5020724
9999999
Not Available
34
NUT LOCK
7542403
9999999
Not Available
35
SPACER OUTER
5332784
9999999
Not Available
36
TUBE; SUSPENSION
5332783
9999999
Not Available
37
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
38
SPACER
5332787
9999999
Not Available
39
ROLLER-SPRING
5430540
9999999
Not Available
40
WASHER
7555743
9999999
Not Available
41
SCREW
7515433
$3,14 Unit Price incl. VAT
42
WHEEL INSERT
5431531
$19,94 Unit Price incl. VAT
43
RETAINING RING
7718407
$9,44 Unit Price incl. VAT
44
CHAINCASE BEARING
3514305
$34,64 Unit Price incl. VAT

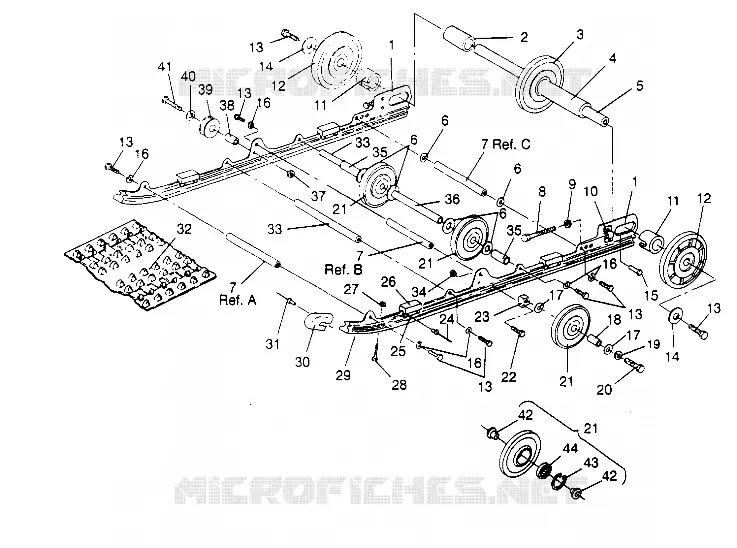

Find the detailed SUSPENSION ASSEMBLY LITE GT 0953133 AND EUROPEAN LITE GT E953133 (4928922892B007) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
