CHASSIS, CAB FRAME for POLARIS RANGER XP KINETIC FS PREMIUM from 2024

BRAKES, REAR CALIPER

CHASSIS, MAIN FRAME AND SKID PLATES

CHASSIS, CAB FRAME

1

CAB FRAME WELD; REAR; MATTE BLACK

1022909458

Not Available

2

CAB FRAME WELD; FRONT; LEFT; MATTE BLACK

1022910458

Not Available

3

CAB FRAME WELD; FRONT; RIGHT; MT BLK

1022911458

Not Available

4

BOLSTER SEAT WELD; MATTE BLACK

1024839458

Not Available

5

BOLSTER WELD; RIGHT; MATTE BLACK

1024804458

Not Available

6

BASIC HEADREST; GLOSS BLACK; RGR

5456311070

Not Available

7

K-PLATE;WSHLD MNT;UPR;RGR EV

2211854

Not Available

8

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

9

SCR-HEXFLGHD M12X90 0600086

7518705

$16,79 Unit Price incl. VAT

10

HEX FLANGE NUT; 12 MM X 1.75 MM

7547441

$9,44 Unit Price incl. VAT

11

SCR-HXFL-M10X1.5X45 10.9 ZFB

752133345

Not Available

12

HEX NUT; 10 MM X 1.5 MM

7547746

$5,24 Unit Price incl. VAT

13

HEX HEAD NUT; 8 MM

7547076

$4,19 Unit Price incl. VAT

14

ROPS (ROPS) GRAB HANDLE GLOSS BLK

5450844070

Not Available

15

BOLT

7519650

$7,34 Unit Price incl. VAT

16

RIVET

7621460

$2,09 Unit Price incl. VAT

17

HEX FLANGE SCREW; 10 MM X 1.5 MM X 20 MM

7519905

$4,19 Unit Price incl. VAT

18

HEX FLANGE SCREW; 8 MM X 1.25 MM X 20 MM

7519133

$3,14 Unit Price incl. VAT

19

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$5,24 Unit Price incl. VAT

20

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

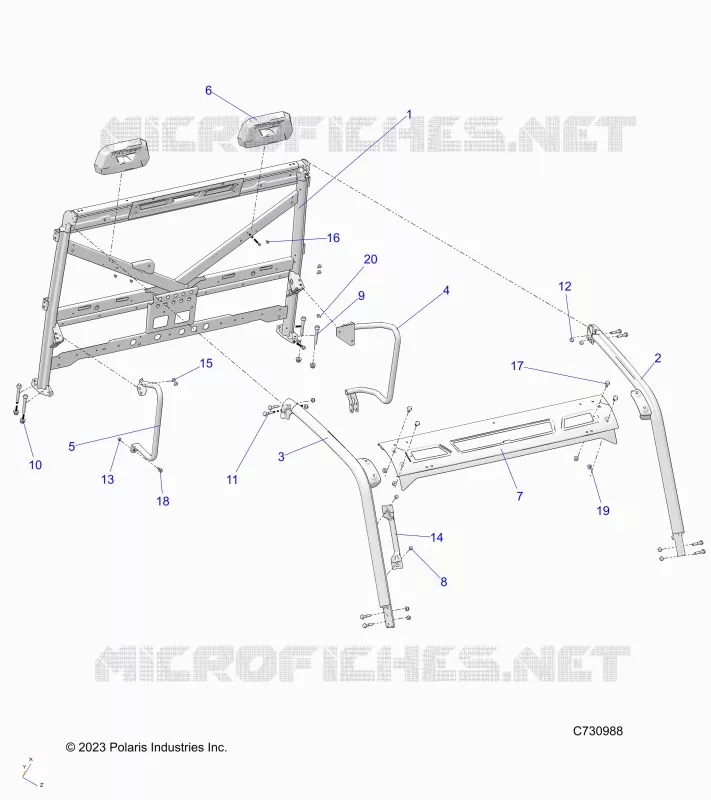

Find the detailed CHASSIS, CAB FRAME POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
