by
GEARCASE ASSEMBLY SWEDISH 6X6 (4923752375035A)
20
56
57
58
59
60
61
-
GEARCASE ASM. (Incl. 1-60)
1341101
Not Available
1
SHIFTER
3231612
9999999
Not Available
2
BALL STEEL
3231502
Not Available
3
SPRING
3231613
Not Available
4
SHAFT; SHIFT
3231614
9999999
Not Available
5
WASHER
3231505
9999999
Not Available
6
BEARING
3231506
9999999
Not Available
7
SEAL OIL
3231507
9999999
Not Available
8
SHAFT INPUT
3231580
9999999
Not Available
9
DESC NOT_AVAILABLE
5010273
Not Available
10
GEAR
3231510
9999999
Not Available
11
BEARING
3231511
9999999
Not Available
12
SHAFT
3231512
9999999
Not Available
13
WASHER
3231513
9999999
Not Available
14
GEAR
3231514
Not Available
15
GEAR
3231582
Not Available
16
SEAL OIL
3231516
9999999
Not Available
17
SUPPORT
3231517
9999999
Not Available
18
CASE LH
3231594
Not Available
19
CASE RH
3231615
9999999
Not Available
20
PACKING
3231553
9999999
Not Available
21
SEAL OIL
3231521
9999999
Not Available
22
SHAFT; SELECT
3231616
9999999
Not Available
23
GEAR
3231585
9999999
Not Available
24
GEAR
3231524
9999999
Not Available
25
WASHER
3231525
Not Available
26
BEARING NEEDLE
3231526
9999999
Not Available
27
WASHER
3231527
9999999
Not Available
28
SEAL OIL
3231528
9999999
Not Available
29
GEAR
3231529
9999999
Not Available
30
SPROCKET
3231530
3221044
$83,99 Unit Price incl. VAT
31
C RING
3231531
9999999
Not Available
32
SHAFT OUTPUT
3231588
9999999
Not Available
33
SPROCKET
3231533
9999999
Not Available
34
WASHER(10)
3231599
Not Available
35
WASHER SPRING(10)
3231545
Not Available
36
BOLT
3231536
9999999
Not Available
37
PLUG DRAIN 20MM MAGNET
3231569
9999999
Not Available
38
GASKET
3231592
Not Available
39
GASKET
3231539
9999999
Not Available
40
PLUG OIL
3231561
9999999
Not Available
41
BOLT
3231602
Not Available
42
BOLT
3231603
Not Available
43
PIPE KNOCK
3231543
9999999
Not Available
44
NUT(10)
3231604
Not Available
46
BOLT
3231605
Not Available
47
BOLT
3231606
Not Available
48
PIPE BREATHER
3231548
Not Available
49
NUT LOCK
3231555
Not Available
50
SHIM 25 0.1
3231563
9999999
Not Available
50
SHIM 25 0.3
3231562
9999999
Not Available
51
DESC NOT_AVAILABLE
5010274
Not Available
52
PIN
3231607
Not Available
53
STUD
3231608
Not Available
54
BEARING
3231609
9999999
Not Available
55
COLLAR
3231587
Not Available
56
SCREW; SET
3231617
9999999
Not Available
57
C RING
3231618
Not Available
58
LEVER LOCKING
3231619
Not Available
59
NUT(10)
3231620
Not Available
60
SEAL; OIL
3231621
9999999
Not Available
61
STUD
3231622
Not Available

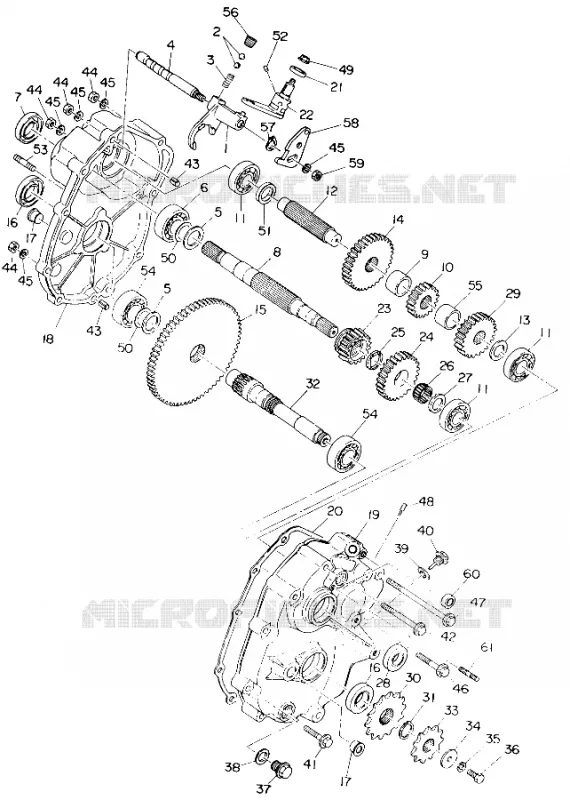

Find the detailed GEARCASE ASSEMBLY SWEDISH 6X6 (4923752375035A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

Euro Big Boss 6x6 autre 1992
