BRAKE LINES AND MASTER CYLINDER for POLARIS RANGER 570 EU from 2015

BRAKE LINES AND MASTER CYLINDER

1

BANJO BOLT; 10 MM X 1.00

1910499

$10,49 Unit Price incl. VAT

2

BANJO BOLT; 10 MM X 1.25-6G

1910958

$14,69 Unit Price incl. VAT

3

ASM-MASTER CYLINDER;UV;GS

1911515

1912463

$482,99 Unit Price incl. VAT

4

BRAKE LINE; FRONT; LEFT

1912283

$89,24 Unit Price incl. VAT

5

LINE-BRK FR 36 90B 30B 85 JJ

1912284

$99,74 Unit Price incl. VAT

6

BRAKE LINE; RIGHT; REAR

1912104

$167,99 Unit Price incl. VAT

7

BRAKE LINE; REAR; LEFT; 39 IN

1912105

$152,24 Unit Price incl. VAT

8

LINE-BRK MCT 57.1 90SB 20F 75J

1912285

$141,74 Unit Price incl. VAT

9

SEALED BRAKE SWITCH; 10 MM X 1.25 MM

4014262

4081264

$153,29 Unit Price incl. VAT

10

SEAL

5413212

9999999

Not Available

11

TEE FITTING BRAKE

7052293

$110,24 Unit Price incl. VAT

12

CLAMP CABLE

7080499

$10,49 Unit Price incl. VAT

13

HOSE CLAMP

7080683

$4,19 Unit Price incl. VAT

14

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

15

SCREW

7512084

$2,09 Unit Price incl. VAT

16

SCR-10-24X1 PN TRX TFS STL-Y

7518552

$7,34 Unit Price incl. VAT

17

POP RIVET

7621323

$2,09 Unit Price incl. VAT

18

CLIP

7670102

$4,19 Unit Price incl. VAT

19

HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM

7518558

$7,34 Unit Price incl. VAT

20

SHIELD-MASTER CYL;GALV

5258202

$16,79 Unit Price incl. VAT

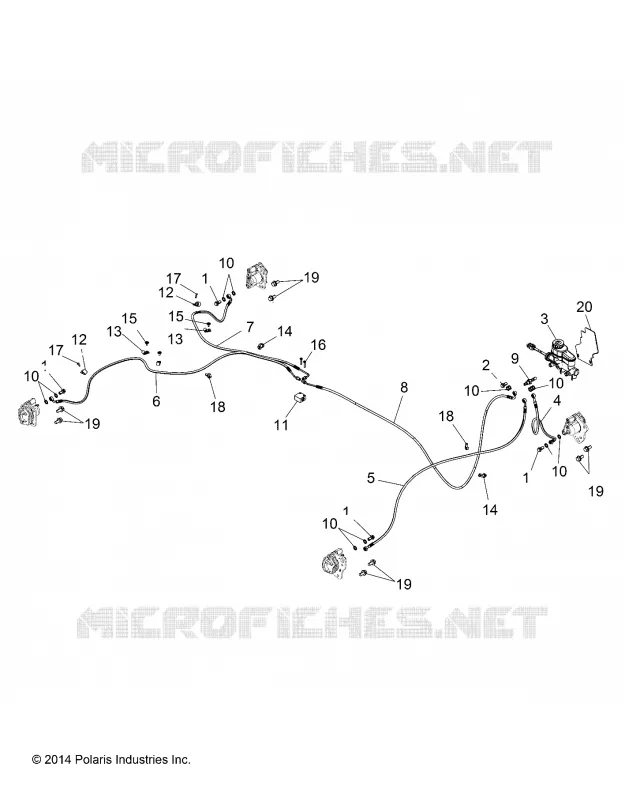

Find the detailed BRAKE LINES AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
