DRIVE TRAIN, MAIN GEARCASE INTERNALS
1
2
3
4
4
5
6
7
7
8
9
9
10
10
10
11
12
13
14
15
16
17
18
19
20
20
21
21
22
22
22
23
24
25
25
26
27
28
29
29
30
30
31
32
32
33
33
33
34
35
36
36
37
38
39
39
40
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
68
69
70
71
72
73
74
75
76
77
78
79
81
82
83
83
84
85
86
87
88
1
COMPLETE GEARCASE ASSEMBLY
1333696
9999999
Not Available
2
SOCKET HEAD W/ MAG PLUG 18 MM X 1.5 MM
3234756
$57,74 Unit Price incl. VAT
3
HEX HEAD FLANGE SCREW 8MMX1.25MMX30MM
3234898
$17,84 Unit Price incl. VAT
4
SCREW
3235206
$13,64 Unit Price incl. VAT
5
SCREW
3235207
$19,94 Unit Price incl. VAT
6
SCREW 6 MM X 1.0 MM 40 MM
3235208
$20,99 Unit Price incl. VAT
7
SOCKET HEAD SCREW; 6 MM X 1 MM X 18 MM
3235332
$7,34 Unit Price incl. VAT
8
HEXFLANGE NUT; NYLON; 8 MM X 1.25 MM
3235210
$14,69 Unit Price incl. VAT
9
CUP WASHER
3234091
$17,84 Unit Price incl. VAT
10
WASHER
3235211
$19,94 Unit Price incl. VAT
11
WASHER
3235212
$25,19 Unit Price incl. VAT
12
WASHER
3235213
$31,49 Unit Price incl. VAT
13
PIN; DOWEL; 6 X 20
3234330
$13,64 Unit Price incl. VAT
14
SPRING-SLOTTED PIN;6MM
7043746
$15,74 Unit Price incl. VAT
15
SNAP RING
3233106
$10,49 Unit Price incl. VAT
16
RETAINING RING
3233834
$19,94 Unit Price incl. VAT
17
RETAINING RING
3233364
$12,59 Unit Price incl. VAT
18
EXTERNAL RETAINING RING
3234318
$5,76 Unit Price incl. VAT
19
RING RETAININGBASICINTRNL2.047
3234269
$17,84 Unit Price incl. VAT
20
RETAINING RING
3234090
$19,94 Unit Price incl. VAT
21
RETAINING RING
3234205
$20,99 Unit Price incl. VAT
22
RETAINING RING
3235214
$17,84 Unit Price incl. VAT
23
RETAINING RING
3235216
$19,94 Unit Price incl. VAT
24
INPUT SHAFT
3235763
$335,99 Unit Price incl. VAT
25
THRUST WASHER
3233378
$17,84 Unit Price incl. VAT
26
THRUST WASHER; .446 X .88 X .025
3234642
$19,94 Unit Price incl. VAT
27
SHIM 1.180 X .995(9)
3234272
$68,24 Unit Price incl. VAT
28
SHIM; 2.040 OD X 1.630 ID
3234273
$26,24 Unit Price incl. VAT
29
NEEDLE BEARING
3233014
$74,54 Unit Price incl. VAT
30
BEARING
3233019
$54,59 Unit Price incl. VAT
31
BEARING
3233020
$80,84 Unit Price incl. VAT
32
BALL BEARING
3233268
$88,19 Unit Price incl. VAT
33
BALL BEARNING
3234065
$80,84 Unit Price incl. VAT
34
NEEDLE BEARING
3233384
$54,59 Unit Price incl. VAT
35
BALL BEARING
3235218
$101,84 Unit Price incl. VAT
36
BALL BEARING
3234652
$27,29 Unit Price incl. VAT
37
BEARING
3235496
$54,59 Unit Price incl. VAT
38
COMPRESSION DETENT SPRING
3234578
$26,24 Unit Price incl. VAT
39
COMPRESSION SPRING
3234078
$47,24 Unit Price incl. VAT
40
COMPRESSION SPRING
3234089
$52,49 Unit Price incl. VAT
41
SPRING WASHER
3235327
$17,84 Unit Price incl. VAT
42
SNORKLE TUBE
3234278
$188,99 Unit Price incl. VAT
43
SHIFT DRUM; MACHINED
3235984
$519,74 Unit Price incl. VAT
44
SECTOR GEAR; 16 TOOTH
3233839
$68,24 Unit Price incl. VAT
45
SECTOR GEAR; 31 TOOTH CUT TO 11 TOOTH
3233832
$68,24 Unit Price incl. VAT
46
PARK PLATE
3235456
$73,49 Unit Price incl. VAT
47
DETENT STAR
3235982
$68,24 Unit Price incl. VAT
48
IDLER SHAFT; 29 TOOTH
3235223
$204,74 Unit Price incl. VAT
49
REVERSE SHAFT; 29 TOOTH
3235224
$272,99 Unit Price incl. VAT
50
FRONT OUTPUT SHAFT
3235394
$246,74 Unit Price incl. VAT
51
BELL CRANK
3235581
$83,99 Unit Price incl. VAT
52
SHIFT COLLAR
3234073
$57,74 Unit Price incl. VAT
53
TUBE-VENT 90-1/4 HOSE
3234230
$19,94 Unit Price incl. VAT
54
STAGE 2 GEAR; 44 TOOTH
3235229
$173,24 Unit Price incl. VAT
55
6 FACE ENGAGEMENT DOG
3235233
$241,49 Unit Price incl. VAT
56
GEAR; 53 TOOTH
3235234
$157,49 Unit Price incl. VAT
57
STAGE 3 GEAR; 46 TOOTH
3235236
$204,74 Unit Price incl. VAT
58
OUTPUT GEAR; FRONT; 13 TOOTH
3235237
$246,74 Unit Price incl. VAT
59
SHIFT SHAFT
3235238
$68,24 Unit Price incl. VAT
60
PARK/LOW SHIFT DOG
3235457
$272,99 Unit Price incl. VAT
61
SHIFT RAIL; SHAFT
3235542
$52,49 Unit Price incl. VAT
62
48T 6 FACE SPROCKET
3235755
$152,24 Unit Price incl. VAT
63
GEAR; 64T
3235774
$152,24 Unit Price incl. VAT
64
WELDMENT BRACKET; REAR
3235399
$89,24 Unit Price incl. VAT
65
SECTOR GEARS COVER
3235713
$209,99 Unit Price incl. VAT
66
OUTPUT GEAR SUBASSEMBLY
3235335
$645,74 Unit Price incl. VAT
67
PINION SHAFT SUBASSEMBLY
3235336
9999999
Not Available
68
SHIFT FORK SUBASSEMBLY
3235920
$136,49 Unit Price incl. VAT
69
ROLLER PAWL
3235452
$68,24 Unit Price incl. VAT
70
LEFT SIDE GEARCASE SUB ASM INTERNAL
3235491
9999999
Not Available
71
COVER SUBASSEMBLY; RIGHT
3235995
$818,99 Unit Price incl. VAT
72
CENTER DRIVE BEARING COVER
3235241
$89,24 Unit Price incl. VAT
73
BRKT-MOUNT(430592)
3235350
$16,79 Unit Price incl. VAT
74
BRACKET MOUNT; REAR
3235398
$125,99 Unit Price incl. VAT
75
PLUG; M18 X 1.5
3234755
$52,49 Unit Price incl. VAT
76
SILENT CHAIN
3234737
$314,99 Unit Price incl. VAT
77
RESISTIVE 2 PIN ROTARY SWITCH
7662299
$209,99 Unit Price incl. VAT
78
TRANSMISSION SPEED SENSOR
4013908
4082135
$204,74 Unit Price incl. VAT
79
O-RING
3234302
$13,64 Unit Price incl. VAT
81
O-RING
3233828
$12,59 Unit Price incl. VAT
82
TRIPLE LIP SEAL; 25 X 80 X 10
3234113
$68,24 Unit Price incl. VAT
83
VITON TRIPLE LIP SEAL; 40 X 70 X 7
3235052
$57,74 Unit Price incl. VAT
84
TRIPLE LIP SEAL
3235495
$73,49 Unit Price incl. VAT
85
PARK CAM
3235983
$283,49 Unit Price incl. VAT
86
OUTPUT SHAFT; FRONT
3235225
$225,74 Unit Price incl. VAT
87
SPACER; 19.4 X 34.0 X 2
3235883
$41,99 Unit Price incl. VAT
88
RETAINING RING
3233045
$9,44 Unit Price incl. VAT

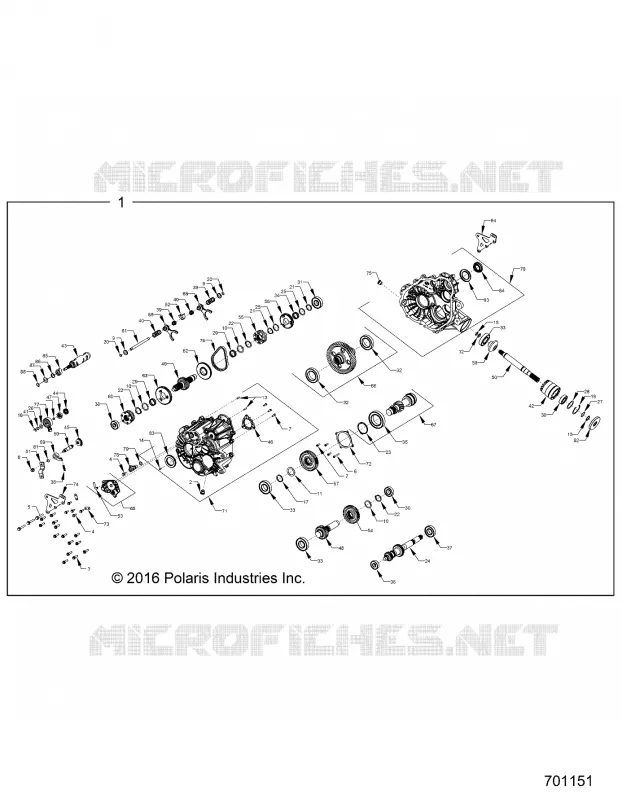

Find the detailed DRIVE TRAIN, MAIN GEARCASE INTERNALS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
