1
Engine displacement
800
2
Year
2001
3
Trim
800 XCR
4
Parts Catalog
OIL TANK AIR BOX
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING
by
CRANKCASE
OIL TANK AIR BOX
1
2
3
4
5
6
7
8
8
8
9
9
10
11
12
13
14
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
1
ASM-FOAM INTAKE TRIPLE
1253382
9999999
Not Available
2
PLENUM INLET
5410834
9999999
Not Available
3
PLENUM-SILENCER XCR
5433989
9999999
Not Available
4
DECAL-FUEL SHUT OFF
7078194
Not Available
5
BRK;FUEL SHUT OFF
5243225
9999999
Not Available
6
SCREW
7517376
7512279
$1,56 Unit Price incl. VAT
7
WASHER; FLAT
7555843
7558302
$3,14 Unit Price incl. VAT
8
WELL NUT
7541923
$10,49 Unit Price incl. VAT
9
WASHER
7552604
$3,14 Unit Price incl. VAT
10
SCREW
7517377
$9,44 Unit Price incl. VAT
11
FITTING HOSE
7052127
9999999
Not Available
12
BOOT CARB/AIRBOX 38MM
5411423
9999999
Not Available
13
BRKT AIRBOX COINED/SLOT
5242892
9999999
Not Available
14
RIVET
7661637
$2,09 Unit Price incl. VAT
15
AIRBOX BOTTOM
5432936
9999999
Not Available
16
SEAL PLENUM
5810946
Not Available
17
BOOT CONE SILENCER OUTLET
5411047
9999999
Not Available
18
DECAL CAUTION
7075351
9999999
Not Available
19
Decal Adjustable Driven Clutch
7073820
Not Available
20
DECAL; GREASING
7073426
9999999
Not Available
21
FLAT WASHER
7555960
$7,34 Unit Price incl. VAT
22
SCREW
7517685
$3,14 Unit Price incl. VAT
23
BOLT
7512276
$9,44 Unit Price incl. VAT
24
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
25
OIL CAP GASKET
5810141
$4,19 Unit Price incl. VAT
26
OIL TANK CAP
5430779
$31,49 Unit Price incl. VAT
27
OIL LEVER SENSOR
4110134
$141,74 Unit Price incl. VAT
28
NUT
7670096
$3,14 Unit Price incl. VAT
29
FITTING 90 DEG 1/8
7052095
$9,44 Unit Price incl. VAT
30
FUEL LINE; 3 MM X 7 MM
8450061600
Not Available
31
DECAL LOW OIL LEVEL
7074664
Not Available
32
BUSHING MACH.
7558707
9999999
Not Available
33
BRACKET-OIL TANK
5243770
9999999
Not Available
34
SCREW(10)
7512222
9999999
Not Available
35
FITTING 3/8 OUTLET
7052110
9999999
Not Available
36
LINE OIL(3/8-1/4)
5411131
9999999
Not Available
37
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
38
FUEL LINE; 1/4 ID
84500031525
Not Available
39
BRKT OILTANK COINED
5241330
9999999
Not Available
40
HOSE CLAMP
7080236
$3,14 Unit Price incl. VAT
41
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
42
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
43
CLAMP HOSE
7080544
9999999
Not Available
44
TANK OIL W/SEND.UNIT HOLE
5432825
9999999
Not Available

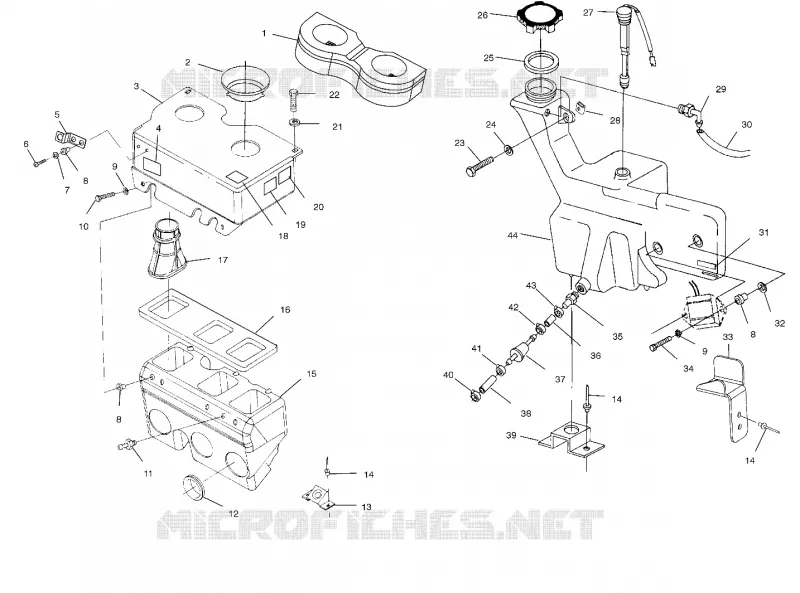

Find the detailed OIL TANK AIR BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
