Engine displacement
330
2
Year
2003
3
Trim
MAGNUM 330 2X4 - A03CB32AA
4
Parts Catalog
SWING ARM/REAR/GEARCASE MOUNTING
5
Parts Diagram
Parts Catalog
HANDLEBAR
by
STRUT
SWING ARM/REAR/GEARCASE MOUNTING
1
2
3
4
23
6
6
6
7
7
8
9
10
11
11
12
12
13
13
14
15
15
16
17
18
18
19
20
21
22
23
24
24
24
25
26
27
28
29
30
31
32
33
34
1
O-RING-0.739X0.879X0.070
5412022
9999999
Not Available
2
HUB-WHEEL AWD MACH
5133360
9999999
Not Available
3
STUD 3/8-24 X 1.12
7515513
9999999
Not Available
4
BRAKE DISC; REAR; 8.125 X .188
5244882
9999999
Not Available
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
BOLT
7517604
9999999
Not Available
7
WASHER
7555721
$2,09 Unit Price incl. VAT
8
NUT-1/2-20 NYLOK Y
7547065
$7,34 Unit Price incl. VAT
9
NUT-JAM
5133387
9999999
Not Available
10
THREADED PIVOT; LEFT
5133388
9999999
Not Available
11
TAPERED ROLLER CONE BEARING
3514399
$40,94 Unit Price incl. VAT
12
TAPERED ROLLER CUP BEARING
3514398
9999999
Not Available
13
FOAM
5812447
9999999
Not Available
14
ASM-SWINGARM 3/4 PIVOT
1541820
9999999
Not Available
15
O-RING; 1.046 X 1.324 X .139
5412202
9999999
Not Available
16
PROP SHAFT ASSEMBLY REAR
1380202
9999999
Not Available
17
PIVOT-THREADED SWINGARM RH
5133389
9999999
Not Available
18
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
19
BOLT-1/2-13X1 1/4 HXHD GR5-Z
7517585
9999999
Not Available
20
AXLE-REAR
5133626
9999999
Not Available
21
SCREW
7517612
9999999
Not Available
22
O-RING
5411531
9999999
Not Available
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
24
PLATE-SKID BLK
5242851067
Not Available
24
PAD-RUBBER
5811716
9999999
Not Available
24
ASM. SKID PLATE REAR
1012881
9999999
Not Available
25
COLLAR-AXLE LOCK
5132698
9999999
Not Available
26
O-RING
5411707
9999999
Not Available
27
DECAL-HITCH1000 LBS.
7170910
9999999
Not Available
28
SPRING PIN
7661913
$7,34 Unit Price incl. VAT
29
CLAMP-BRAKE LINEREAR
5245050
9999999
Not Available
30
SCREW
7512017
9999999
Not Available
31
AXLE TUBE LH BLK VL
1013264067
Not Available
32
BEARING-AXLE TUBE/HUBSTRUT
3514342
3514634
$73,49 Unit Price incl. VAT
33
INTERNAL RETAINING RING
7710507
$4,19 Unit Price incl. VAT
34
BOLT
7512325
$4,19 Unit Price incl. VAT

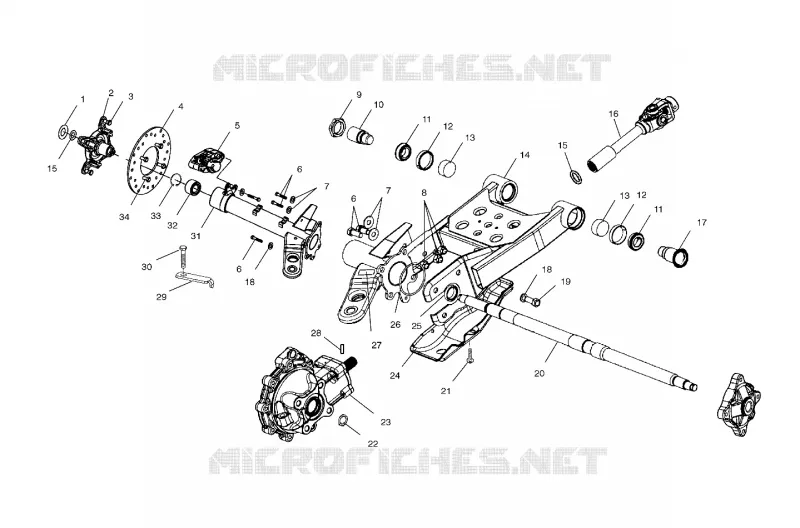

Find the detailed SWING ARM/REAR/GEARCASE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
