1
Engine displacement
570
2
Year
2019
3
Trim
SPORTSMAN 570 EFI X2 EPS
4
Parts Catalog
SEAT, PASSENGER, BACK
5
Parts Diagram
Parts Catalog
ELECTRICAL, VOLTAGE REGULATOR AND MOUNTING
by
SEAT, PASSENGER, BOTTOM
SEAT, PASSENGER, BACK
1
2
3
4
5
5
6
6
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
2
2
3
4
4
5
6
7
7
8
8
9
9
10
10
11
11
12
12
13
14
15
16
1
SCR-5/16-18X3/4 TR/TX-GR5
7518601
$9,44 Unit Price incl. VAT
2
BUMPER-RUBBER 1/2 OD
5413087
$5,24 Unit Price incl. VAT
3
PASSENGER SEAT BASE COVER
5436531
$104,99 Unit Price incl. VAT
4
SEAT BACK SUPPORT WELD; GS BLK
1015676067
Not Available
5
SEAT LATCH GROMMET
5412994
5418181
$6,29 Unit Price incl. VAT
6
SCREW
7512076
$2,09 Unit Price incl. VAT
7
SLIDE-EXTENSION (INDIVIDUAL)
7081379
9999999
Not Available
8
BASE-SLIDER PASS SEAT
5436532
$104,99 Unit Price incl. VAT
9
PLATE-HANDLE SEAT
5250944
$68,24 Unit Price incl. VAT
10
SPRING-LATCH
7043219
$19,94 Unit Price incl. VAT
11
PIN; COTTER
7661010
$1,56 Unit Price incl. VAT
12
ROD-PASSENGER SEAT
5135336
$104,99 Unit Price incl. VAT
13
PASSENGER HANDLE ROD; BACK
5250162
$62,99 Unit Price incl. VAT
14
LATCH-SLIDER CAST
5631980
$17,84 Unit Price incl. VAT
15
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
16
PLATE-RETAINER SLIDE
5249903
$16,79 Unit Price incl. VAT
17
SPACER-.34 ID X .56 OD X .31
7556373
$6,29 Unit Price incl. VAT
18
PLATE-SLIDER PIVOT
5250163
$13,64 Unit Price incl. VAT
19
SCR-SHLDR 5/16X3/8X1/4-20
7518615
$9,44 Unit Price incl. VAT
20
SCREW(10)
7512102
$6,29 Unit Price incl. VAT
21
SCR-#8-32X.375 ;TORX;TRI-Y
7518256
$4,19 Unit Price incl. VAT
22
BRKT-STOP SLIDER
5250454
$12,59 Unit Price incl. VAT
23
SEAT BUN; GLOSS BLACK
5436149070
Not Available
24
BASE-SEAT
5436150
$68,24 Unit Price incl. VAT
25
SCREW
7517652
$9,44 Unit Price incl. VAT
26
LATCH COVER; PASS; BACK; GLOSS BLACK
5436533070
Not Available
27
HANDLE-SEAT
5813086
$62,99 Unit Price incl. VAT
28
NYLOK FLANGED NUT
7542153
$3,14 Unit Price incl. VAT
29
SCREW
7517685
$3,14 Unit Price incl. VAT

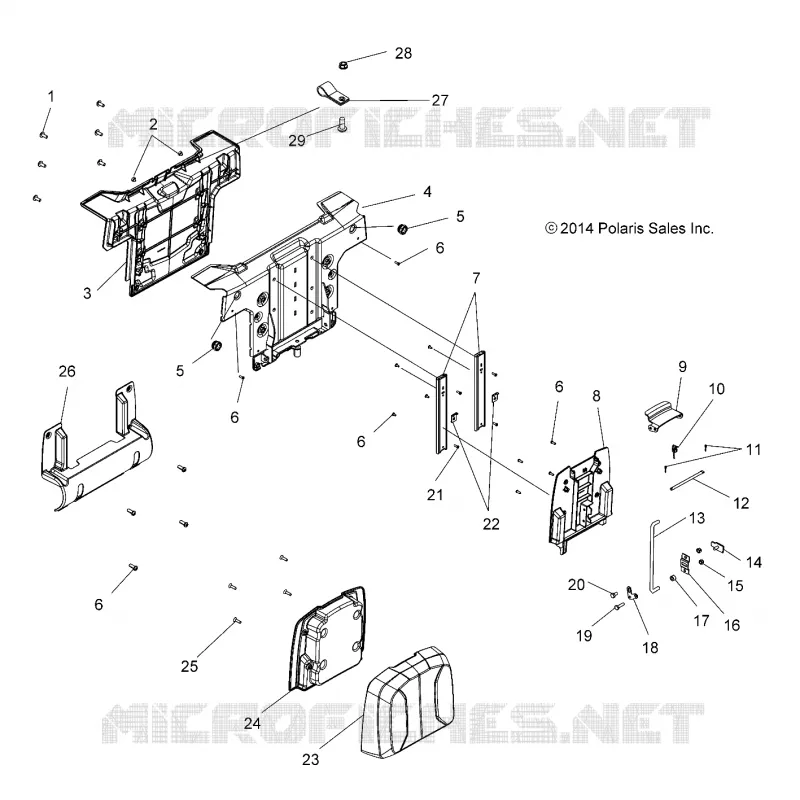

Find the detailed SEAT, PASSENGER, BACK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
