SUSPENSION ASSEMBLY XLT SP/0930667 (4923012301020A) for POLARIS XLT

SUSPENSION ASSEMBLY XLT/0930767 (4923012301019A)

SUSPENSION ASSEMBLY XLT SKS/0930567 (4923012301021A)

RAIL ASM RH

1540725

9999999

Not Available

RAIL ASM LH

1540724

9999999

Not Available

SPACER INNER IDLER

5010169

9999999

Not Available

WHEEL; IDLER

1594021

9999999

Not Available

SPACER CTR IDLER

5010168

9999999

Not Available

SHAFT REAR IDLER

5020395

9999999

Not Available

BUSHING

7556301

$6,29 Unit Price incl. VAT

ARM R.PIVOT BLK.

1540721067

Not Available

SHAFT-PIVOT ARM

5020392

5020723

$47,24 Unit Price incl. VAT

ADJUSTER BOLT

7515455

9999999

Not Available

NUT

7542440

7542404

$3,14 Unit Price incl. VAT

BLOCK-IDLER BOLT ADJ.

5130530

$62,99 Unit Price incl. VAT

SPACER-IDLER-OUTER

5332641

9999999

Not Available

BOLT(10)

7515458

7512492

$2,09 Unit Price incl. VAT

WASHER FLAT

7555732

9999999

Not Available

RIVET

7621501

$4,19 Unit Price incl. VAT

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

NUT LOCK

7542403

9999999

Not Available

FLAT WASHER

7555852

$4,19 Unit Price incl. VAT

WHEEL SPACER

5333116

$13,64 Unit Price incl. VAT

BOLT

7512538

9999999

Not Available

IDLER WHEEL; 5.35 IN

1543018

$115,49 Unit Price incl. VAT

BOLT

7512404

$7,34 Unit Price incl. VAT

SPACER

5630399

$20,99 Unit Price incl. VAT

SPRING ROLLER

5431366

$19,94 Unit Price incl. VAT

BOGIE WHEEL BRACKET

5130570

$89,24 Unit Price incl. VAT

RIVET

7621476

$2,09 Unit Price incl. VAT

REINF.; BUMPER

5222629

9999999

Not Available

SCREW

7512227

$6,29 Unit Price incl. VAT

SLIDER BLK.

5521296

9999999

Not Available

COVER RAIL TIP

5431421

9999999

Not Available

RIVET(10)

7621435

$2,09 Unit Price incl. VAT

SHAFT-PIVOT ARM

5020415

9999999

Not Available

NYLOK NUT

7542122

$2,09 Unit Price incl. VAT

BUMPER; RAIL

5810554

9999999

Not Available

SPACER OUTER

5332784

9999999

Not Available

NYLOK NUT

7542525

$9,44 Unit Price incl. VAT

WASHER

7555804

$7,34 Unit Price incl. VAT

SPACER

5332786

$13,64 Unit Price incl. VAT

WASHER SPLIT LOCK

7553201

$7,34 Unit Price incl. VAT

BOLT

7512659

9999999

Not Available

TRACK BLOCK

5410736

Not Available

WHEEL INSERT

5431531

$19,94 Unit Price incl. VAT

RETAINING RING

7718407

$9,44 Unit Price incl. VAT

CHAINCASE BEARING

3514305

$34,64 Unit Price incl. VAT

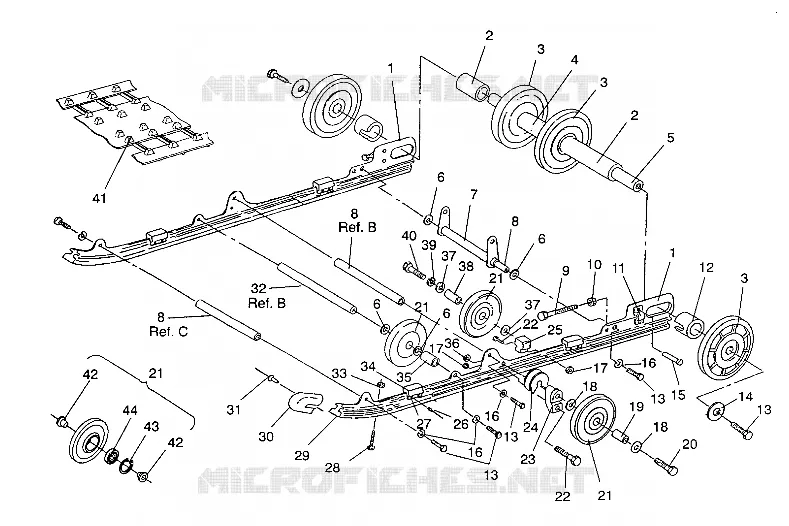

Find the detailed SUSPENSION ASSEMBLY XLT SP/0930667 (4923012301020A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
