SUSPENSION, RAIL, LH/RH for POLARIS 550 INDY LXT ES from 2019

SUSPENSION, CONTROL ARMS AND SPINDLE

SUSPENSION, TORQUE ARM, FRONT

SUSPENSION, RAIL, LH/RH

1

SCR-M6X1.0X30 8.8 HXFL ZOD

7518993

$4,19 Unit Price incl. VAT

2

RAIL TIP; CAP

5438374

$36,74 Unit Price incl. VAT

3

WASHER

7556064

$9,44 Unit Price incl. VAT

4

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

5

SCR-M5X0.8X40 8.8 TR/TX ZOD

7518951

$6,29 Unit Price incl. VAT

6

WASHER-M5.3X14X1.2 ZOD

7556470

$4,19 Unit Price incl. VAT

7

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$6,29 Unit Price incl. VAT

8

JOUNCE BUMPER; REAR

5521498

$16,79 Unit Price incl. VAT

9

BUMPER LINER

5432946

$19,94 Unit Price incl. VAT

10

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$6,29 Unit Price incl. VAT

11

SLIDER .45/74 SERVICE WHITE

5521633

5521633-309

$73,49 Unit Price incl. VAT

12

BASIC COIL-OVER RAIL ASM RIGHT 144

1542952

$871,49 Unit Price incl. VAT

12

BASIC COIL-OVER RAIL ASSEMBLY; LEFT; 144

1542951

$871,49 Unit Price incl. VAT

13

BUMPER-JOUNCE REAR;COIL-OVER

5521812

$13,64 Unit Price incl. VAT

14

HEX FLANGE SCREW 10 MM X 1.5 MM X 100 MM

7519167

$17,84 Unit Price incl. VAT

15

NUT

7547017

$10,49 Unit Price incl. VAT

16

RIVET

7621501

$4,19 Unit Price incl. VAT

17

BLOCK-IDLER BOLT ADJ METRIC

5136570

$62,99 Unit Price incl. VAT

18

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

19

WHEEL MOUNT BLOCK

5631446

$47,24 Unit Price incl. VAT

20

SCR-M8X1.25X25 8.8 HEX ZOD

7518952

$6,29 Unit Price incl. VAT

21

ASM-WHEEL 5.62 6004 BLK

1590419070

Not Available

21

BEARING

3514012

3515142

$34,64 Unit Price incl. VAT

21

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

22

WASHER-SPRING CON 5/16X.118ZOD

7556489

$2,51 Unit Price incl. VAT

23

HEX FLANGE SCREW; 8 MM X 1.25 MM X 80 MM

7519217

$3,14 Unit Price incl. VAT

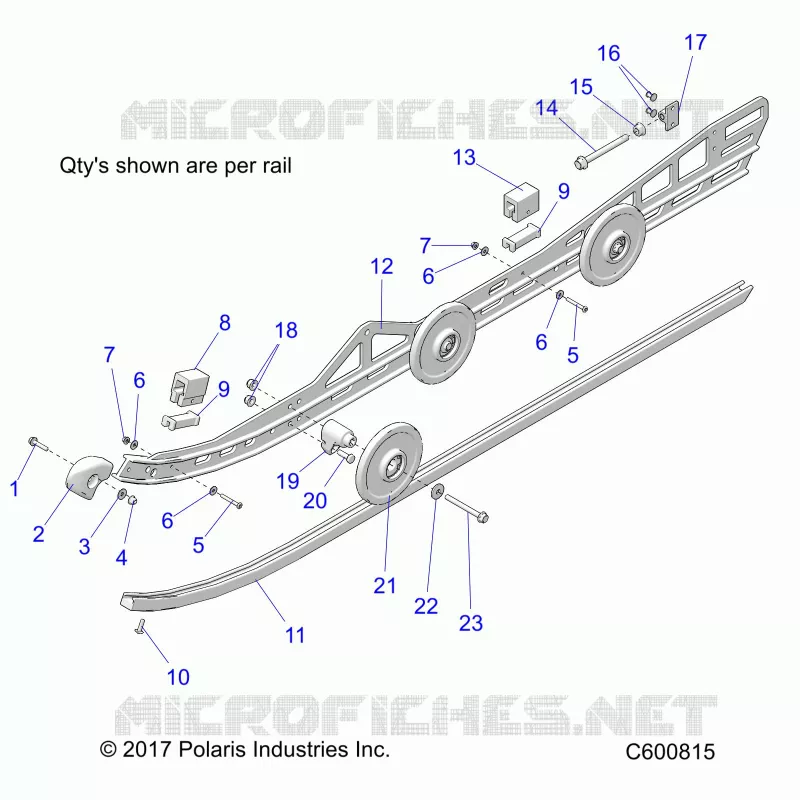

Find the detailed SUSPENSION, RAIL, LH/RH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
