FRONT SUSPENSION for POLARIS 600 HO RMK 144 F/O from 2006

FRONT SUSPENSION

1

WASHER FLAT(10)

7555893

$1,56 Unit Price incl. VAT

2

SCR-3/8-16X3.25 FLG HX GR8-Y

7518384

$6,29 Unit Price incl. VAT

3

PIVOT SHAFT

5133860

$18,89 Unit Price incl. VAT

4

FLANGED NUT; 3/8-16

7547180

$4,19 Unit Price incl. VAT

5

PIVOT BUSHING

5434932

$11,54 Unit Price incl. VAT

6

KIT-LCA RMK SVC LH I RED

2203025293

Not Available

6

KIT-LCA RMK SVC RH I RED

2203026293

Not Available

6

CONTROL ARM KIT LOWER LEFT CLD SLV RMK

2203025385

Not Available

6

CONTROL ARM KIT LOWER RIGHT CLD SLV RMK

2203026385

Not Available

7

RING-RETAINING 1.25 ID HSNG

7710539

$4,19 Unit Price incl. VAT

8

WASHER

7556153

$3,66 Unit Price incl. VAT

9

SCR-3/8-24X3.00 HXCP GR8-Y

7518478

$9,44 Unit Price incl. VAT

10

SPHERICAL BEARING KIT; LOWER

2203107

$74,54 Unit Price incl. VAT

11

NUT-3/8-24 HEX LOC;GR8

7547344

$1,56 Unit Price incl. VAT

12

NUT NYLOK 10-24 Y

7541925

$1,56 Unit Price incl. VAT

13

SWAY BAR SLIDE; 9/16

5435522

9999999

Not Available

14

SCREW

7510504

$10,49 Unit Price incl. VAT

15

NUT-JAM(10)

7542711

$4,19 Unit Price incl. VAT

16

SKI PIVOT BUSHING

5133983

$20,99 Unit Price incl. VAT

17

BUSHING PIVOT

5010158

$27,29 Unit Price incl. VAT

18

SPINDLE ASSEMBLY LEFT RMK

1822797

9999999

Not Available

18

ASM-SPINDLE RMK RH

1822798

9999999

Not Available

19

ROD END-1/2;30

7061124

7061145

$99,74 Unit Price incl. VAT

20

SCR-3/8-16X2.25 SOCHD SP-Y

7518428

$9,44 Unit Price incl. VAT

21

NUT

7547104

$2,09 Unit Price incl. VAT

22

KIT-UCA RMK SVC RH CL SLV

2203024385

Not Available

22

KIT-UCA RMK SVC LH I RED

2203023293

Not Available

22

KIT-UCA RMK SVC RH I RED

2203024293

Not Available

22

KIT-UCA RMK SVC LH CL SLV

2203023385

Not Available

23

SCR-3/8-16X2.25 HX FLG GR5 Y

7518554

$9,44 Unit Price incl. VAT

24

SHOCK-IFS TWIN TUBE AFX

7043049

9999999

Not Available

25

RETAINER SPRING BODY THREADED

1500063

9999999

Not Available

26

ADJUSTABLE PRELOAD SPRING RING

5431734

$104,99 Unit Price incl. VAT

27

SPRING-COMP IFS 10.75/100 BLK

7041551067

Not Available

28

RETAINER SPRING SLOTTED CAST

5630580

5020618

$36,74 Unit Price incl. VAT

29

IFS SHOCK

7043090

9999999

Not Available

30

SPRING-COMP IFS 10.80/100FOXBK

7041576067

Not Available

31

SCR-3/8-16X2 FLG HX GR5 Z

7518278

$13,64 Unit Price incl. VAT

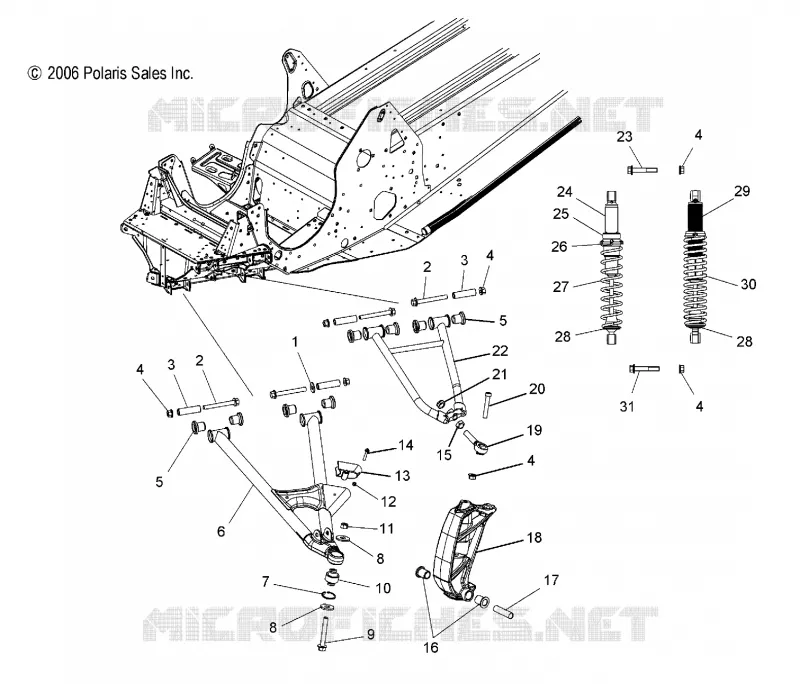

Find the detailed FRONT SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
