SUSPENSION
1
1
2
2
3
3
3
3
4
4
5
5
5
6
6
6
6
6
6
6
7
7
8
8
9
9
10
10
11
12
13
14
15
15
16
17
16
16
20
20
20
21
22
16
24
24
24
25
26
26
27
27
28
29
1
1
2
2
3
3
3
3
4
4
5
5
5
6
6
6
6
6
6
6
7
7
8
8
9
9
10
10
11
12
13
14
15
15
16
17
16
16
20
20
20
21
22
16
24
24
24
25
26
26
27
27
28
29
1
SCREW
7517247
9999999
Not Available
2
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
3
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
4
BRKT-SHAFT SUPPORT
5241443
9999999
Not Available
5
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
6
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
7
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
8
WASHER
7571629
7556130
$11,54 Unit Price incl. VAT
9
WHEEL IDLER SCRL C.RED
1594083256
Not Available
10
SPACER; IDLER
5432535
$20,99 Unit Price incl. VAT
11
BUSHING
7555918
$3,14 Unit Price incl. VAT
12
PLAIN WHEEL ASSEMBLY
1594087
9999999
Not Available
13
IDLER SPACER; LONG
5333285
$20,99 Unit Price incl. VAT
14
ILDER SHAFT
5020744
9999999
Not Available
15
SCREW
7517353
9999999
Not Available
16
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
17
WHITE SLIDER
5521452
$73,49 Unit Price incl. VAT
18
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
19
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
20
TRACK 136X1 LIGHTNING
5411797
9999999
Not Available
20
CLIP; TRACK(CAMOPLAST);(10)
5222839
5251273
$18,89 Unit Price incl. VAT
20
CLIP GUIDE(10)
5222840
5251274
$13,64 Unit Price incl. VAT
21
PIVOT ARM SHAFT
5020723
$47,24 Unit Price incl. VAT
22
PIVOT ARM SHAFT
5020724
9999999
Not Available
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
24
SHAFT
5333404
$47,24 Unit Price incl. VAT
25
ARM SHOCK PIVOT
1541001067
Not Available
26
WAVE SPRING WASHER
7555795
$2,09 Unit Price incl. VAT
27
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
28
BOLT
7515472
$4,19 Unit Price incl. VAT
29
ARM REAR PIVOT
1541241067
Not Available

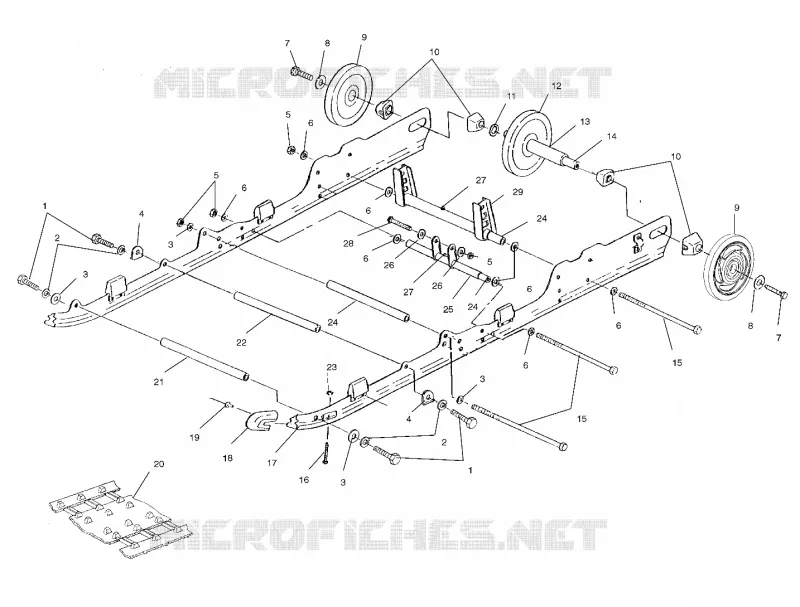

Find the detailed SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

550 SPORT TOURING 550 2002
