1
Engine displacement
300
2
Year
1997
3
Trim
XPRESS 300 - W97CA28C
4
Parts Catalog

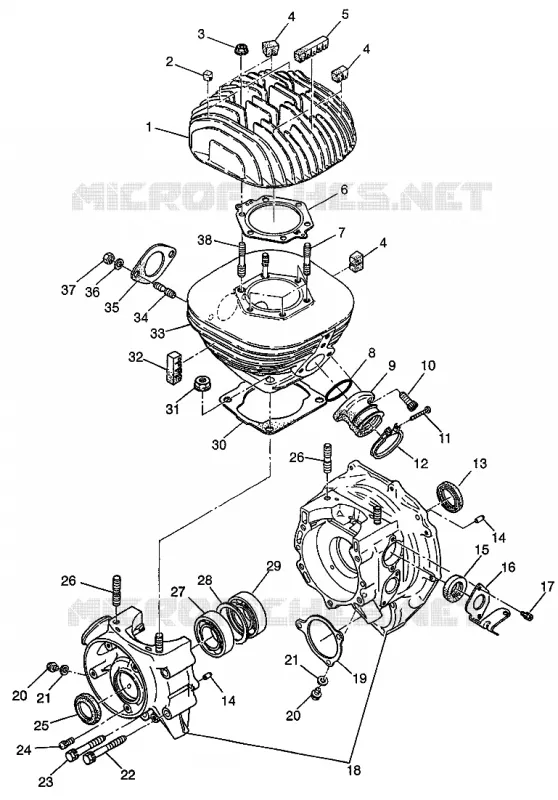

CRANKCASE AND CYLINDER (300) XPRESS 300 W97CA28C (4939603960D003)
5
Parts Diagram
Parts Catalog
GEARCASE XPRESS 300 W97CA28C AND XPRESS 400L W97CA38C (4939603960D001)
by
CRANKCASE AND CYLINDER (400L) XPRESS 400L W97CA38C (4939603960D005)
CRANKCASE AND CYLINDER (300) XPRESS 300 W97CA28C (4939603960D003)
1
2
3
4
4
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
20
21
21
22
23
24
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
1
2
3
4
4
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
20
21
21
22
23
24
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
1
HEAD; CYLINDER
3085097
9999999
Not Available
2
FIN DAMPER #2
3083930
9999999
Not Available
3
FLANGE NUT
3082910
9999999
Not Available
4
FIN DAMPER B
3084799
9999999
Not Available
5
FIN DAMPER A
3084798
9999999
Not Available
6
GASKET HEAD
3085098
9999999
Not Available
7
STUD
3080283
9999999
Not Available
8
O-RING
3084292
9999999
Not Available
9
CARBURETOR ADAPTER
3085013
9999999
Not Available
10
SOCKET HEAD BOLT
3081330
9999999
Not Available
11
PAN HEAD SCREW
3081497
9999999
Not Available
12
BAND ASSEMBLY ADAPTER
3082257
9999999
Not Available
13
OIL SEAL
3082162
9999999
Not Available
14
PIN; DOWEL
3080103
9999999
Not Available
15
GROMMET
3084801
9999999
Not Available
16
BRACKET WIRE
3084800
Not Available
17
BOLT&WASHER ASM.(10)
3084802
9999999
Not Available
18
CRANKCASE ASM. (Incl. 15-17 25-29 31)
3084791
Not Available
19
GASKET STARTER NON ASBESTOS
3085283
9999999
Not Available
20
PLUG DRAIN
3083767
9999999
Not Available
21
GASKET; ALUM;
3082758
7555998
$2,09 Unit Price incl. VAT
22
ASM. BOLT AND WASHER
3080739
9999999
Not Available
23
BOLT&WASHER ASSY.
3083615
9999999
Not Available
24
SCREW&WASHER ASM.
3081635
9999999
Not Available
25
OIL SEAL
3084581
9999999
Not Available
26
STUD
3084119
9999999
Not Available
27
BALL BEARING
3084121
9999999
Not Available
28
SPACER
3084792
9999999
Not Available
29
BALL BEARING
3084775
9999999
Not Available
30
GASKET CYL NA
3084795
9999999
Not Available
31
FLANGE NUT
3082911
7547013
$3,14 Unit Price incl. VAT
32
DAMPER FIN
3083929
9999999
Not Available
33
CYLINDER (Incl. 10 36 40)
3084793
Not Available
34
STUD
3080016
9999999
Not Available
35
GASKET EXH
3084439
9999999
Not Available
36
LOCK WASHER
3080530
9999999
Not Available
37
NUT
3080285
9999999
Not Available
38
STUD
3084794
9999999
Not Available

Find the detailed CRANKCASE AND CYLINDER (300) XPRESS 300 W97CA28C (4939603960D003) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
