WISHBONES for POLARIS TRAIL BLAZER - A02BA25CA/CD from 2002

WISHBONES

1

NYLOCK NUT

7542439

$2,09 Unit Price incl. VAT

2

SEAL BOOT ROD END 1/2 IN

5411291

5412928

$20,99 Unit Price incl. VAT

3

ROD END;RH

7061034

7061139

$115,49 Unit Price incl. VAT

4

NUT-JAM(10)

7542711

$4,19 Unit Price incl. VAT

5

TIE ROD

5020927

$83,99 Unit Price incl. VAT

6

NUT JAM; LEFT

7547028

$4,19 Unit Price incl. VAT

7

BOOT SEAL ROD END 10MM

5411920

5412929

$20,99 Unit Price incl. VAT

8

ROD END 10MM 1/2-20LH 42 DEG

7061054

7061138

$104,99 Unit Price incl. VAT

9

TIE ROD 1/2-20X14.0 ASM.

1820806

1822851

$204,74 Unit Price incl. VAT

10

BOLT 10 MM X 1.25 MM X 65 MM

7517909

$10,49 Unit Price incl. VAT

11

WASHER

7556099

$3,14 Unit Price incl. VAT

12

NUT-M10X1.25-HX-LOCK-Y

7547177

7548155

$1,56 Unit Price incl. VAT

13

COTTER PIN

7661203

$2,09 Unit Price incl. VAT

14

BRACKET BALLJOINT

5240717

9999999

Not Available

15

SOCKET BOLT

7512284

$2,09 Unit Price incl. VAT

16

BOOT; RUBBER

5410548

5412658

$9,44 Unit Price incl. VAT

17

BALL-JOINT 52 DEG

7080927

7061306

$52,49 Unit Price incl. VAT

18

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

19

BUSHING A ARM LONG

5433066

5436973

$9,44 Unit Price incl. VAT

20

A-ARM SPACER BUSHING

5020677

$19,94 Unit Price incl. VAT

21

FITTING LUBRICATION THREADED(1

7080433

$2,09 Unit Price incl. VAT

22

CASTLE NUT

7542438

$3,14 Unit Price incl. VAT

23

A-FRAME KIT RH (1541455)

2201602

2202277-067

$225,74 Unit Price incl. VAT

23

A-FRAME KIT LH (1541454)

2201601

2202276-067

$225,74 Unit Price incl. VAT

24

SHAFT; A-ARM

5020681

5133806

$52,49 Unit Price incl. VAT

25

SCREW

7512492

$2,09 Unit Price incl. VAT

26

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

27

BOLT

7517527

9999999

Not Available

27

BOLT-3/8-24X4 SPECIAL FLANGE-Y (10)

7518033

9999999

Not Available

27

BOLT-3/8-24X4 HX SEM/Y .86D

7517930

9999999

Not Available

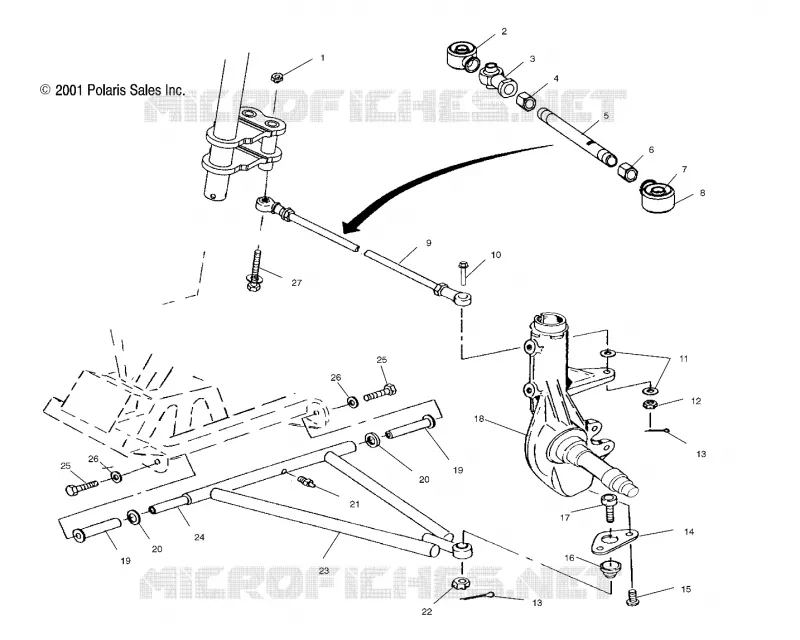

Find the detailed WISHBONES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
