Engine displacement
330
2
Year
2005
3
Trim
MAGNUM 330 4X4 - A05CD32AA
4
Parts Catalog
FUEL TANK AND CARBURETOR MOUNTING
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING
by
AIR BOX
FUEL TANK AND CARBURETOR MOUNTING
1
2
3
4
5
6
7
8
8
9
10
11
12
13
13
14
15
16
17
18
18
18
19
19
19
20
21
22
23
24
25
26
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
22
23
24
25
26
26
1
ASM-FUEL TANK
2520409
9999999
Not Available
2
GASKET
5812123
$10,49 Unit Price incl. VAT
3
KIT GAUGE FUEL
2873626
2871442
$26,24 Unit Price incl. VAT
4
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
5
TANK VENT
5431053
9999999
Not Available
6
BOLT
7512277
$9,44 Unit Price incl. VAT
7
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
8
COVER MOUNT FUEL BRACKET RIGHT PLTD
5222155
9999999
Not Available
8
FUEL COVER MOUNT BRACKET LEFT PLTD
5222154
9999999
Not Available
9
FOAM-SEAL;17"
5811899
9999999
Not Available
10
HEX NUT
7542105
$7,34 Unit Price incl. VAT
11
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
12
BRKT CARBURETOR SUPPORT BLK
5245671067
Not Available
13
NUTSERT HEX
7547069
$7,34 Unit Price incl. VAT
14
SCREW
7517505
$3,14 Unit Price incl. VAT
15
FUEL VALVE KNOB
5432559
9999999
Not Available
16
FUEL VALVE NUT
5432733
9999999
Not Available
17
3-WAY VALVE
7052161
$83,99 Unit Price incl. VAT
18
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
19
LINE FUEL-1/4 DP SAE J30R9
8450103
8450117-250
$99,74 Unit Price incl. VAT
20
SCREW AND WASHER
3084205
9999999
Not Available
21
MOUNT CARBURETOR BLK
5245674067
Not Available
22
MOUNT CARBURETOR
3110050
$19,94 Unit Price incl. VAT
23
BOLT
7512276
$9,44 Unit Price incl. VAT
24
FLAT WASHER
7555859
$2,09 Unit Price incl. VAT
25
SCREW
7515136
$2,09 Unit Price incl. VAT
26
FITTING-FUEL DUAL OUTLET
7052364
9999999
Not Available

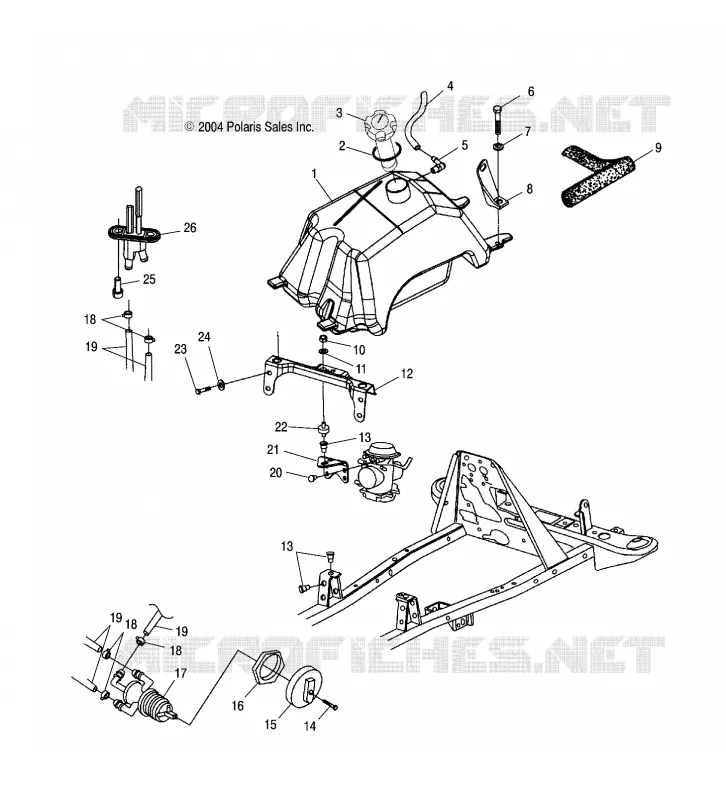

Find the detailed FUEL TANK AND CARBURETOR MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
