1
Engine displacement
600
2
Year
2003
3
Trim
600 / 700 / 800 PRO X
4
Parts Catalog
CYLINDER (700)
5
Parts Diagram
Parts Catalog
CYLINDER (600)
by
CYLINDER (800)
CYLINDER (700)
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
33
34
35
36
37
1
CLAMP HOSE SS
7080681
$17,84 Unit Price incl. VAT
2
SCREW (10)
7517398
$6,29 Unit Price incl. VAT
3
HOSE CLAMP
7080683
$4,19 Unit Price incl. VAT
4
CARBURETOR ADAPTER 40 MM
1253485
9999999
Not Available
5
REED BLOCK STUFFER NOK
5433151
9999999
Not Available
6
VALVE REED ASSEMBLY
1201825
9999999
Not Available
7
O-RING LIP SEAL
5411521
9999999
Not Available
8
THERMOSTAT-120 F W/O BYPASS
7052258
7052433
$89,24 Unit Price incl. VAT
9
COVER-THERMOSTAT M6 BLEED LG
5630992
9999999
Not Available
10
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
11
FLAT WASHER
7555998
$2,09 Unit Price incl. VAT
12
SCREW M6X1.0 X 13 SL/HX/FL-Z
7517679
$25,19 Unit Price incl. VAT
13
SCREW 8 MM X 1.25 MM X 60 MM
7517534
9999999
Not Available
14
SCR-M6X1.0X45 HX-FL-Y/D
7517950
$10,49 Unit Price incl. VAT
15
TEMPERATURE SENSOR
4010398
9999999
Not Available
16
COVER-HEAD 81MM 700 RED E-COAT
5631201366
Not Available
17
RUBBER SEAL HEAD
5411294
9999999
Not Available
18
O RING
5410917
$1,56 Unit Price incl. VAT
19
HEAD-CYL 81MM TWN SNO EV W/OMA
3021323
9999999
Not Available
20
O-RING 4.98 X 5.129 X .07
5412232
$11,54 Unit Price incl. VAT
21
O-RING
5410932
$36,74 Unit Price incl. VAT
22
VALVE-GUILLOTINE GEN 3.5;700EV
5132669
9999999
Not Available
23
GASKET-BASE TO CYL EXH VALVE (10)
5812350
5815584
$11,54 Unit Price incl. VAT
24
ASM-BASE EXH VALVE DOM
1202216
9999999
Not Available
25
WASHER-BELLOWS EXH VALVE DOM
5132950
5135163
$8,39 Unit Price incl. VAT
26
BELLOWS-EXHAUST VALVE FABRIC
5412147
5414495
$89,24 Unit Price incl. VAT
27
CAP/NUT BELLOWS-EXH VALVE DOM
5631381
5631687
$52,49 Unit Price incl. VAT
28
COMPRESSION SPRING; GREEN/YELLOW
704178608
Not Available
29
HOUSING-BELLOWS EXH VALVE BUSH
5434599
1202640
$27,29 Unit Price incl. VAT
30
SCREW
7516820
$10,49 Unit Price incl. VAT
31
SCR-M6X1.0X50.0 HX/FL-YD (10)
7517932
$7,34 Unit Price incl. VAT
32
CYLINDER 81 MM SNO EV
3021340
9999999
Not Available
33
CYLINDER BASE GASKET; METAL 700
5812362
9999999
Not Available
34
NUT
7547013
$3,14 Unit Price incl. VAT
35
FITTING 1/2ID.HOSE
7052222
$41,99 Unit Price incl. VAT
36
RETAINER SS.
7080654
9999999
Not Available
37
WASHER
7555836
9999999
Not Available

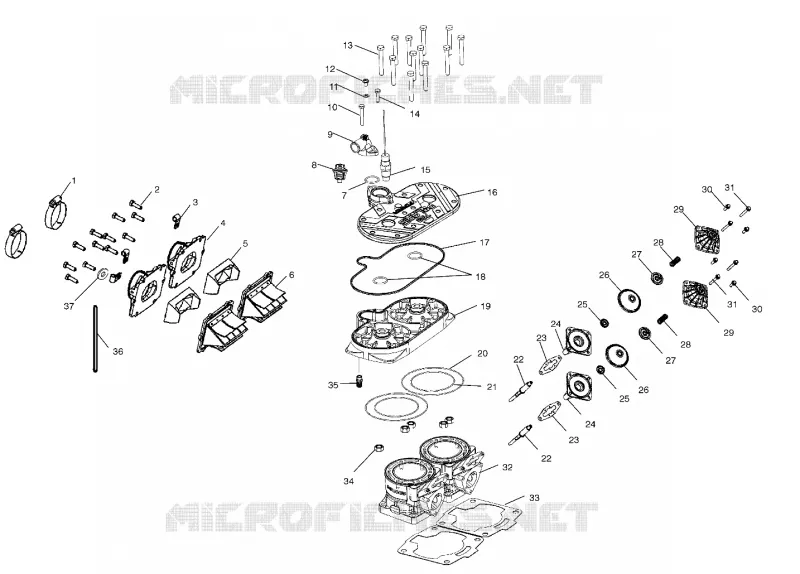

Find the detailed CYLINDER (700) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
