1
Engine displacement
1000
2
Year
2020
3
Trim
RZR RS1
4
Parts Catalog
CHASSIS, CAB
5
Parts Diagram
Parts Catalog
SEAT BELT MOUNTING
by
CHASSIS, MOUNTING, FRONT GEARCASE
CHASSIS, CAB
1
2
3
4
5
6
7
8
9
10
11
12
1
ROPS WELD; MAIN; LEFT; MATTE BLACK
1023178458
Not Available
2
ROPS (ROPS) MAIN WELD RHT MT BLK
1023179458
Not Available
3
ROPS (ROPS) UPR CROSS MT BLK
1023180458
Not Available
4
ROPS WELD; LOWER CROSS; MATTE BLACK
1023181458
Not Available
5
RACK SUPPORT ASSEMBLY; REAR; MATTE BLACK
1024204458
Not Available
6
COVER-HIGH INTAKE; GLOSS BLACK
5453973070
Not Available
7
BOLT
7519650
$7,34 Unit Price incl. VAT
8
BOLT M10 X 1.5 X 45
7519906
$9,44 Unit Price incl. VAT
9
HEX FLANGE SCREW 10 MM X 1.25 MM X 55 MM
7519956
$4,19 Unit Price incl. VAT
10
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
11
U-TYPE NUT; M6-1.0
7547674
$2,09 Unit Price incl. VAT
12
HEX NUT; 10 MM X 1.5 MM
7547746
$5,24 Unit Price incl. VAT

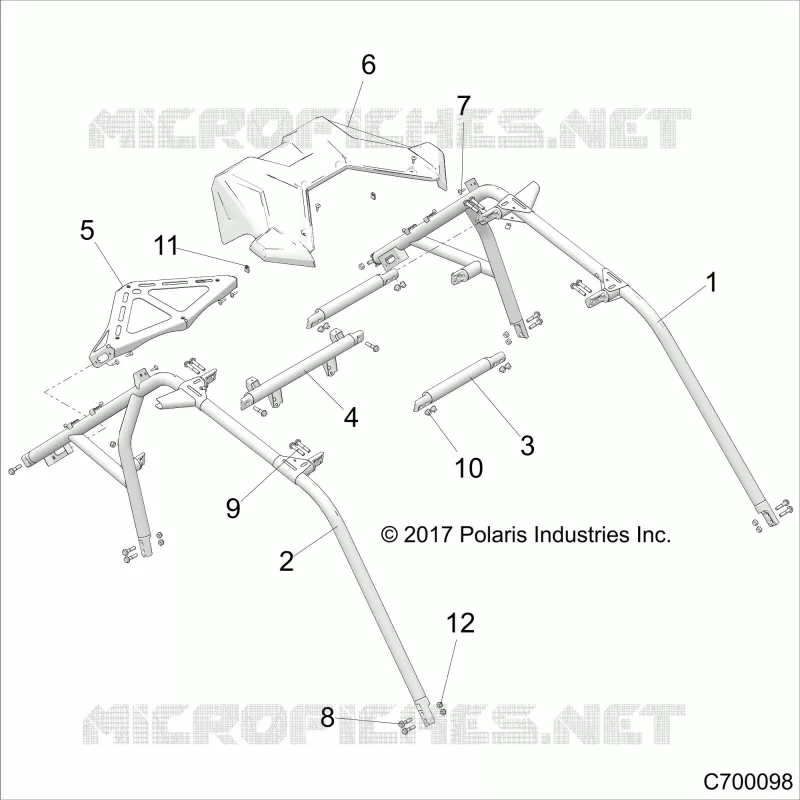

Find the detailed CHASSIS, CAB POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
