Engine displacement
500
2
Year
1999
3
Trim
SPORTSMAN 500 RSE - A99CH50AC
4
Parts Catalog
FRAME
5
Parts Diagram
Parts Catalog
CONTROLS
by
WISHBONES
FRAME
1
2
2
3
4
4
5
5
6
7
8
9
10
11
12
1
PIN CLEVIS
7661013
9999999
Not Available
2
PEDAL PIVOT BUSHING
5431107
$16,79 Unit Price incl. VAT
3
PIVOT TUBE
5020850
9999999
Not Available
4
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
5
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
6
SCREW
7515181
9999999
Not Available
7
BOLT
7512249
9999999
Not Available
8
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
9
SCREW
7512144
9999999
Not Available
10
PIVOT SHIFT BLK
1040494067
Not Available
11
ARM SHIFT (MACH)
5131277
Not Available
12
PIN; COTTER
7661103
9999999
Not Available

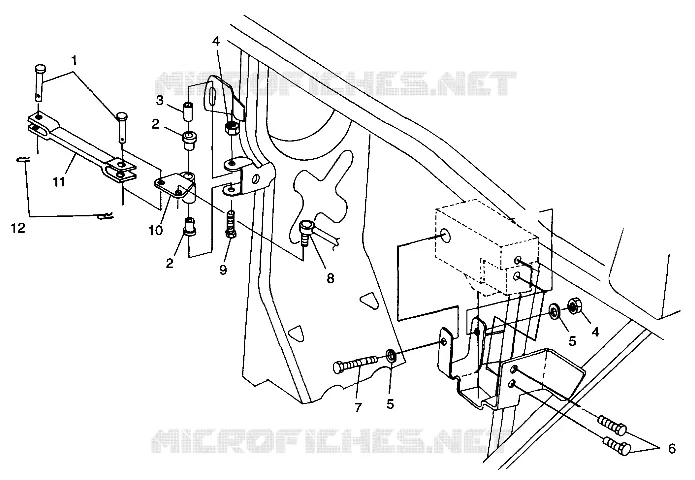

Find the detailed FRAME POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
